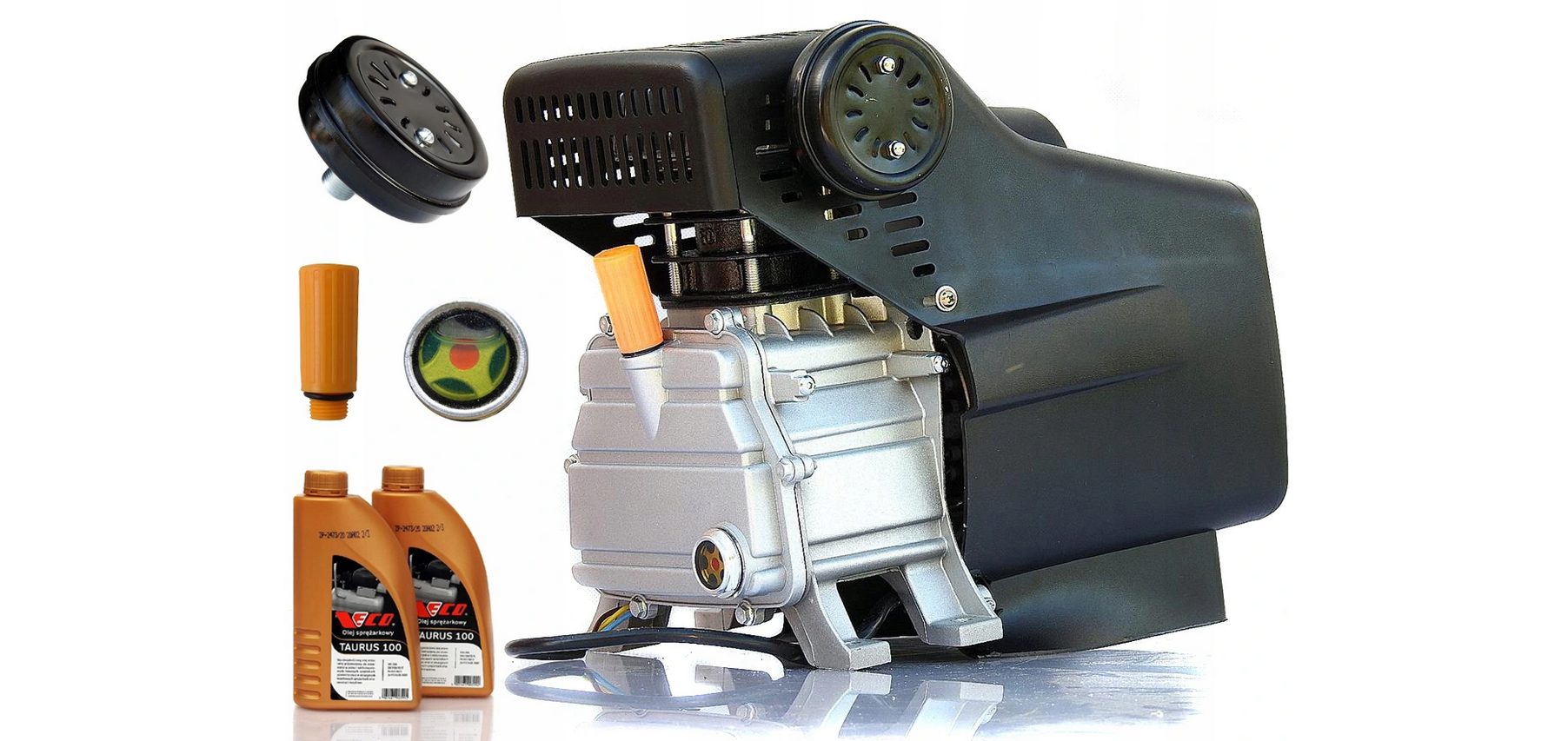

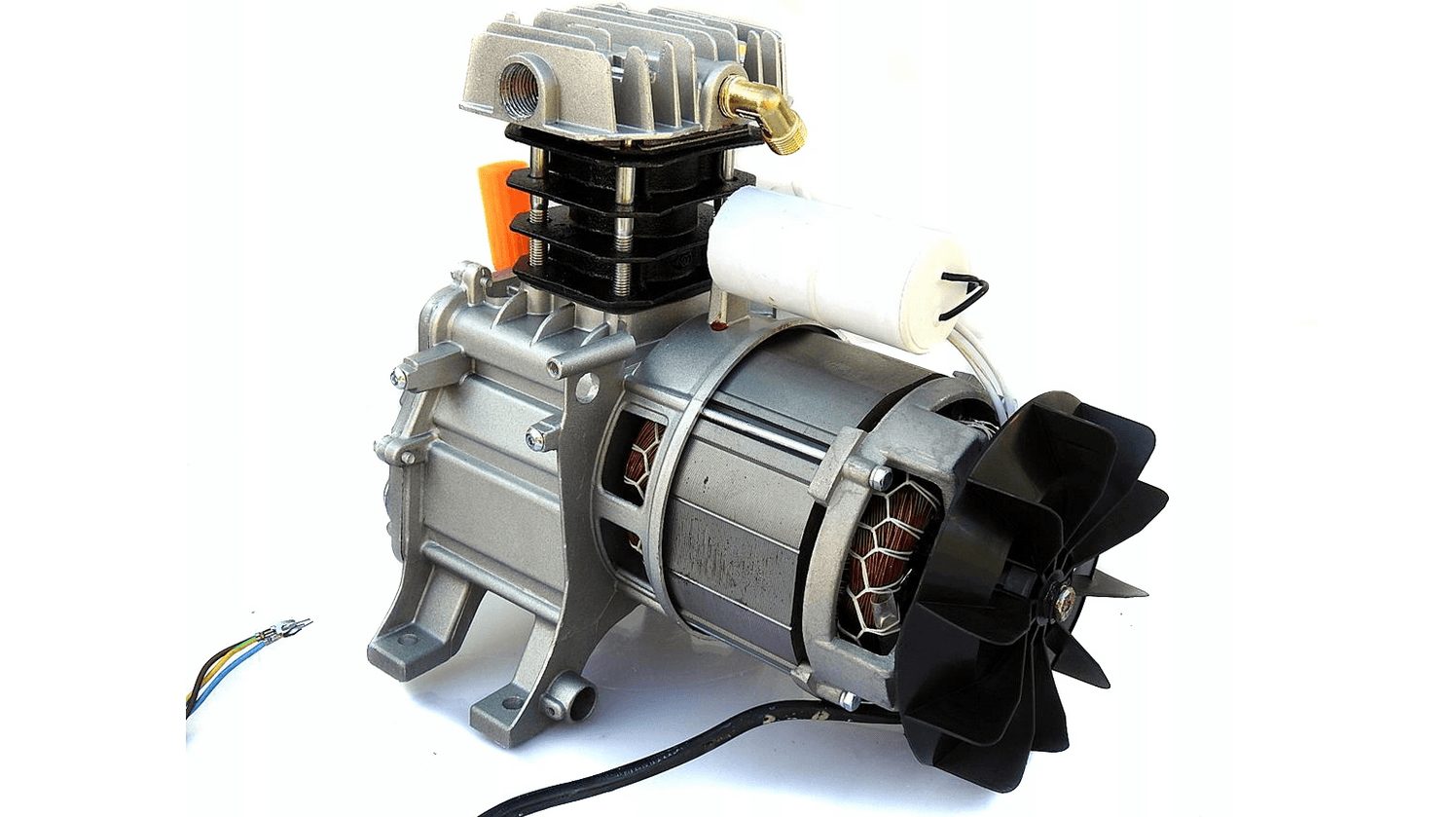

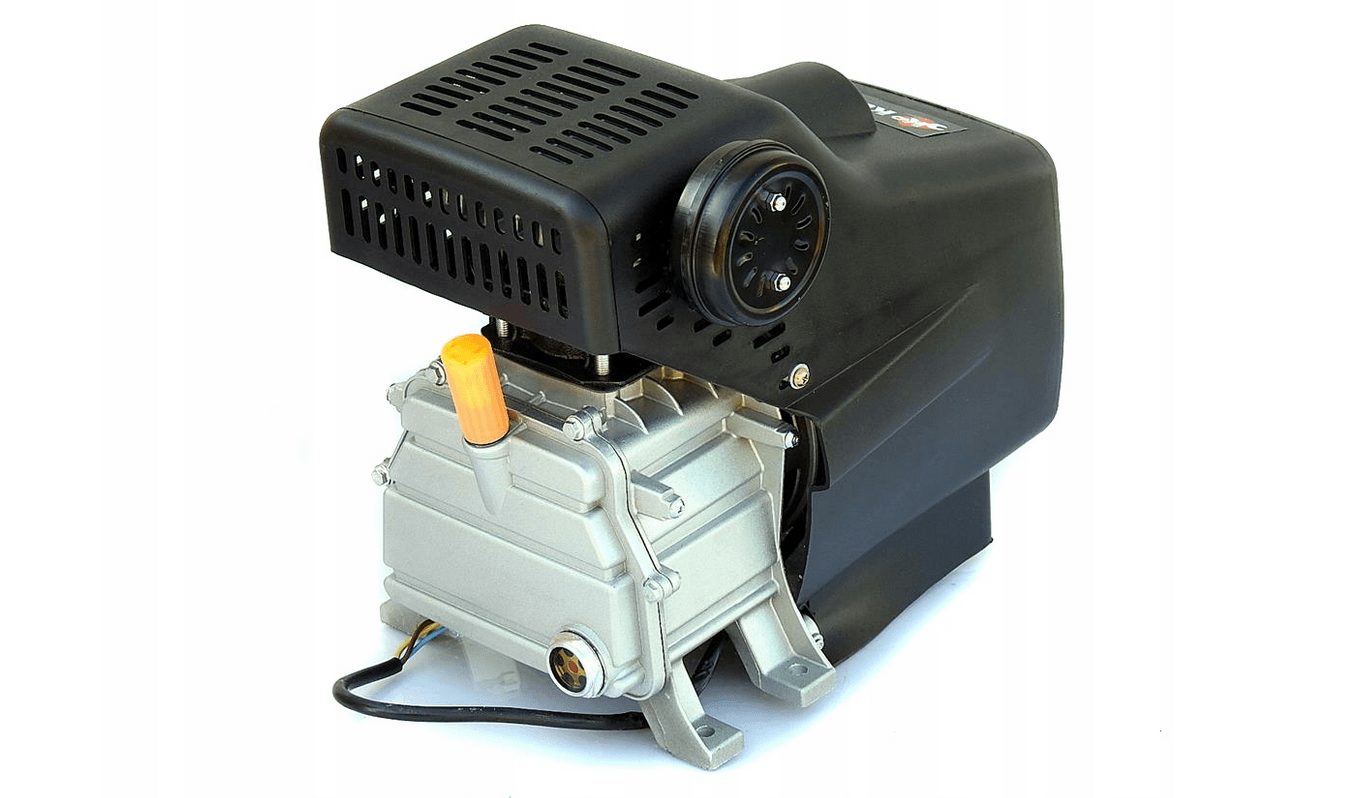

Replacement motor compressor complete with starter set 230V max 10 BAR

FREE 400ml LD 100 Oil (1 x 400ml or 2 x 200ml) - New improved design! -The valve seats have been enlarged for faster airflow -The head heatsink has been enlarged -Compression ratio increased to 10 BAR -Increased diameter of the cooling turbine -Oil and splash lubrication -3 ring pistons The compressor is single-phase, air-cooled and oil-lubricated

Product features

• FREE 400ml LD 100 Oil (1 x 400ml or 2 x 200ml) - New improved design! -The valve seats have been enlarged for faster airflow -The head heatsink has been enlarged -Compression ratio increased to 10 BAR -Increased diameter of the cooling turbine -Oil and splash lubrication -3 ring pistons The compressor is single-phase, air-cooled and oil-lubricated
• Theoretical output 270 l/min TECHNICAL DATA: -max
• Suction power: 270 L-min - maximum working capacity: 140 L-min - power supply: 230 V Compressor nominal speed: 2800 rpm Motor power: 2.5 kW (2500 watts) Recommended displacement: from 20 to 80 L Maximum pressure: 10 bar Weight: approx. 15 kg Piston diameter: 1 x 47 mm Oil sump content: approx. 0.4 liters Waste oil: LD-100-Kompressor 1 change after 5 hours, then every 50 hours Lubrication: Spray Cylinder: Cast iron Correct oil level: Glass panes covered 3/4 of the way Check the oil level before each start-up
• Top up if necessary
• DANGER! When you install the compressor on the cylinder, be sure to also install an end baffle that vents air from the system when the compressor is off
• To do this, connect the check valve to the line on the pressure switch. (to be adopted from your old compressor) New, improved three-ring piston: better heat transfer (heat dissipation) from the piston to the cylinder, which has an even better effect on the life of the compressor
• Sealing, i.e. prevents oil from penetrating from the oil chamber into the cylinder!!
