Aluprof YYGL45S 20/17 cable motor roller shutter motor roller shutter motor

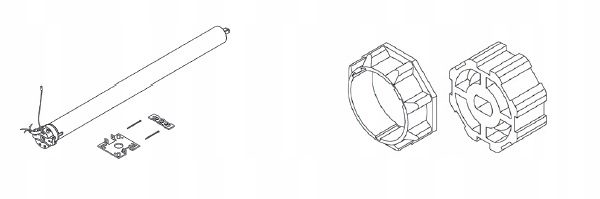

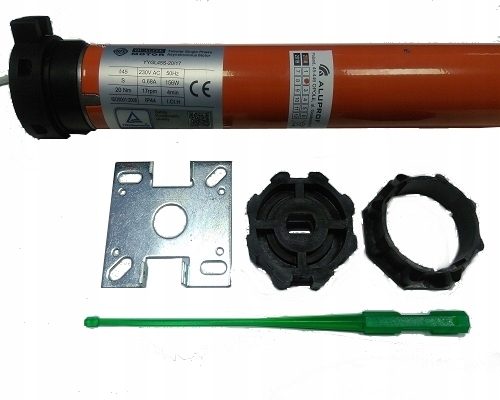

20 17NM YYGL45S tubular motor cylinder with accessories for octagonal tube with a diameter of 60mm Suitable for outdoor roller shutters with PA39-Rohr fi60. Armor and SW Minimum blind width: Fixing system: 71.5 cm (OPOTERM SKT) - Concealed system: 70.5 cm (INTEGRO SP-E, ADAPTIVE SK, SKP, SKO-P) The motor is controlled by a key and can be used with a flush-mounted controller radio or WiFi, available in our auctions. It has mechanical limit switches that can be continuously adjusted using a rotary knob (included). Would you like to replace the old motor of your blinds or convert the lifting system from manual to electric? We present a ready-made set containing all the necessary elements for assembling the actuator in the cassette. The maximum load capacity of the motor is 42 kg, which is approximately 8 m2. Adapted to the octagonal tube with a diameter of 60 mm. The biggest advantages Robustness and reliability - Quiet operation of the actuator - Mechanically adjusted limit switches - Very long power cable up to 2 meters - Complete, ready-to-install kit - Recommended by installers Make all connections only when the power is switched off 1- blue (N neutral conductor) 2- yellow/green (PE protection) 3- brown (clockwise) 4- black (counterclockwise) Set contains: drive adapter and driver for fi60-Achtkantrohr-Montagehalterung locking pins Rotary knob for adjusting the end positions Packaging Technical data Total cylinder length 473 mm Cable length 2 m Speed / working time 17 min-1 / 4 min Torque 20 Nm Power consumption 156 W Supply voltage 230 V AC Frequency 50 Hz Protection class IP44.
