Aluprof DM35E Motor 10/17 drive for external roller shutters with overload roller shutter motor
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information

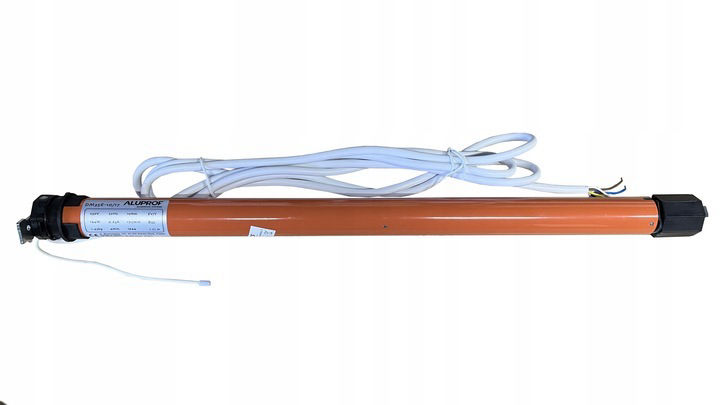

Aluprof DM35E Motor 10/17 drive for external roller shutters with overload, radio
Also marked DM35EV/Y. Aluprof DM35E 10/17 Motor: Adapted to the FI 40 octagonal tube. It also has obstacle detection, which allows you to protect both the motor and the roller shutter box and the armor from damage. The motor stops when excessive resistance is detected and returns to the preset position. Radio remote control via _. controllable. Electronically adjustable limit switches via a bell switch. Limit switches can be set in automatic mode (shackle locks required) or in manual mode via the remote control. Adjustable sensitivity of overload detection, has up to 3 modes. Overload detection _ as well as obstacle detection and icing detection. It offers excellent protection against damage to your blinds. Unlike traditional motors, the Aluprof DM35E prevents the actuator from continuing to rotate after encountering an obstacle or resistance. This could destroy the motor, break the hangers and scratch the blind's armor. Attention: In order to be able to use all functions of the drive, the use of clothes hanger locks and bottom rail stops is required.
Technical data

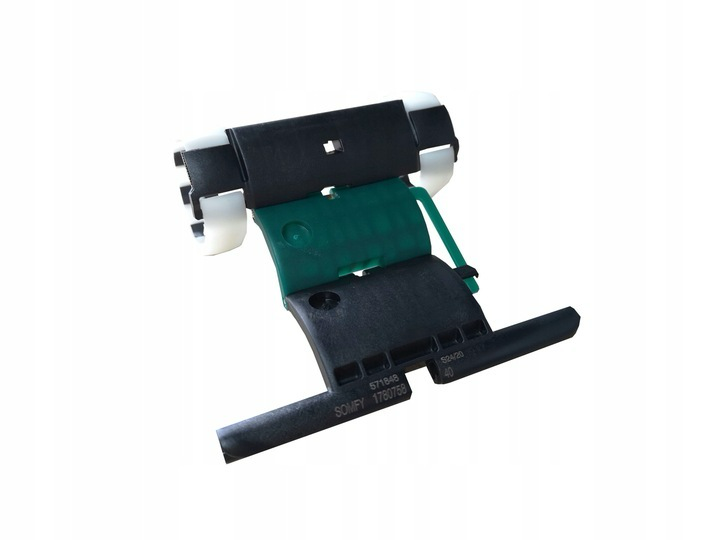

– Total cylinder length 593 mm, - Cable length: 2 m - Number of revolutions per minute: 17 - Working time: up to 4 minutes - Torque: 10 Nm - Power consumption: 198 W - Supply voltage: 230 V AC - Frequency: 50 Hz. The set contains all the necessary accessories for mounting the motor in the cassette: drive adapter and driver for fi40-Achtkantrohr, mounting bracket, locking pins. PackagingLogin
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-19397
- Brand
- Aluprof
- Weight
- 6 kg
