Tubular heating cable complete with thermostat 8m

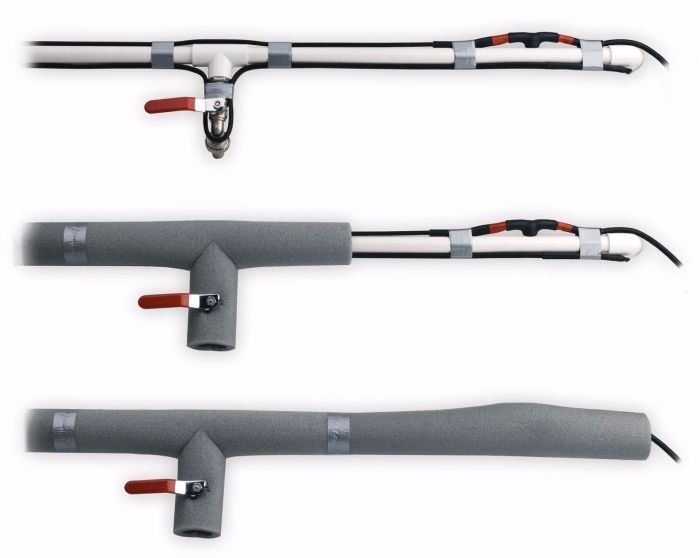

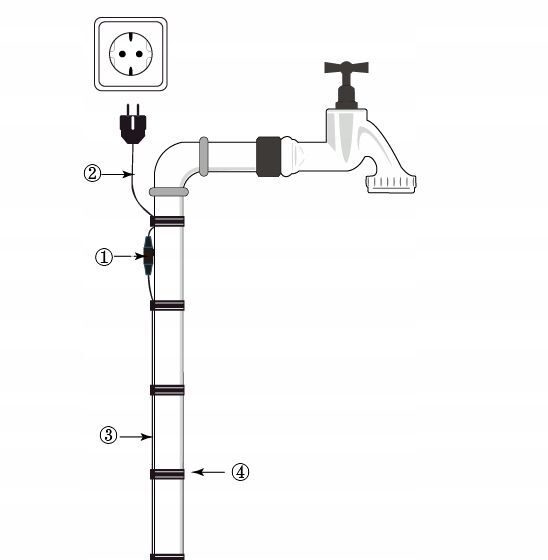

Automatic set to protect pipe installations from freezing Mission Air® NO FROST 8m/ 128W The built-in thermostat switches the cable on at temperatures below +3 °C and off at temperatures above +15 °C Product features Automatic set to protect pipe installations from freezing Mission Air® NO FROST 8m/ 128W The built-in thermostat switches the cable on at temperatures below +3 °C and off at temperatures above +15 °C Easy to install! No Frost is an automatic kit to protect pipes from freezing The set consists of a single-sided heating cable, an automatic thermal switch and a power cable with a hermetic plug The Mission Air® set can be installed on steel, copper and plastic pipes, provided that the material from which the pipe is made has a certificate of resistance for operation up to +90 ° C Examples of use: Protection of pipes, gutters, valves, meters and drainage wells from the Freezing Protecting the roofline from snow and ice buildup Maintaining the temperature of the fluid in the tank/pipe (preventing blood clots) HOW DO I INSTALL? First, unroll the heating cable The spiral cable must not be connected to the power source If the cable becomes inflexible due to the low temperature, loosen it carefully without pulling and then connect it to the power source for a few minutes The area to be protected around the pipe must be accessible and free of obstacles Place the thermostat with the round black contact surface on the coldest part of the pipe and secure it with electrical tape For the entire installation to work properly, the thermostat must adhere to the pipe surface Then place the entire cable on the pipe and fix it with insulating tape at a distance of 30 to 60 cm. After installing the cable, it is imperative to insulate the protected section with thermal insulation. After completing the necessary assembly work, simply insert the plug into the socket and the No Frost set will automatically monitor the protected section of the pipeline. When installing the cable in a gutter, use special mounting hooks that prevent the cable from being laid directly in the gutter Diagram: Thermostat power cable Heating cable Insulating tape TECHNICAL DATA Specific power − 16 W/m Total power − 128 W Power supply: 230V Length − 8 m Heating cable + 2 m cable with plug Cable thickness − 8.0 mm Power cable length − 2 m with plug Heating element - Multi-wire temperature control device − Thermostat protection class: IPX8 Switching on below +3˚C − Switching off above +15˚C Installation under thermal insulation
