Solar system complete solar package converter set 2000W with AGM storage

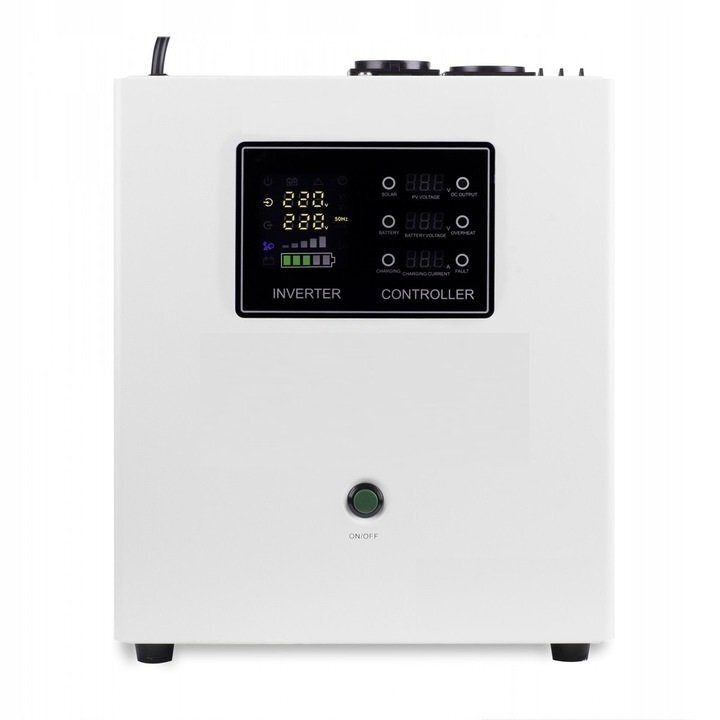

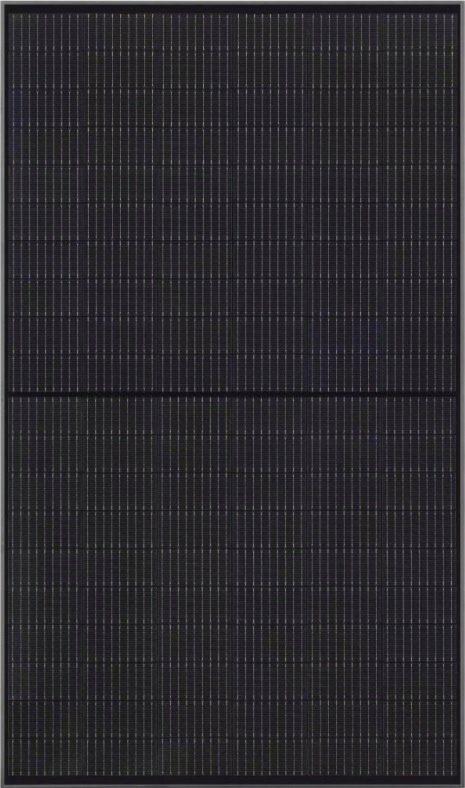

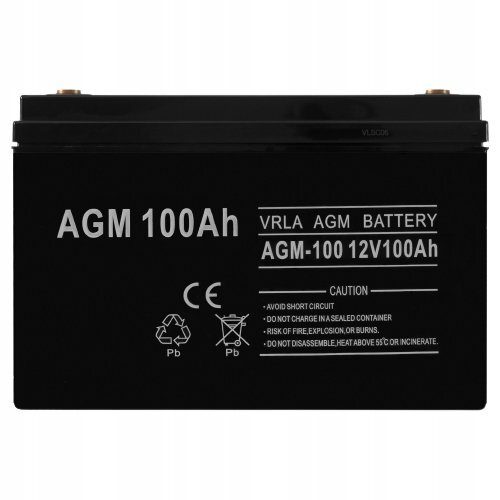

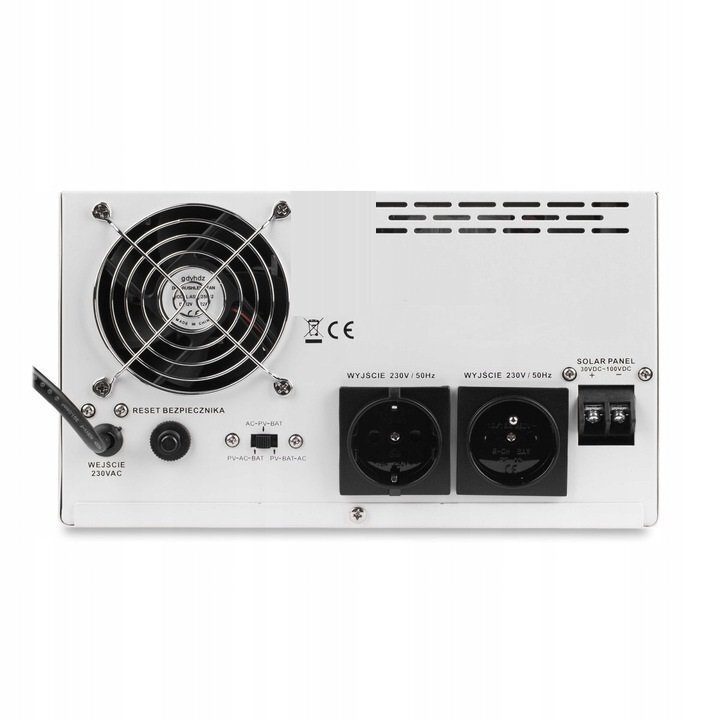

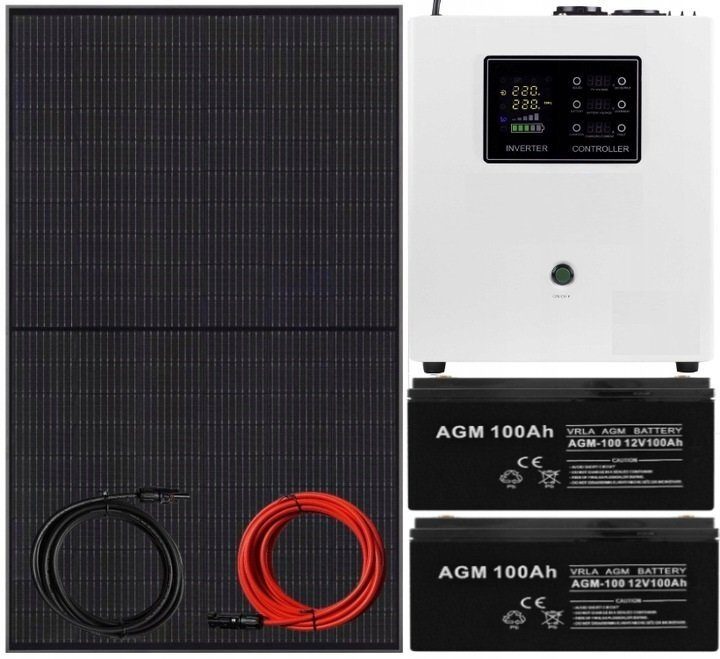

SOLAR PANEL SET 2000W 200Ah CONVERTER 230V The set allows the use of a 230V power supply with a peak power of 2000W / continuous power of 1400W Product features SOLAR PANEL SET 2000W 200Ah CONVERTER 230V The set allows the use of a 230V power supply with a peak power of 2000W / continuous output of 1400W A photovoltaic set based on the SinusPRO-2000S 24V 2000VA SOLAR solar inverter with integrated MPPT 40A charge controller together with a FULL BLACK MONO SOLAR PANEL, x2 100 Ah batteries, cables and connectors for connection thanks to the sine wave voltage converter 24V / 230V AND 200Ah BATTERIES allow you to power devices such as: televisions, refrigerators, cool boxes, power tools, water pumps, compressors, transformer power supplies, power supplies for laptops, telephones, central heating stoves, central heating pumps, office equipment - printers, scanners, computers In the set you will receive: 1 solar panel 355 W FULL BLACK MONO 10.68A 39.80 V 176.5 cm × 104.8 cm × 3.5 cm Possible expansion with additional panels to get more charging power. 2 UPS 2000S SOLAR CONVERTER (24V / 230V / 2000W) with regulator MPPT 40A 3. 2x VOLT AGM 100Ah GEL BATTERY MAINTENANCE-FREE 4. 4 mm2 MC4 solar cable for connecting a PV module with a length of 3m UPS SINUSPRO-2000S (24V / 230V / 2000 W) SPECIFICATIONS: Total power (instantaneous): 2000 VA Rated power (continuous): 1400 W Cooperation with solar panels: Yes (built-in solar regulator) Input voltage range (PV): 25 VDC - 100 VDC Solar regulator: 40 A MPPT AVR voltage stabilizer: Yes | 140 - 275 VAC charging current (mains): 20 A charging voltage (mains): 27.6V ± 0.5V | BUILT-IN CHARGER ON/OFF SWITCH Built-in battery: No Battery voltage(s): 24 VDC Cooling: Heat sink + fan Working temperature: 0-40 degrees Celsius Dimensions [mm]: 285 x 140 x 355 Weight [kg]: 10.3 Permissible supply voltage range: Switching to battery supply occurs when the mains voltage is less than 160 V (+ - 5 V) or more than 260 V (+ -). 5 V) Mains frequency: 45 Hz ~ 65 Hz Output voltage range: Mains voltage regulator: 204 - 240 V, UPS: 230 V (+ - 3%) The power supply is immediately interrupted Overload protection (mains supply): The device issues an overload warning until the fuses trip Operating humidity: 10% RH ~ 90% RH The Sinus PRO series has a solid and elegant housing as well as a direct input to solar panels and a priority switch for solar/grid operation The updated version of the sinusPRO 2000S has a button that allows you to turn the charger off or on This allows us to turn off the charging and leave the BYPASS function active In solar mode and with the mains charger turned off, after the battery is discharged (at night when not charging), the power supply switches to BYPASS mode without charging the battery Basic information: pure sinusoidal output signal, thanks to which the power supply is compatible with, among others: refrigerators, freezers, televisions, fluorescent lamps, fluorescent lamps, etc. Construction based on an efficient toroidal transformer - dual control of the main processor operation - MPPT 40A solar charger (regulator) with very high efficiency - wide input frequency range, automatic detection 50/60 Hz - intelligent switching between power supply priorities for better efficiency and lower energy losses - Comprehensive protection and alarm functions: overload, short circuit, over- and under-voltage and temperature protection - an easy-to-use display that provides an overview of the most important functions. The feature that distinguishes sine wave converters from classic simple AC/DC converters is the generation of an alternating voltage with a sinusoidal waveform, identical to that in the power grid. This makes it possible to power devices equipped with electric motors and transformers, such as power tools, pumps and household appliances. Simple, cheap converters actually produce a square wave voltage, sometimes incorrectly called a “modified sine wave.” This voltage is not suitable for supplying inductive or capacitive devices and can damage them. Solar module specifications: Maximum power (Pmax): 355 Wp Maximum power voltage (Vmp): 33.24 V Maximum power (Imp): 10.68 A Open circuit voltage (Voc): 39.80 V Short circuit current (Isc): 11.15 A Module efficiency: 19.2% Power tolerance: 0 ~ + 5 W Maximum rated fuse current: 20 A Number of cells: 120 (6x20) Class II Panel dimensions: 176.5 cm × 104.8 cm × 3.5 cm. Weight: 19.5kg. Frame material: anodized aluminum alloy BATTERY (with a depth of discharge of up to 50% approx. 650 work cycles)! LIFESPAN - 8-10 years (BUFFER WORK) Cyclic operation - The battery is the primary power source for the device and recharges after being discharged. Eine 325-W-Solarbatterie will easily charge eine 100-Ah-Batterie in just over 6 hours of sunshine after fully discharged
