Solar system complete package solar 5000W complete package 5 KW 400Ah CONVERTER 230V

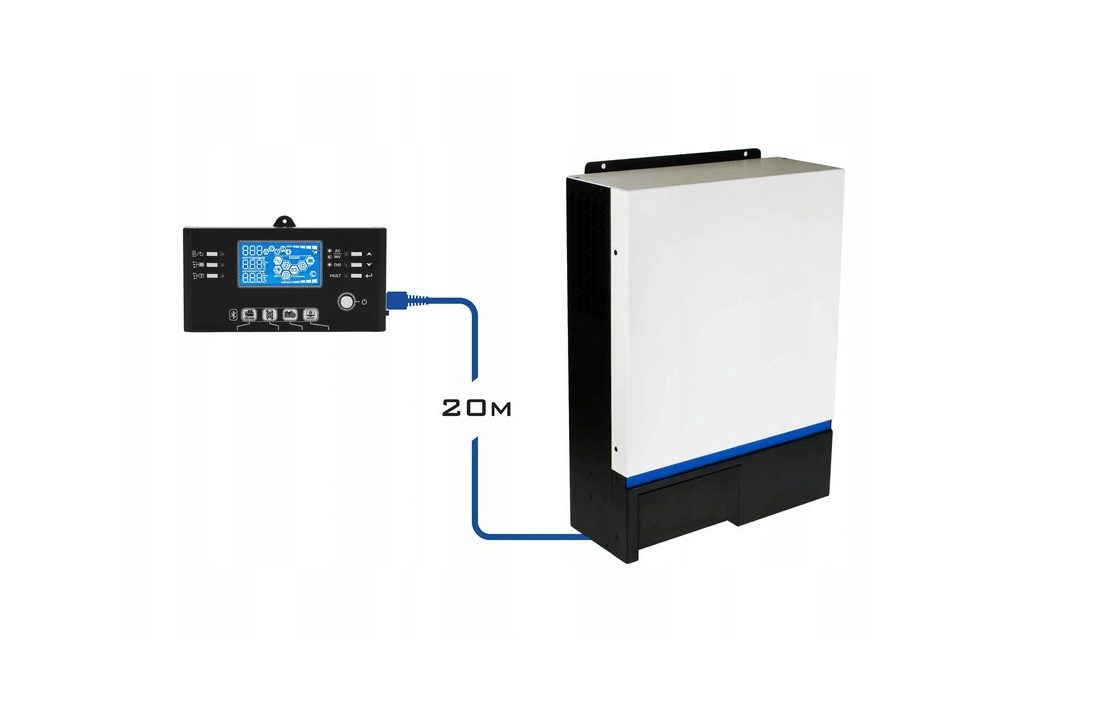

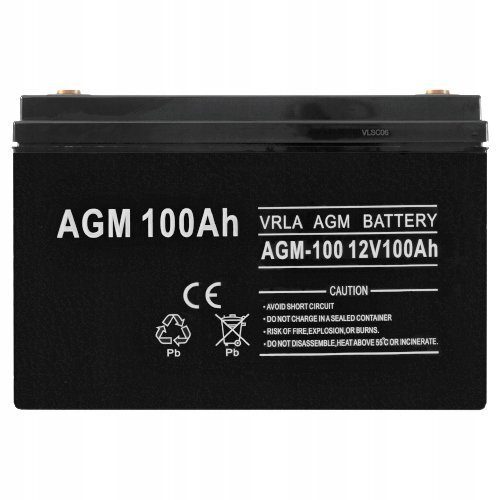

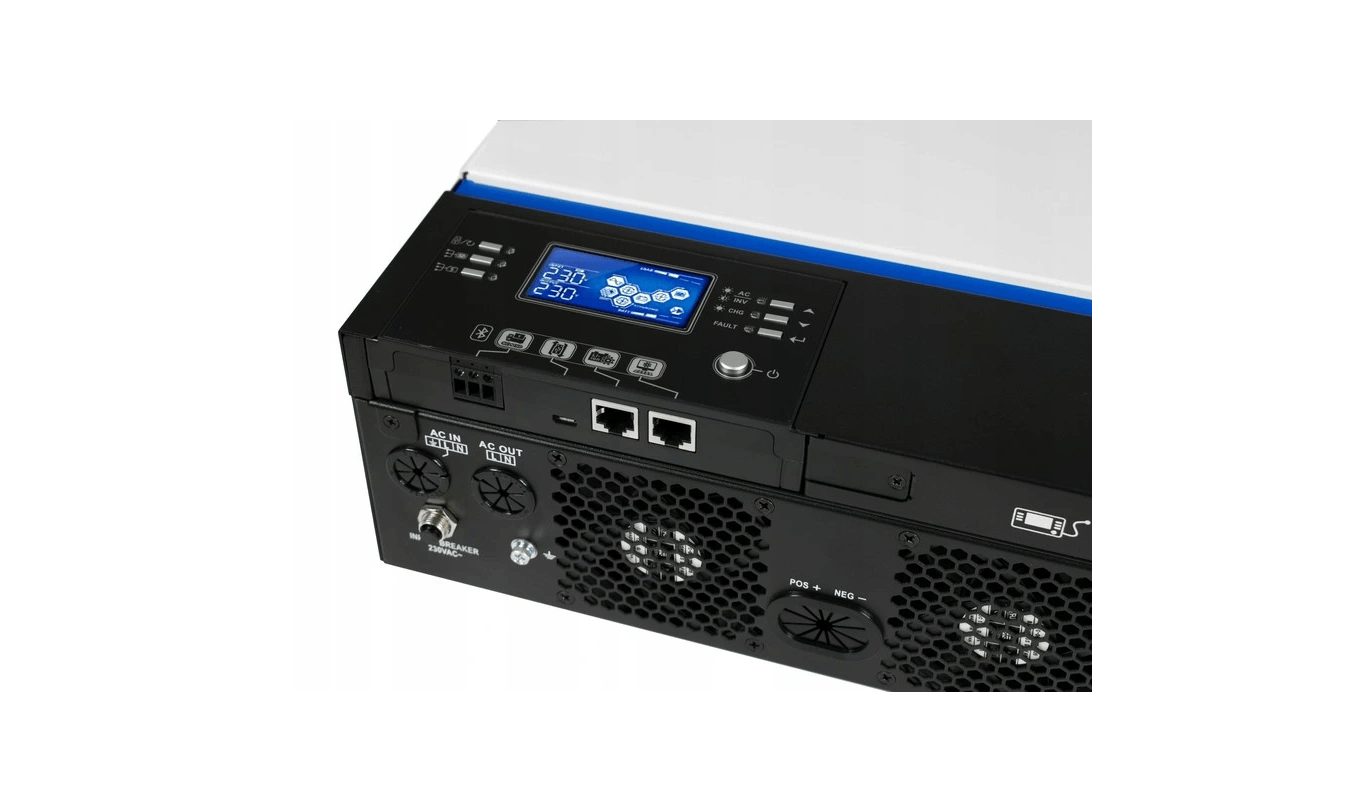

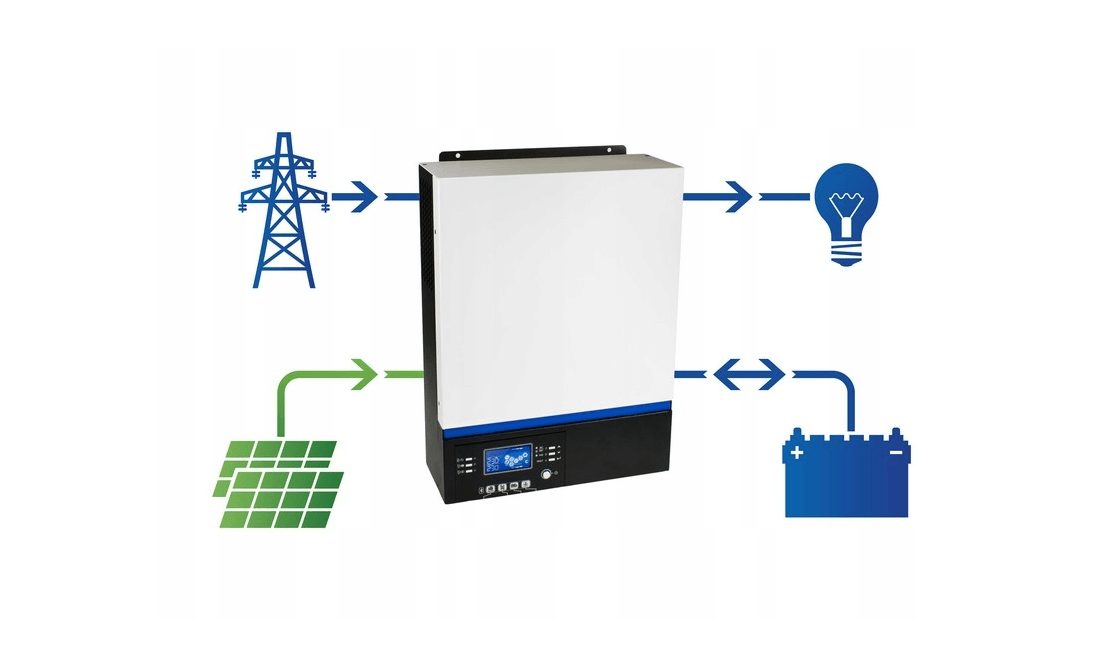

SOLAR MODULE SET 5000 W 400 Ah CONVERTER 230 V The proposed set allows the use of einer 230-V-Stromversorgung with a total power of 3000 W PERMANENT / 6000 W IMMEDIATELY 6000 W IMMEDIATELY A photovoltaic set based on an ESB 6kW / 3kW-24V off-grid solar inverter with integrated MPPT 80A charge controller together with 355W FULL BLACK SOLAR PANELS, x2 100Ah batteries, cables and terminals for connection thanks to the sine wave voltage converter 24V / 230V AND 200Ah BATTERIES allow you to power devices such as: televisions, refrigerators, cool boxes, power tools, water pumps, compressors, transformer power supplies, laptop power supplies, telephones, central heating furnaces, central heating pumps, office equipment - printers, scanners, computers WE RECOMMEND THAT THE KIT BE CONNECTED BY A PROFESSIONAL! In the set you will receive: 1. x7 355W FULL BLACK solar modules 355W solar panel FULL BLACK MONO HALFCUT 10.68A 39.80V 176.5cm × 104.8cm × 3.5cm The set can be expanded to 16 PANELS / 2 sides with 8 panels each 2 ESB 6kW / 3kW-24V Off-grid solar system inverter hybrid 3. x2 AGM 100Ah BATTERY MAINTENANCE-FREE. 4 Ready-to-connect cabling from 10m length ESB 6kW-24 3000W/6000W off-grid hybrid solar inverter SOLAR PANEL SET 5000W 400Ah CONVERTER 230V INPUT PARAMETERS: Nominal input voltage: 230VAC Input voltage range: 90-280VAC Operating voltage frequency: 50Hz/60Hz (automatic detection) OUTPUT PARAMETERS: Output voltage: 230 VAC Peak power: 6000 VA Continuous power: 3000 W Efficiency: 93% Switching time: 15 ms Output voltage waveform: Pure sine wave BATTERY: Battery voltage: 24 VDC Battery charging voltage: 27 VDC Battery overcharge protection: 33 VDC LANDING: Charging type: MPPT Maximum PV module power: 4000W MPPT operating voltage range: 120-450VDC Maximum PV circuit voltage: 500VDC Maximum PV module charging current: 80A Maximum grid charging current: 60A Maximum charging current: 80A Dimensions D x W x H [mm]: 115 x 300 x 400 Weight [kg]: 9 Working temperature: -10 ° C ~ + 50 ° C Humidity: 5% -95% relative humidity The output stable sinusoidal supply voltage of 230 V (220 V, 240 V) is ideal for supplying all electrical energy receivers and the built-in starting overload support enables the supply of receivers with high starting current, such as compressors in refrigerators and gensets. The inverter is configured and controlled via a intuitive control panel that can be installed in a suitable location up to 20 m from the inverter A novelty in the ESB series inverters is also the possibility of controlling the inverter via a smartphone and a mobile application that replaces the control panel Technical data of the solar module: Maximum power (Pmax): 355 Wp Maximum power voltage (Vmp): 33.24 V Maximum power (Imp): 10.68 A Open-circuit voltage (Voc): 39.80V Short Circuit Current (Isc): 11.15A Module Efficiency: 19.2% Power Tolerance: 0~+5W Maximum Fuse Current Rating: 20A Number of Cells: 120 (6x20) Class II Panel Dimensions: 176.5cm × 104.8cm × 3.5cm Weight: 19.5kg Frame Material: Anodized Aluminum Alloy 2 hours after complete Discharging in summer in full sun. x2 SOLAR BATTERY (with a depth of discharge of up to 50% they have approx. 650 working cycles)! LIFESPAN - 8-10 years Cyclic operation - The battery is the primary power source for the device and recharges after discharging If you are unsure, please discuss with your power supplier/electrician whether this product is suitable for your needs
