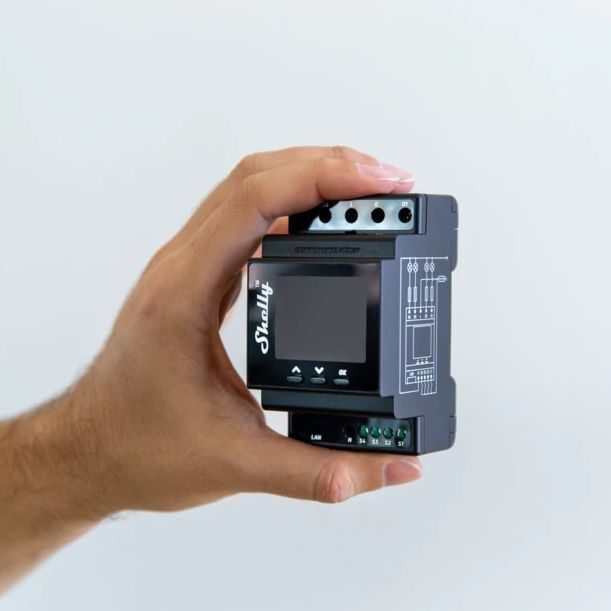

Shelly Pro 4PM V2 - 4 Channel WIFI/LAN/BL Relay with Current Measurement for DIN Rail, Machine Wall Distributor, Electrical Distribution Board, Meter Cabinet Shelly Pro 16

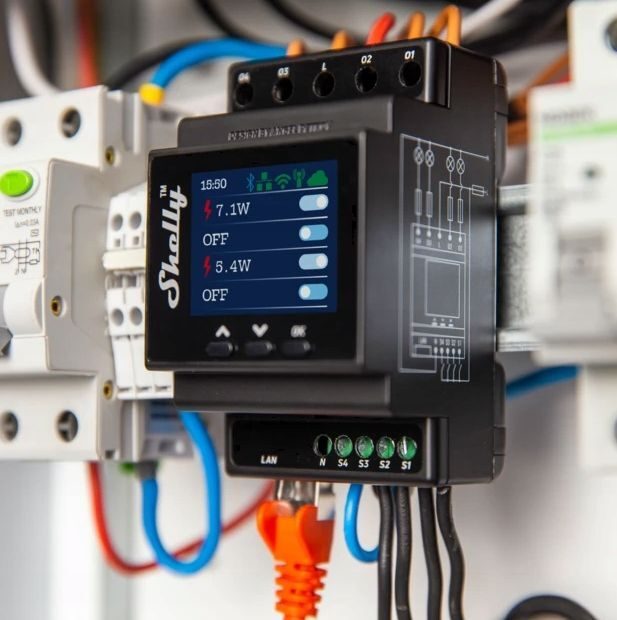

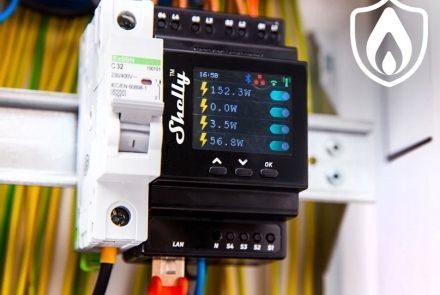

The perfect solution for new buildings and business solutions Professional 4-channel DIN rail relay with power measurement, LAN connection, WLAN and Bluetooth 4 outputs with 16A each. Total device maximum 40 A. Accurate power measurement. Overload and load overvoltage protection. Can be mounted on a DIN rail. 1.8 inch color screen with navigation buttons. 1-phase control. Easy control with the Shelly app, various protocols and platforms as well as the voice assistant. Note: V2 is a modification of V1. The V2 differs from the V1 version by the screw terminals on the top. This listing is for V2. The best solution for new residential and commercial developments, Shelly Pro 4PM is a single phase 4 channel relay that supports up to 16A per channel with a total device capacity of 40A. Shelly Pro 4PM is equipped with four integrated precision power meters that allow you to control and monitor power consumption for each channel separately. Equipped with LAN, WiFi and Bluetooth connectivity, it enables a safer and more reliable connection. Use scripting functions to set custom automation scenes based on various events, weather forecasts, wind forecasts, etc. Shelly Pro is equipped with temperature, overload and surge protection. The Shelly Pro series is designed to be mounted in a fuse box (DIN). Enables complete intelligent automation without additional cables and cabling. The Shelly Pro line is ideal for homes, offices, shops, businesses and production facilities as well as new buildings. Functionalities LAN, Wi-Fi and Bluetooth connectivity – LAN connection offers high security and reliability. Simultaneous use of WLAN and LAN, also as a backup if necessary. 4 channels, 16A each - Shelly Pro 4PM has a total output of 40A. Current Monitoring - Shelly Pro 4PM provides precise monitoring of power consumption. Wide voltage range supported - use it to control a variety of devices. Enhanced security and protection – Advanced security features and TLS 1.2 support for a variety of secure cloud and on-premises network integrations. Scripting Features – Shelly Pro 4PM fully supports mjS scripts, allowing you to create additional features and functionality. Device Control and Monitoring Predict monthly costs and plan your expenses better! Automate your restaurant's electrical appliances and track their energy consumption wherever you are. Shelly Pro 4PM will inform you if you forget the device and leave it running outside restaurant opening hours, and fordert will tell you to turn it off to avoid wasting power. Additionally, you can set smart schedules and ask Shelly to turn off any electrical appliances that are not in use at night and turn them back on just before the kitchen opens. Temperature Control for Better Productivity Research shows that employee productivity decreases when there are temperature fluctuations in the office. Cooling and heating systems in a building should keep pace with the dynamic temperature changes in different seasons. Connect Shelly Pro 4PM to motorized valves in your water distribution box and efficiently control your heating and cooling. Intelligent planning in combination with temperature and humidity sensors as well as precise weather data ensures dynamic control of the heating system in order to achieve an optimal climate in the office space. Automating shared spaces for efficient energy use Reduce unnecessary monthly costs with Shelly's smart lighting solutions. Shelly Pro 4PM can measure and control four separate lighting circuits, allowing full control of common areas such as halls, garages and warehouses where lighting is normally always on. Now you can make them energy efficient using Shelly Pro 4PM's built-in scheduling and scripting features. To fully automate your space, add Shelly Motion2 to automatically turn on the lights when someone enters the building, and the preset smart timer turns off the lights when the building is empty. Load Separation Track how much energy your solar panels and wind turbines produce and save effortlessly by managing your consumption with Shelly Pro 4 PM. Connect Shelly Pro 4PM to your devices and use Shelly 3EM's real-time information about how much energy has been generated and consumed. If you need to save energy, Shelly Pro 4PM can automatically turn off non-essential connected devices in your home. Pro Line Features: The Shelly Pro range is equipped with temperature, overload and surge protection and is designed to be installed in a breaker box (DIN). The Shelly Pro range enables complete intelligent automation without additional cables or wires and is ideal for homes, offices, shops, factories and production facilities as well as new buildings. Communication Wi-Fi 2.4GHz Wi-Fi operation, supports Access Point (AP) and Client Mode (CM) options. Bluetooth Add devices quickly and easily via Bluetooth with the Shelly Cloud app AND the LAN connection ensures high security and reliability. Simultaneous use of WLAN and LAN as a backup if necessary. Security Temperature protection Surge protection (PM devices) Load overvoltage protection (PM devices) Trudnopalny (V-0) Features Webhooki HTTP/HTTPS Sunrise/sunset actions with offsets Weekly scheduling Custom scripts (mJs) Scene grouping Overheat protection In the event of a dangerous temperature level or a rapid rise, the device turns off the outputs and sends a notification. The internal temperature sensor measures heat every 100 ms. Overcharge protection A detected overvoltage causes the device to switch off the outputs and notify you immediately. The overcharge protection function protects the device and other electrical devices from possible damage. *The function is only available for devices that support power measurement. High voltage protection. Surge voltages can be dangerous for electrical devices and machines. To prevent damage to electrical devices, the device switches off outputs when overvoltage is detected and immediately sends a notification. *The function is only available for devices that support Trudnopalny (V-0) power measurement. All Shelly Pro components are made from fire retardant materials and maintain their construction even at high temperatures. Specifications POWER AC: 110-230V ±10%, 50/60 Hz Maximum load: up to 16A per channel with a maximum of 40A for the entire device DC: No Channels: 4 channels SUPPORTED LOAD TYPES: Resistive (bulbs, heaters) Capacitive (capacitor banks, electronic devices, motor starting capacitors) Inductive with RC attenuator /eng. RC Snubber/ (Controller for LED lighting, transformers, fans, refrigerators, air conditioners) SPECIAL FEATURES Shutter mode: No Device temperature protection: Yes Overload protection: Yes Power measurement: Yes FEATURES Webhooki HTTP/HTTPS: Tak Custom scripts (mJs): Yes Operating temperature: -20 ° C to + 40 ° C Device power consumption: < 4 W Smart On/Off: Yes Local and Remote Control: Yes Sunrise/Sunset: Yes Weekly Schedule: Yes UL Listed Option: No COMMUNICATION Wireless: Yes Wi-Fi Protocol: 802.11 b/g/n Wi-Fi Radio Frequency: 2412-2484 MHz Wi-Fi Radio Signal Power: 1mW Wi-Fi Range: up to 50 m outdoors and up to 30 m indoors (depending on Building material) Bluetooth: Accept Ethernet: Yes Shelly Pro 16
