STRONG TURA LOADING SHOVEL SET WITH FULL EURO FRAME
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information

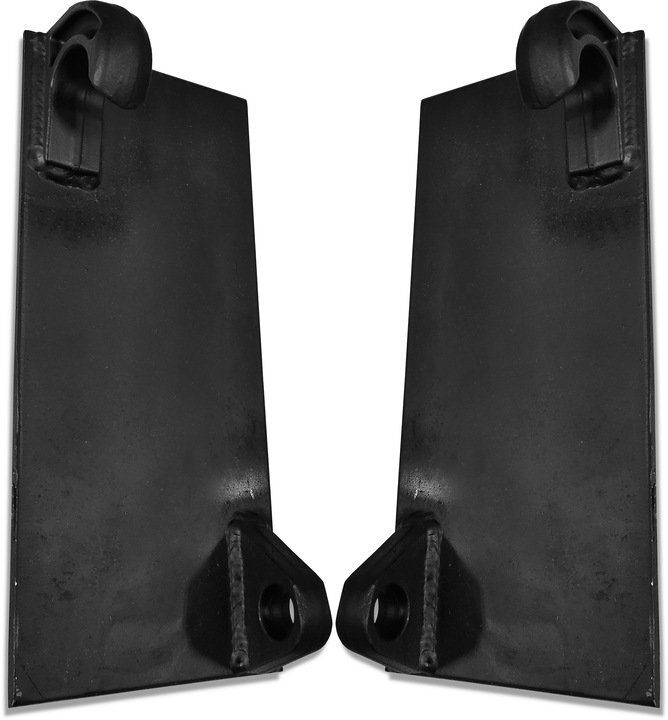

TWO COMPLETE EURO FRAMES FOR WELDING - QUICK CHANGE FRAME (EURO FRAME) It is a set of two complete plates with hooks and eyes - used for the manufacture of EURORAMEK (quick change frames) - mainly used in buckets (buckets) of TUR 1 2 3 loaders. It can be used in agriculture, horticulture, forestry, construction or general industry.
Technical data

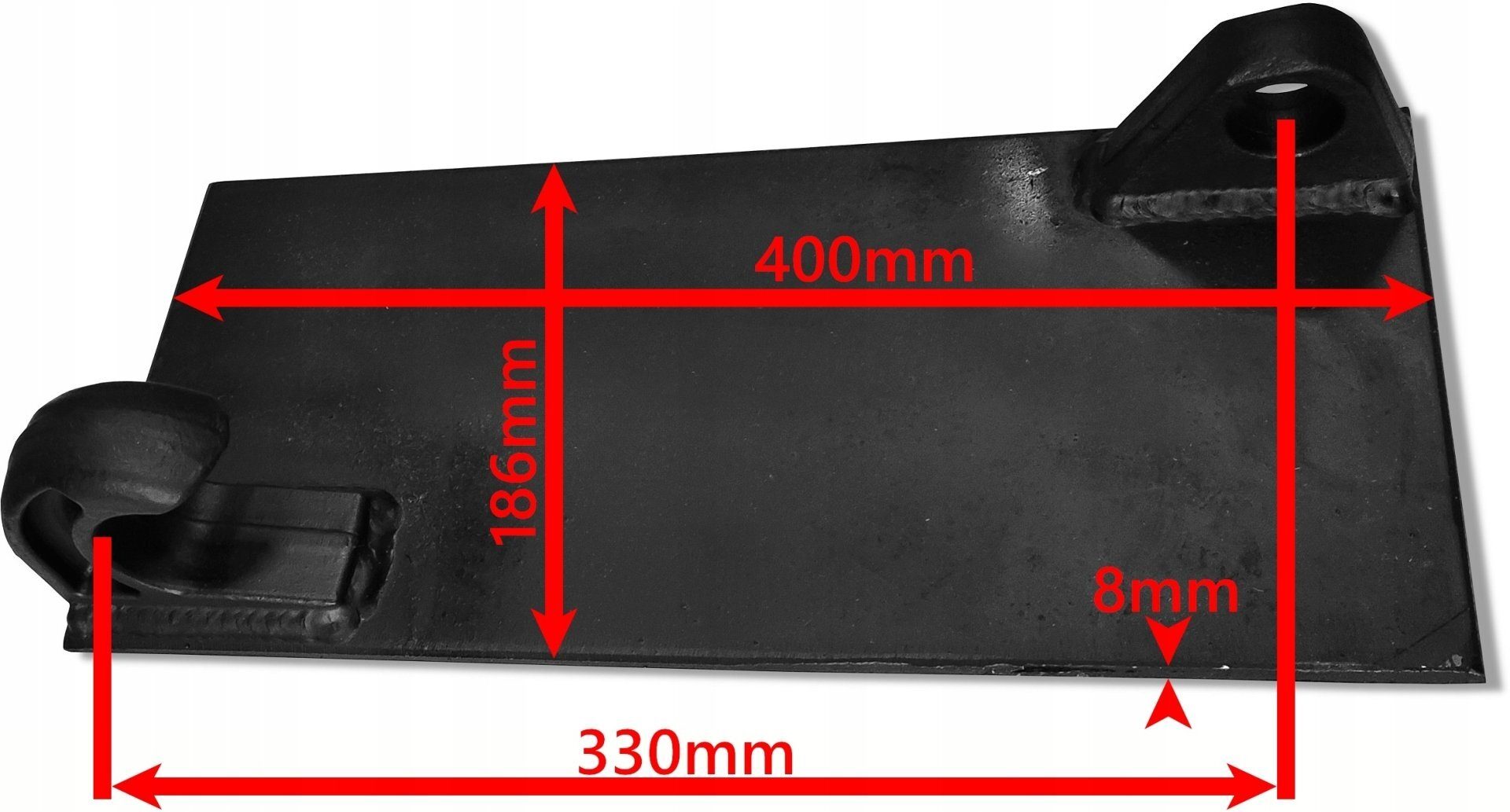

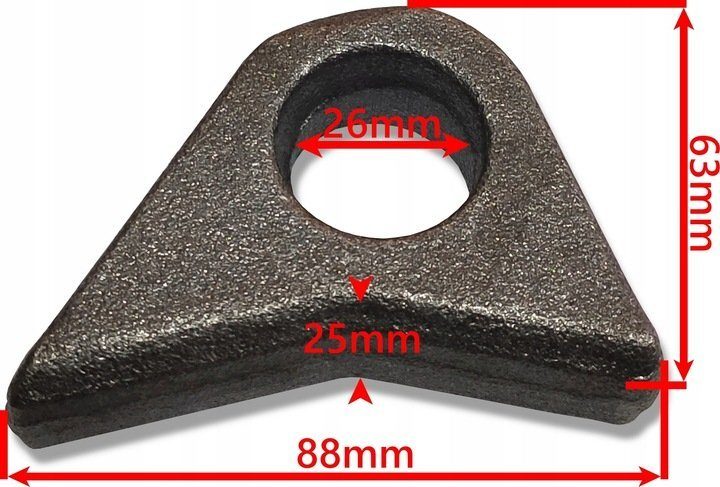

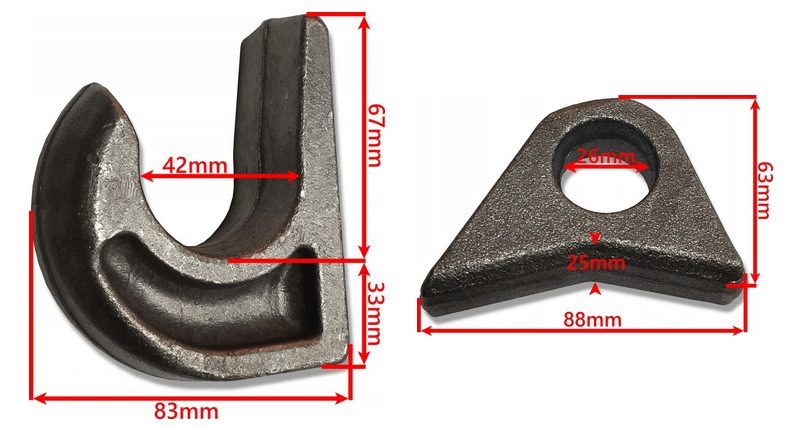

Plate dimensions 400 mm x 186 mm x 8 mm (L x W x D) Hooks for pipe/bolt diameter: 40 - 42 mm Hook thickness: 40 mm Eyelets for pin diameter: 26 mm Mesh thickness: 25 mm material strong steel All elements are WELDABLE. It should be noted that these are cast materials, which is reflected in dimensional tolerances of approx. 1 mm. 2mm.Login
3 reviews
16 June 2026 16:05
Okay
Für den Preis in Ordnung.
15 March 2025 19:11
Alles gut
Unkompliziert geliefert.
6 December 2023 09:25
Keine Beanstandung
Macht was es soll, alles gut.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-10585
- Weight
- 15 kg
