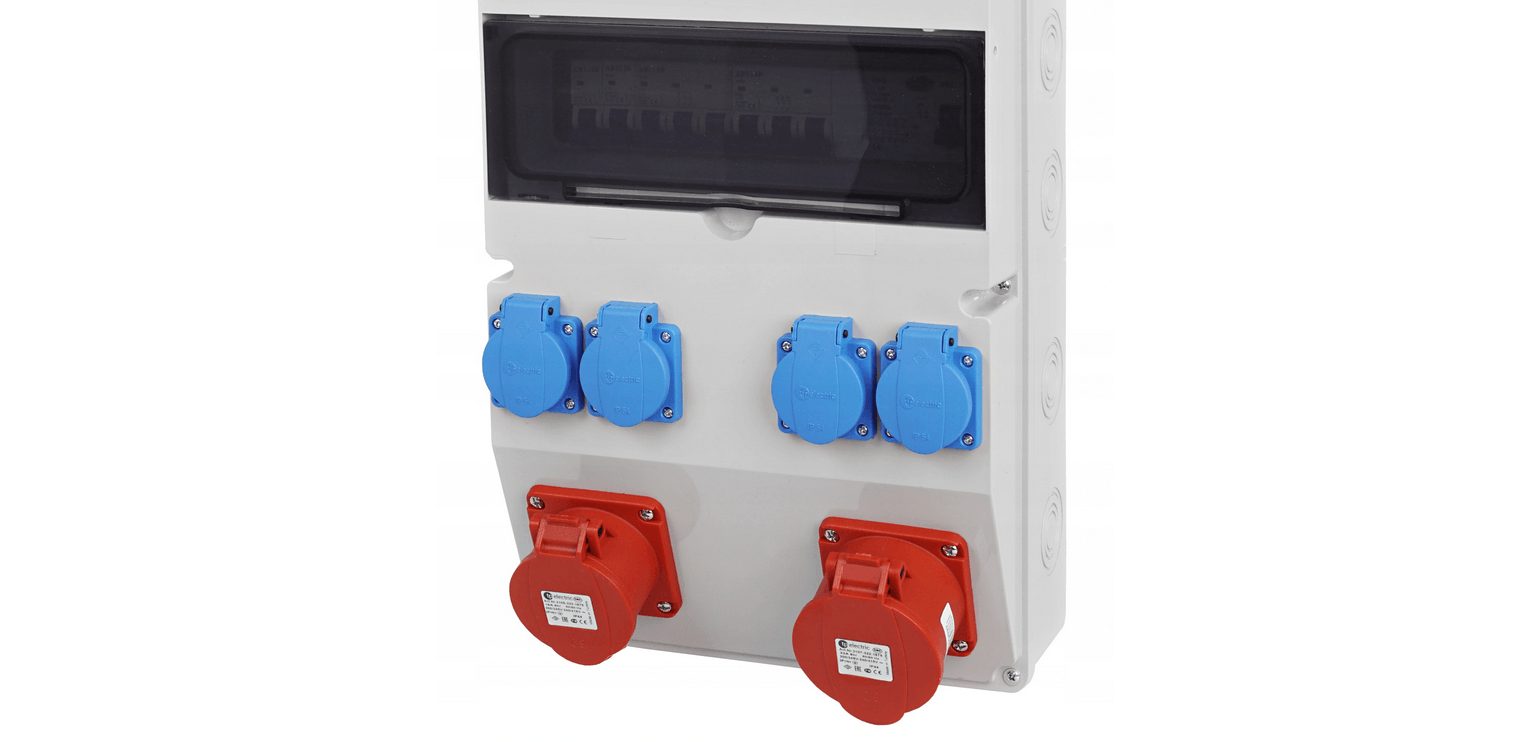

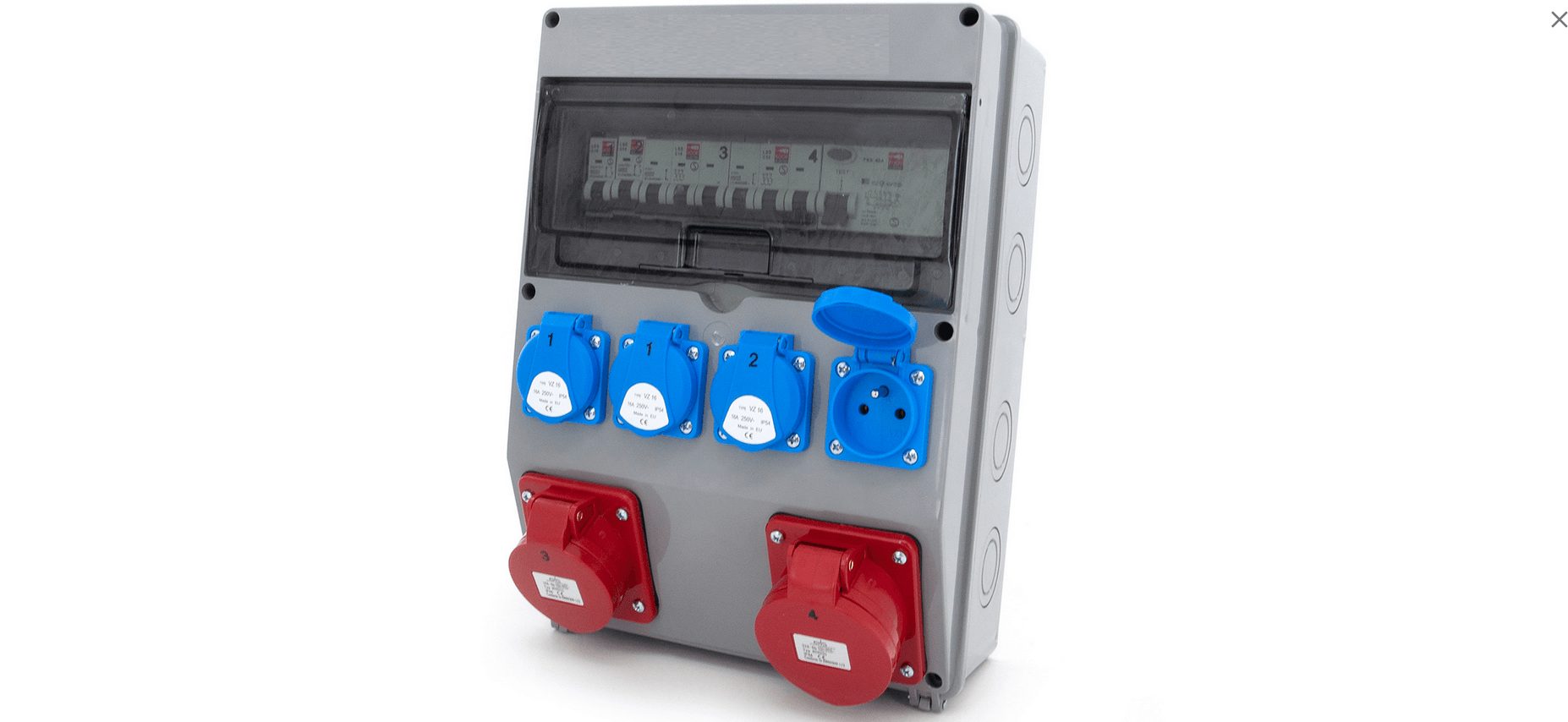

#SALE# Electrical wall distributor 32A 16A 4x230 construction kit
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 10,00 kg
- Artikelnummer
- HT-12957

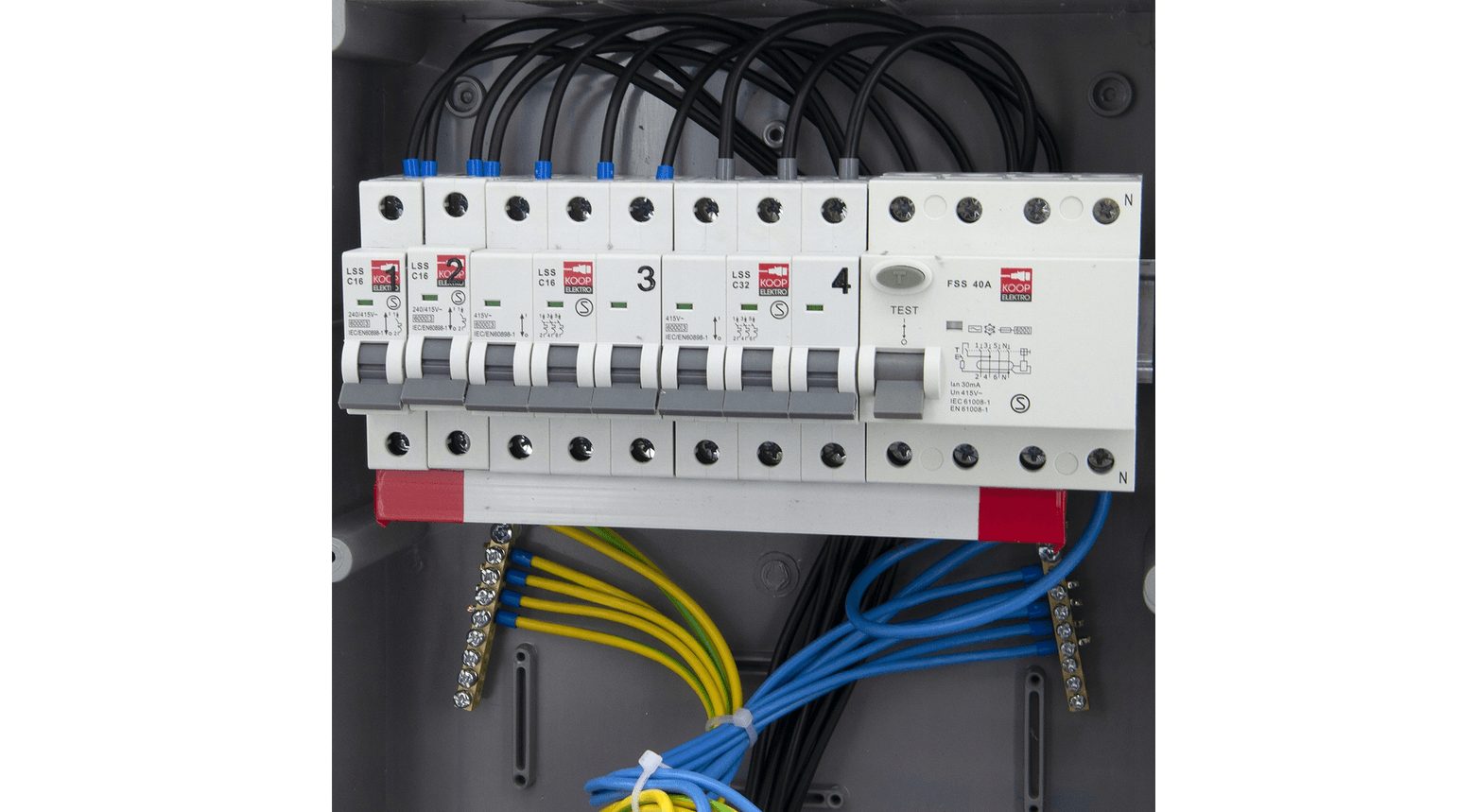

In the control cabinet, 16A and 230V sockets are always wired with a 2.5mm2 cable. The 32A sockets are always wired with a 4mm2 cable. NOTE: Contacts are nickel plated, meaning they will not oxidize or overheat. At the same time, they are more resistant to power overloads, which further impacts the SAFETY of the product and the user. BUILDING SWITCHGEAR 32A 16A 4 x 230 Switchgear equipment: 4 x fixed single phase single pole socket 16A 230V IP54 fully wired with a 2.5mm2 LGY cable and secured wi

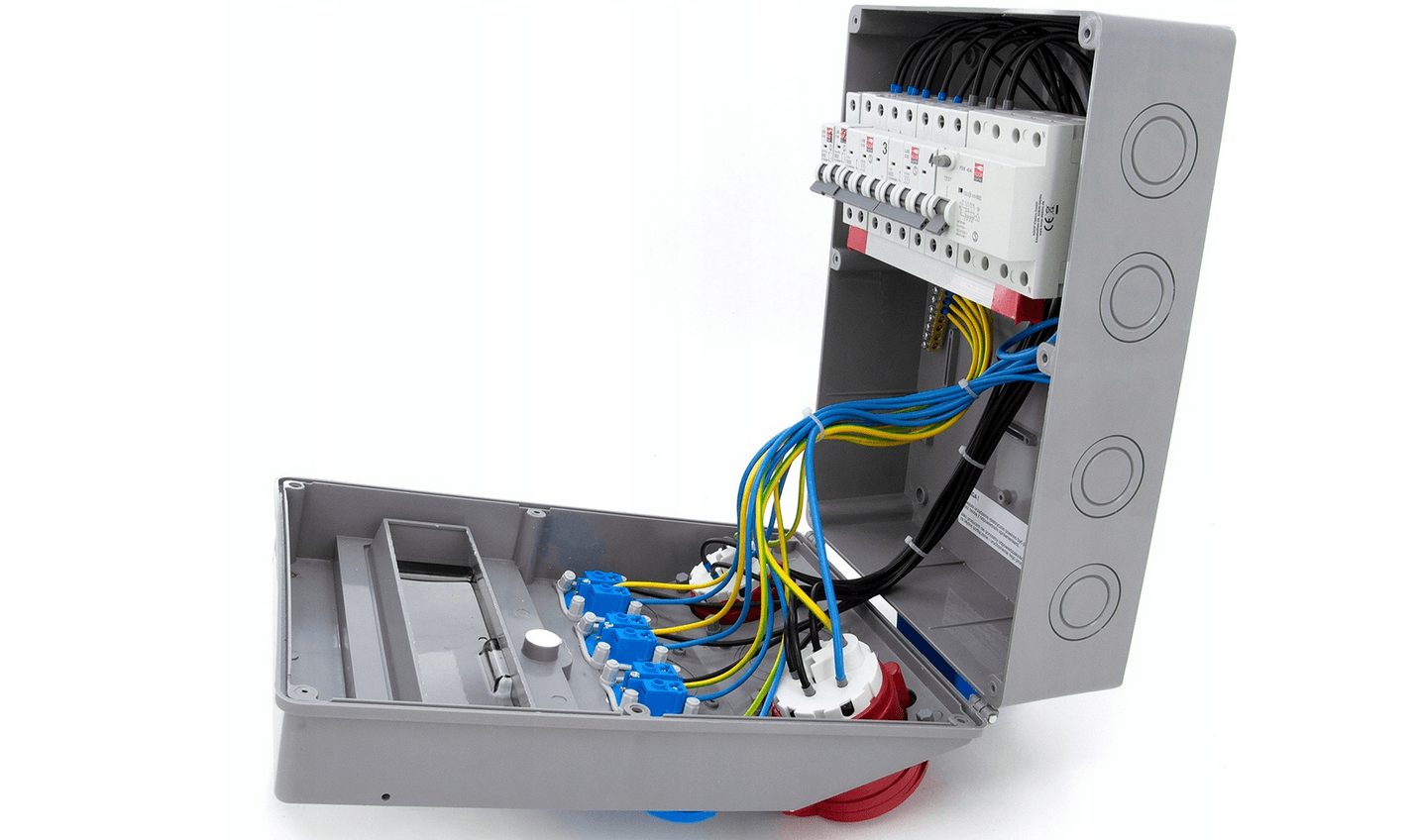

In the control cabinet, 16A and 230V sockets are always wired with a 2.5mm2 cable. The 32A sockets are always wired with a 4mm2 cable. NOTE: Contacts are nickel plated, meaning they will not oxidize or overheat. At the same time, they are more resistant to power overloads, which further impacts the SAFETY of the product and the user. BUILDING SWITCHGEAR 32A 16A 4 x 230 Switchgear equipment: 4 x fixed single phase single pole socket 16A 230V IP54 fully wired with a 2.5mm2 LGY cable and secured with 2 * C16 1P, 1 x 16A 5P 400V IP44 angled socket fully wired and protected C16 3P, 1 x 32A 5P 400V IP44 angle socket, fully wired and protected C32 3P, all sockets connected to the residual current circuit breaker FI40/4/0.03A, (life-saving socket protection), switchgear completely wired inside, only a 5-wire power cable needs to be connected, fuses bridged with a 63A comb strip, cable to the Z and N-strips connected, TH35-Schiene included, high impact resistance of the housing (IK10), comparable products only have IK07, large installation space - 12 modules, housing tightness: IP65, tightness of the set: IP44, 5 x 10 mm input terminals, PG29-Drossel included, 12-part viewing window, resistant to UV radiation, housing dimensions: 350 x 255 x 135 mm [Height x Width x Depth]. Depending on the stock, the arrangement of the sockets may look different.
Login
1 review
9 June 2023 19:47
In Ordnung
Für den Preis in Ordnung.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-12957
- Weight
- 10 kg
