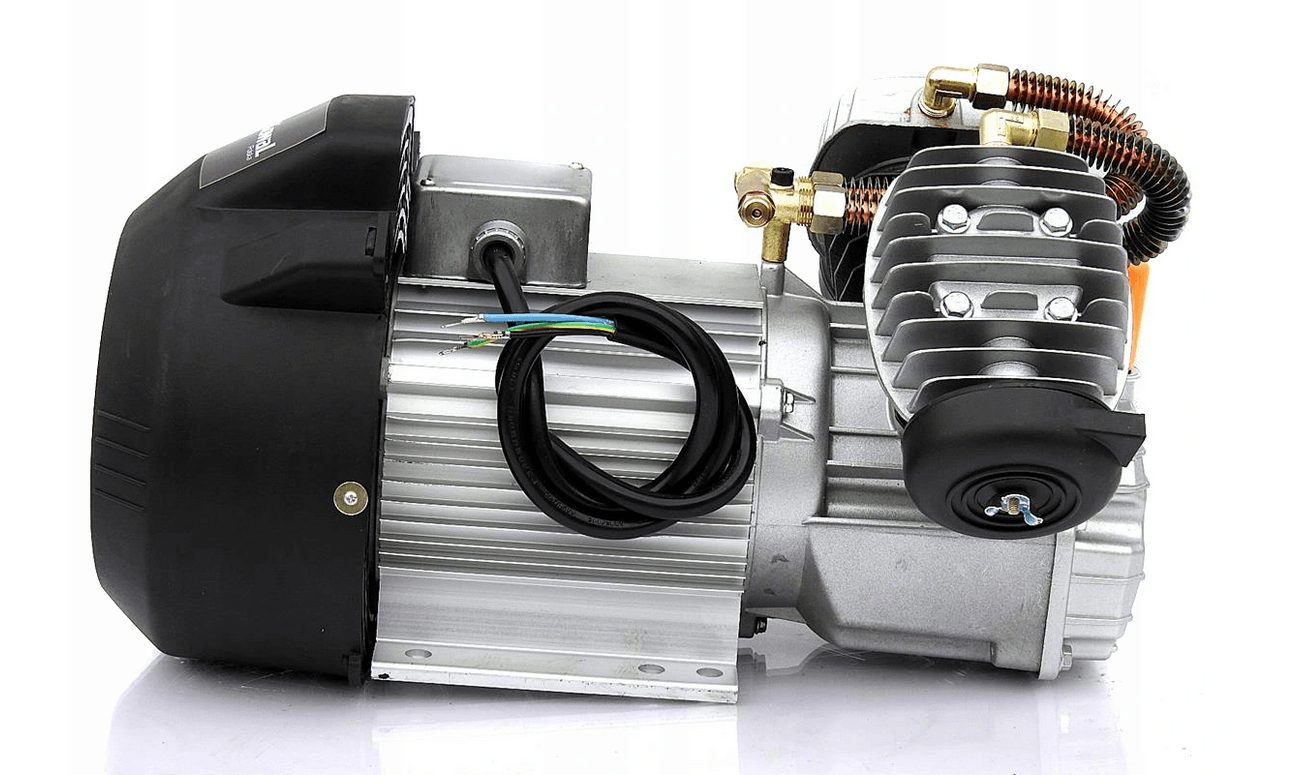

Replacement motor compressor 400V engine V2 set with oil

FREE LD-00 COMPRESSOR OIL (2 x 0.2L or 1 x 0.4L) – New, improved design! -The valve seats have been enlarged for faster airflow -The head heatsink has been enlarged -Compression ratio increased to 10 BAR -Increased cooling turbine diameter -Oil and splash lubrication -3 ring pistons Original oil compressor, 2 pistons Product features FREE COMPRESSOR OIL LD-00 (2 x 0.2L or 1 x 0.4L) - New improved design! -The valve seats have been enlarged for faster airflow -The head heatsink has been enlarged -Compression ratio increased to 10 BAR -Increased diameter of the cooling turbine -Oil and splash lubrication -3 ring pistons Original oil compressor, 2 pistons The compressor is electric (3-phase), air-cooled and oil-lubricated COMPRESSOR 400V V2 oil compressor motor 3 PHASE Power (kW) 3 kW TECHNICAL DATA: -max suction power: 530 L-min-max working power: 300 l/min -Power supply: 400 V (3 phases) 50/60 Hz -Nominal speed of the compressor: 2850 rpm -Motor power: 3 kW (3000 watts) -Recommended displacement: from 50 to 200 L -Operating pressure: 8 bar -Maximum pressure: 10 bar -Weight: approx. 25 kg - Piston diameter: 2 x 47 mm - Oil sump capacity: approx. 0.4 liters - Waste oil: compressor LD-100 - 1 change after 5 hours, then every 50 hours - Lubrication: spray - Cylinder: cast iron - 2 air filters - Housing made of ABS plastic - Correct oil level: Glass panes covered 3/4 of the way - Check the oil level before each use Fill the condition if necessary on new, improved three-ring pistons: -better heat transfer (heat dissipation) from the piston to the cylinder, which has an even better effect on the service life of the compressor -sealing, i.e. prevent oil from entering the cylinder from the oil chamber!! -19mm air outlet
