Professional LCD welding machine welding machine MIG/MAG MMA TIG ME/MAG

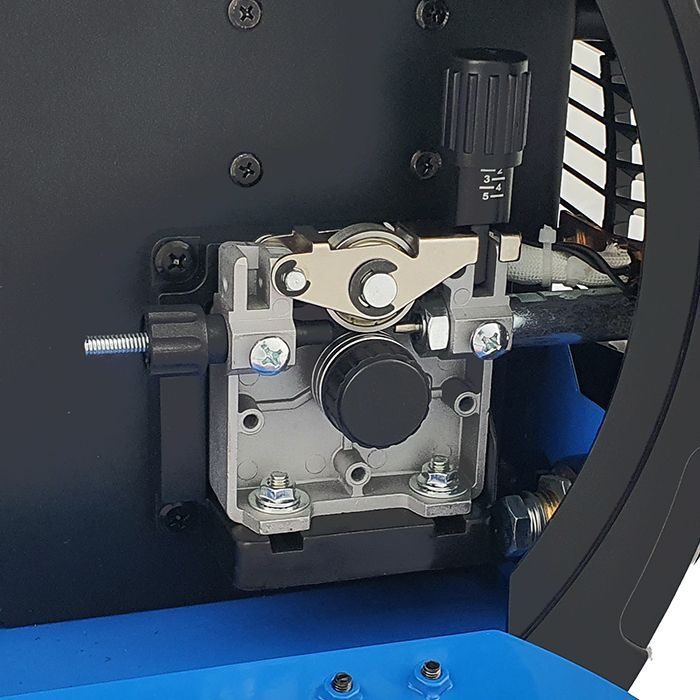

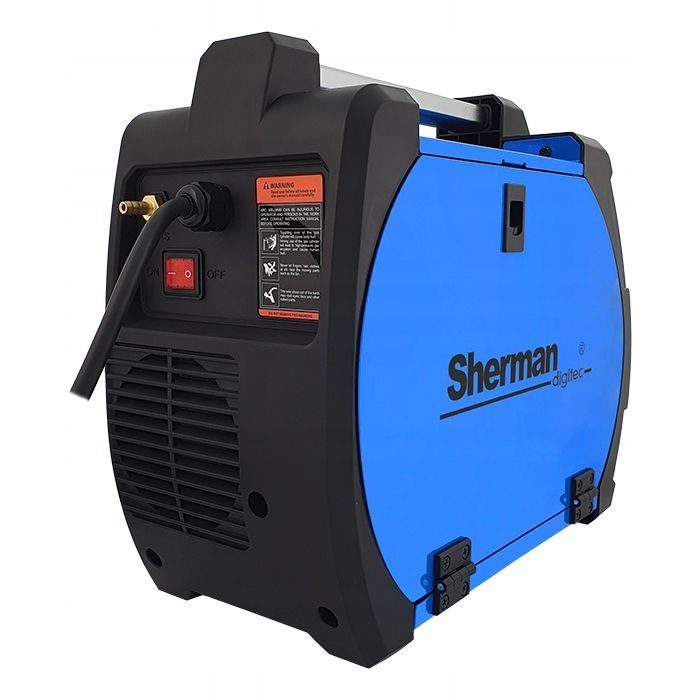

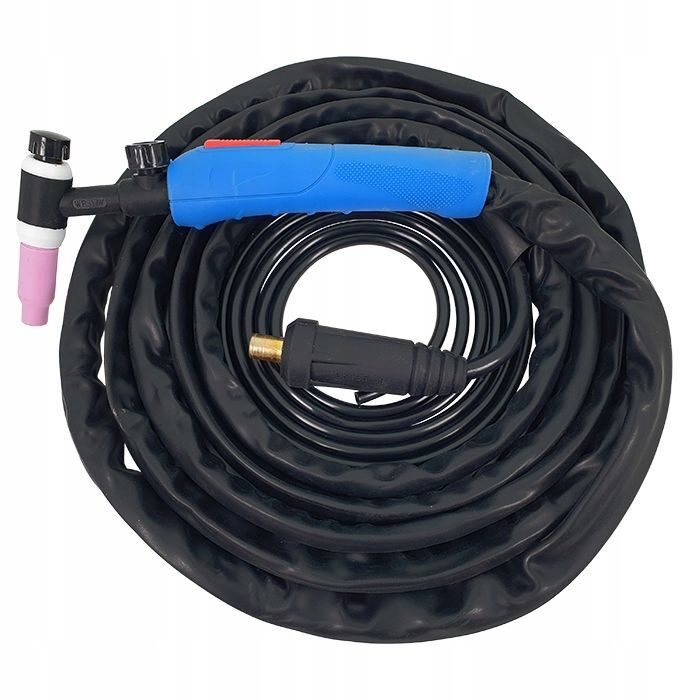

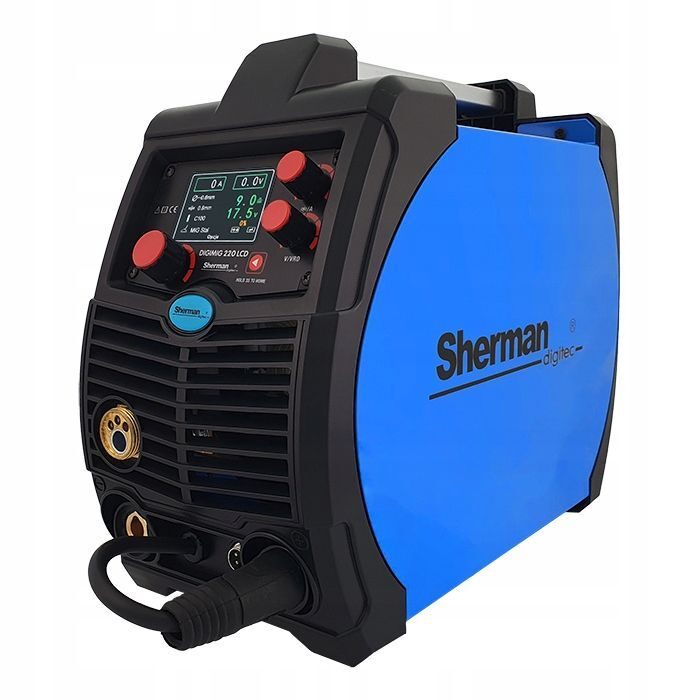

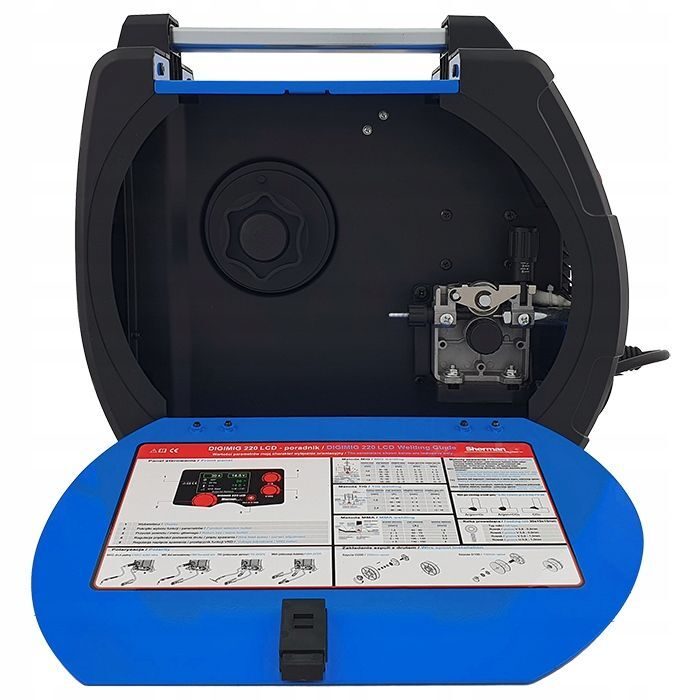

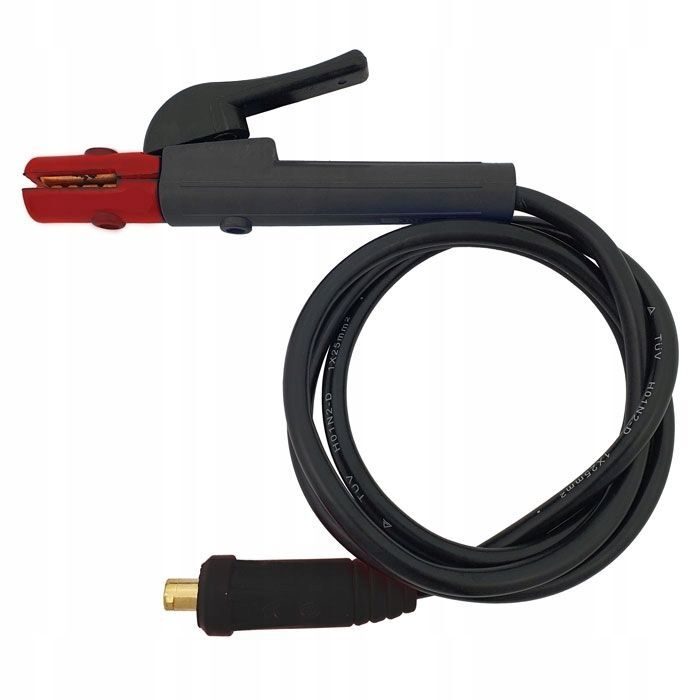

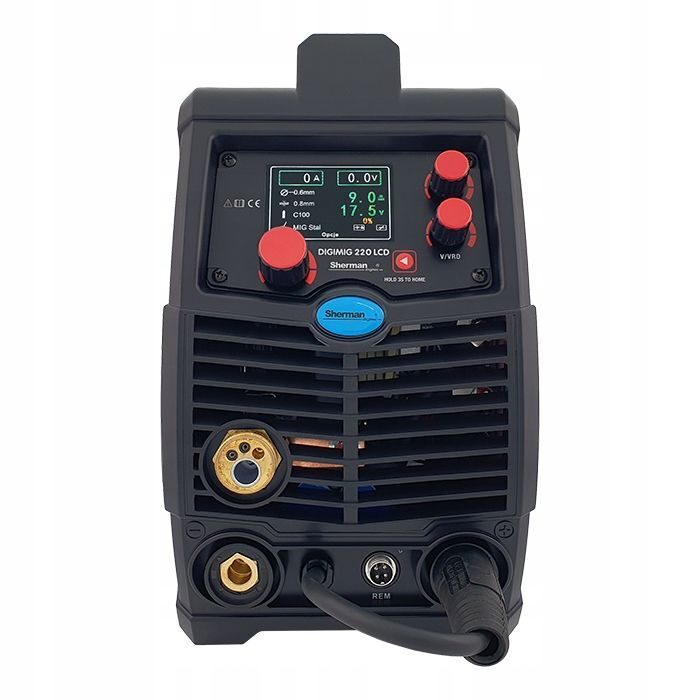

The synergy welding machine LCD is a device for manual welding of steel and non-ferrous metals using the MIG/MAG, MMA (covered electrode) and TIG lift processes. Product features The synergy welding machine LCD is a device for manual welding of steel and non-ferrous metals using the MIG/MAG, MMA (covered electrode) and TIG lift processes. The device is aimed at welders who value high quality and reliability lay It can also be used for soldering thin (up to 3 mm) galvanized sheets ME/MAG MMA TIG-Lift 230V Maximum current 200A Duty cycle 30% Coil D100 and D200 Arc power HOT START COMPARE Coil gun Dual roll feed LCD screen Memory of last setting MIG TW-15/3m-Brenner TIG T-17 ERGO (V) 35/50 4m torch The digital control allows welding according to the settings programmed in the device, as well as complete adjustment of the parameters, gas selection, material thickness, binder strength and arc dynamics in the MIG/MAG process according to your requirements The use of synergy settings of carbon steel and aluminum alloys in the welding machine greatly simplifies the operation and allows use by less experienced people and hobbyists. The use of the fan stop function, which turns off the fan when the welding machine is under low load, has made it possible to significantly reduce the noise level during For MMA welding, you can switch off the HOT START and ARC FORCE functions and set VRD. The device has a memory for the last setting, i.e. h After switching off and on again, the last set parameters are restored Welding/cutting/other processes: Soldering, MIG/MAG, MMA DC, TIG lift (by rubbing) DC supply voltage [V]: AC 230 max MMA welding current [A]: 200 max TIG DC welding current [A]: 200 Max MIG/MAG duty cycle [%]: 30 TIG duty cycle [%]: 30 Open circuit voltage [V]: 65 MIG welding voltage [V]: 16 - 24 Welding voltage correction: -15 - +15 Wire feed speed range [m/min]: 1-15 Wire feed speed [m/min]: 1 - 15 Feed speed: 50 - 100% MIG spot welding time [s]: 0.5-10 Maximum power consumption MMA [kVA}: 7.7 Max TIG power consumption [kVA]: 7.7 Maximum power consumption MIG/MAG [kVA]: 7.7 Maximum power consumption MMA [A]: 41.7 Max TIG power consumption [A]: 26.8 Maximum power consumption MIG/MAG [A]: 35.7 Marry coil with wire ø [mm]: 100, 200 Roll Dimensions [mm]: 30x10x10 Features: Arc Force, Fan Stop, Hot Start, Coil Gun Option, 2 Roll Feed, Feed Creep Speed, Inductance Adjustment, Welding Without Gas, MIG Spot Welding, Digital Control, Manual Settings, Synergy Settings, VRD, Electrode Selection, Selection Language, LCD Screen Network Protection [A]: 25 Serial Number: Yes Main method: MIG/MAG Weight [kg]: 14 Dimensions (L x W x H) [cm]: 450 x 220 x 380 Included: Welding torch TW-15/3m TIG T-17 ERGO welding torch with valve (V) 35/50 4 m electrode wire ground cable
