Premium distributor hydraulic 1 sec. 80 l electric 24 V

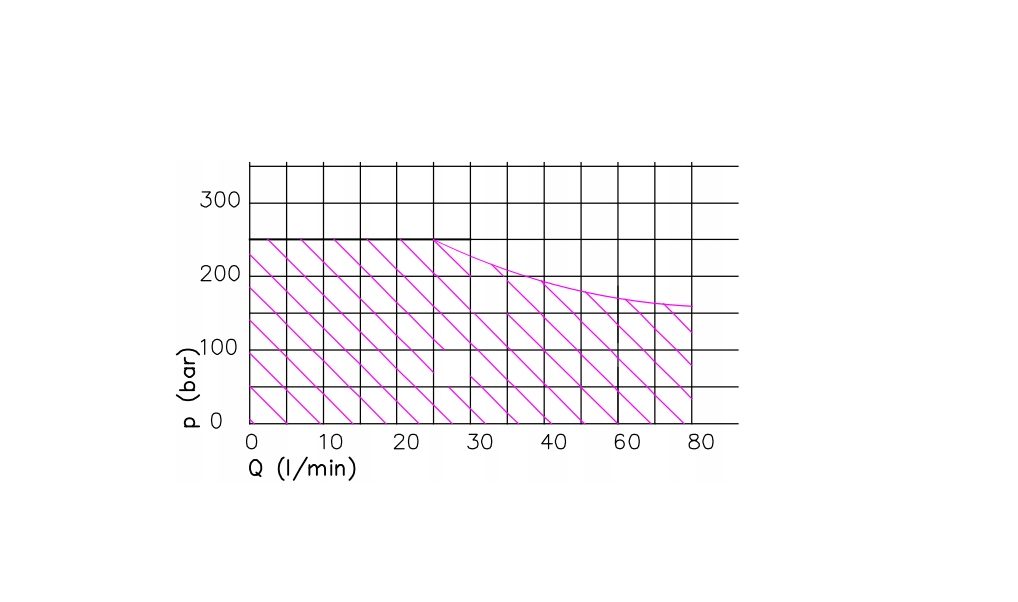

Hydraulic distributor, 1 section, electric, 12V, oil flow 80 l/min The universal distributor is used in various types of machines such as: Cyclops, Tury, loaders, plows, forklifts and derivatives. The distributor is equipped with a safety valve. The distributor is perfect for hydraulically driven machines and devices. It can be used in agriculture, horticulture, forestry and construction. It is suitable for use in: agricultural machinery, tractors, sprayers, turners, cyclops, HDS loaders, construction machinery, loaders, excavators, sweepers, industrial machinery and others. The distributor is equipped with a safety valve. Voltage: 12V Power: 37 W Oil flow: 0 - 80 l/min Recommended oil filtering at a level of 10 - 15 µ Internal leakage: approx. 18 cm³/min at 120 bar Oil temperature: -20 °C to +80 °C Ambient temperature: -40 °C to +60 °C Design: Valve made of cast steel Pressure range: Maximum flow pressure: 250 bar Maximum return pressure: 50 bar Maximum pressure on the sections: 300 bar One relief valve: factory set at 180 bar Possibility of independent control, full rotation change of 30 bar. Connection: Supply (P) BSP 1/2'' Return (T) BSP 3/4'' 1/2'' BSP Section outlet Oil type: Mineral oil based hydraulic oil Three position spool valve (1 - 0 - 2) on the spring it returns to the neutral position by itself (after turning off the power supply) Neutral 0 position (power supply to the coils OFF) The actuator piston rod is stationary - the oil overflows. Working position 1 (current supply to the first coil), the piston rod of the drive extends. Working position 2 (current supply to the second coil), the piston rod of the drive retracts. Inputs Outputs: P1 / P2 - oil supply T1 / T2 - oil return A1-A2 / B1-B2 - outputs for actuators N - pressure output (for pressure transmission to distributors connected in series - requires a pressure sleeve) ZP - overflow valve
