#OFFER# Electric motor asynchronous motor 2.2 kW
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 15,00 kg
- Artikelnummer
- HT-03073

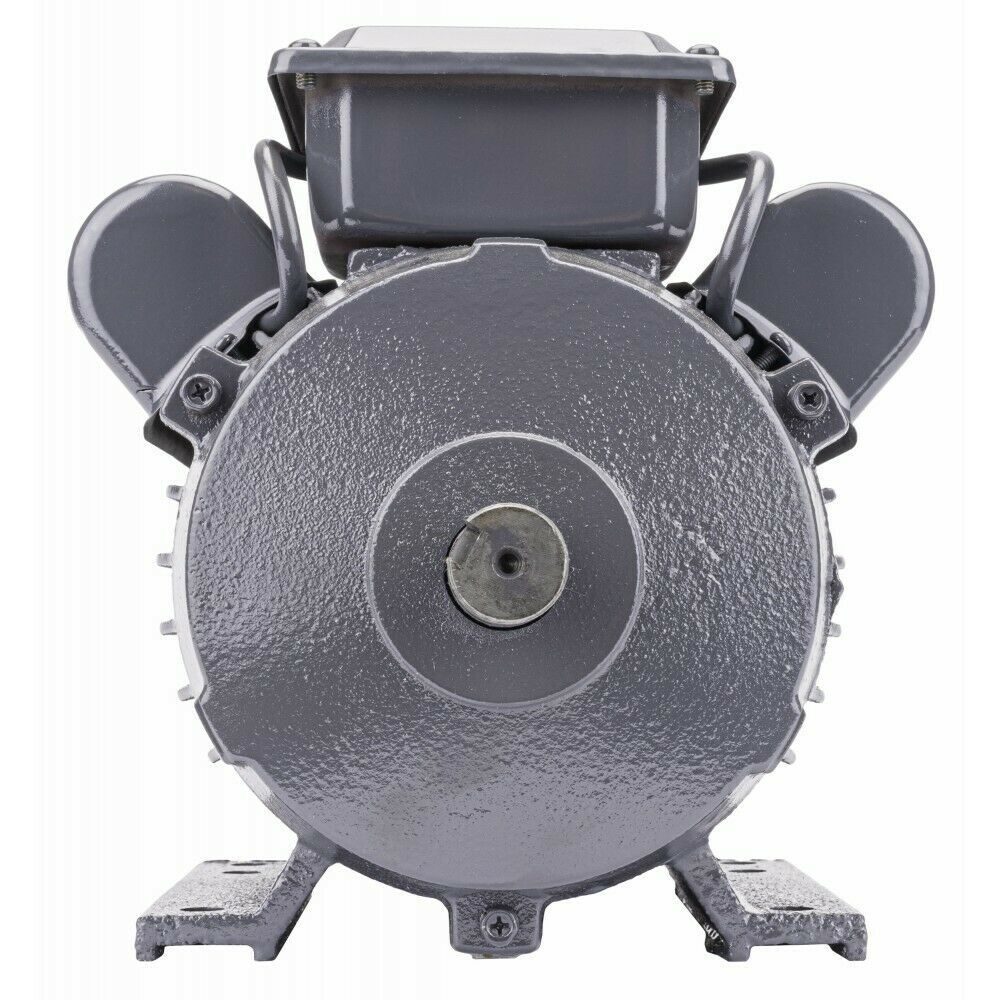

New in original packaging. A single-phase capacitor asynchronous motor. Completely enclosed motor with fan (IC411). The performance is comparable to a 3-phase three-phase motor. Terminal box mounted on top. Highest efficiency & performance. Protection class IP 44. The design complies with IEC standards. Direction of rotation: left or right possible. 230 V • 2.2 kW • 2800 rpm. Robust, high-performance single-phase motor specifically designed to drive devices and machines that work under full load

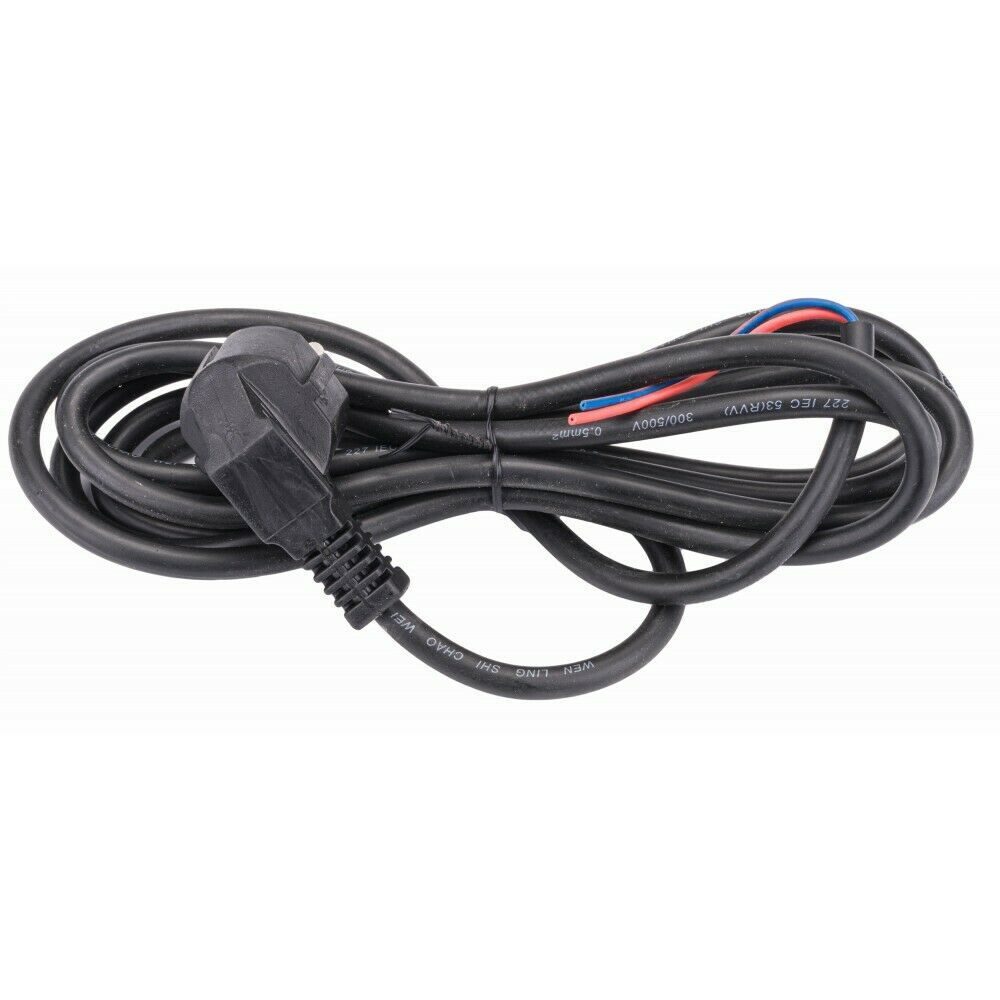

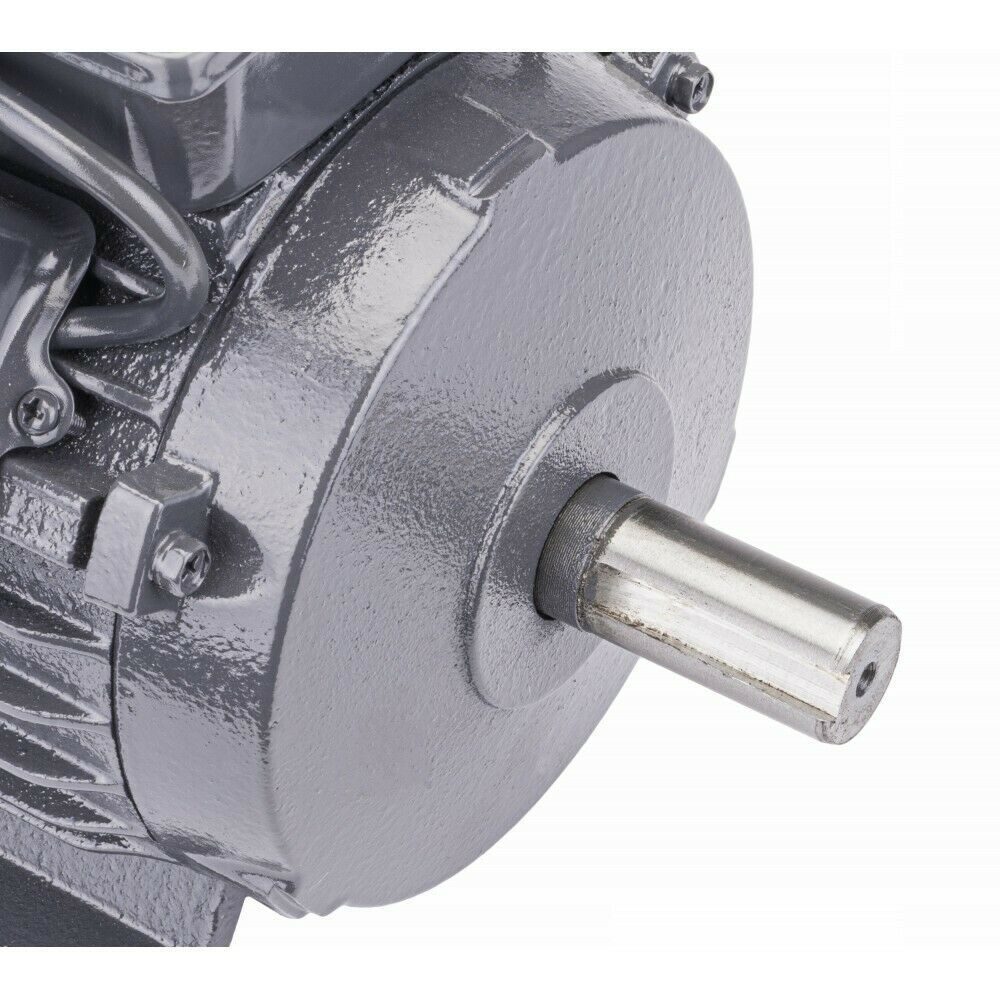

New in original packaging. A single-phase capacitor asynchronous motor. Completely enclosed motor with fan (IC411). The performance is comparable to a 3-phase three-phase motor. Terminal box mounted on top. Highest efficiency & performance. Protection class IP 44. The design complies with IEC standards. Direction of rotation: left or right possible. 230 V • 2.2 kW • 2800 rpm. Robust, high-performance single-phase motor specifically designed to drive devices and machines that work under full load. Technical details Voltage 230 V Frequency 50 Hz Rated power 2.2 kW Speed 2800 rpm Shaft diameter 24 mm Wavelength 45 mm Current consumption 13.9 A Cooling air Protection class IP 44 Insulation class B Torque 1.7 Nm Power factor 0.95 Efficiency/performance 75% Weight 14.9 kg Motor dimensions 33 x 21 x 22 cm Foot hole distance (base) 100 x 125 x 140 mm Mounting types IMB3m, IMB5, IMB35, IMB14, IMBV1, IM9HV3, IMV5, IMV6, IMV18, IMV19, IMV36 Included in delivery Electric motor power cable
Login
5 reviews
26 June 2026 11:15
Wie erwartet
War das richtige Teil, alles okay.
8 October 2025 12:16
In Ordnung
War das richtige Teil, alles okay.
14 December 2024 18:46
Keine Beanstandung
Für den Preis in Ordnung, Versand normal.
30 March 2024 08:00
Passt
Bestellt, geliefert – #ANGEBOT# Elektromotor Asynchronmotor läuft.
10 June 2023 18:46
Okay
#ANGEBOT# Elektromotor Asynchronmotor passt, Einbau unkompliziert.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-03073
- Weight
- 15 kg
