Motor drive with obstacle detection function Inel YYGL45E-20/15 for external roller shutters, roller shutters, roller shutters

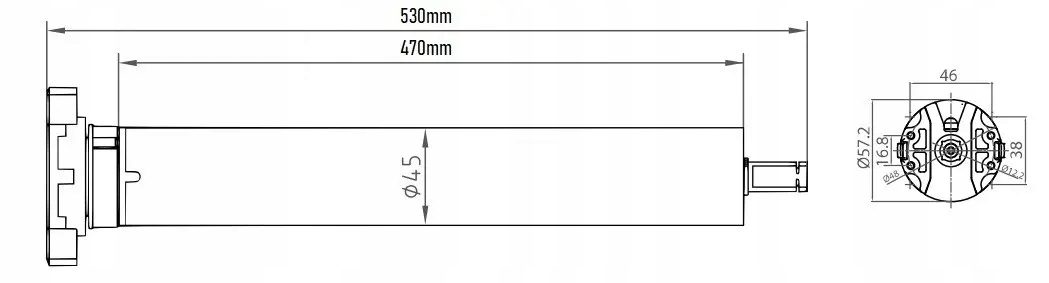

Motor drive with obstacle detection function Inel YYGL45E-20/15 for outdoor roller shutters N-20E Wired tubular motor with overload 20 Nm, e.g. Product features Motor drive with obstacle detection function Inel YYGL45E-20/15 for outdoor roller shutters N-20E Wired tubular motor with overload 20 Nm, e.g 20 Nm 230 V for octagonal tube with a diameter of 60 mm Thanks to the integrated obstacle detection, the actuator detects an obstacle in its path and switches off automatically This prevents damage to the roller shutters where a normal motor would not stop working and could be damaged, which could also scratch the armor and damage the hangers End positions are set automatically The actuator can be mounted on soft hangers In automatic programming mode, the use of lock brackets and stoppers is required The motor torque is 20 Nm at 15 rpm The set contains all the necessary accessories to mount the motor in your box The motor is protected from damage due to overheating - the motor switches off automatically after 4 minutes of continuous operation The maximum load capacity of the motor is 42 kg, which corresponds to approximately 8 m2 of armor of the external roller shutter Adapted to the octagonal tube with a diameter of 60 mm The motor is controlled via a key switch and can be used with a flush-mounted radio or a WLAN controller Very quiet operation of the actuator The length of the power cable is up to 2 meters Make all connections only when the power is off The set contains: drive adapter and driver for fi60-Achtkantrohr-Montagehalterung, locking pins, packaging
