Mixing group for underfloor heating manifold with AFRISO ATM 566-Ventil, Grundfos UPM3S AUTO pump KF-GM3-70G ATM566

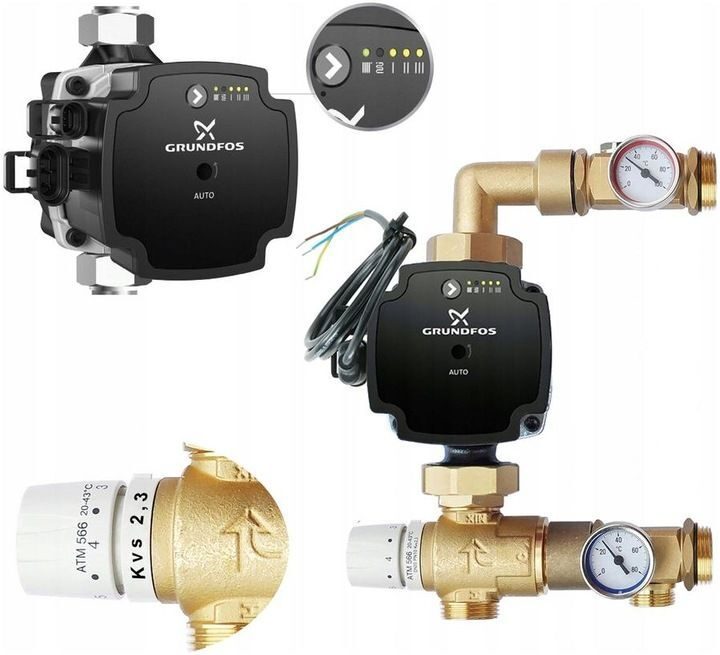

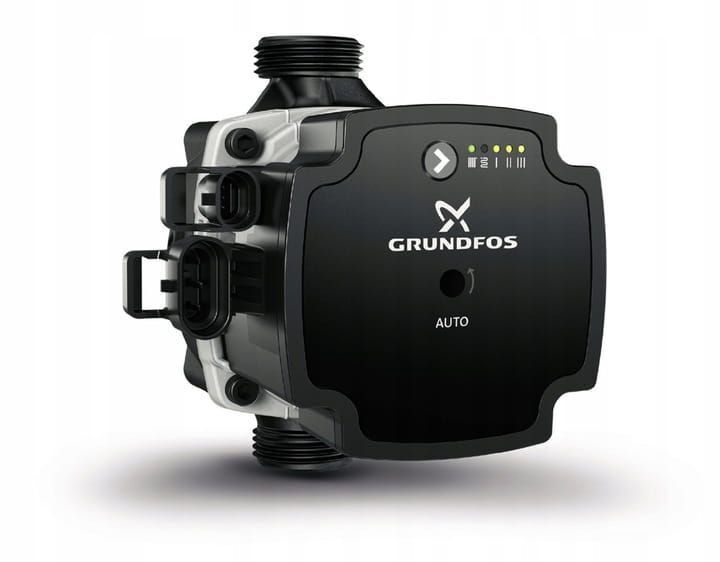

Mixing group for underfloor heating manifold with AFRISO ATM 566-Ventil, Grundfos UPM3S AUTO pump APPLICATION Used in heating systems Product features Mixing group for underfloor heating manifold with AFRISO ATM 566-Ventil, Grundfos UPM3S AUTO pump APPLICATION Used in heating systems Mounted between the heat source and the surface heating manifold in the distribution cabinet It prepares the medium to the appropriate temperature and pumps it in the heating circuits of the distributor DESCRIPTION Equipped with a thermostatic mixing valve ATM 566 The valve maintains the flow temperature set on the rotary knob in the range von 20-43 °C High-end electronic pump GRUNDFOS UPM3S AUTO with power cable Thermometers on the flow and return lines of the distributor control the temperature of the medium TECHNICAL DATA kvs zaworu ATM 2.3 m³/h Power supply 1" Rear thread External thread 3/4" Connections to the GZ 1" distributor with lock nut and O-ring seal Distance of the connections to the distributor 210 mm Circulation pump GRUNDFOS UPM3S AUTO Power supply 230 VAC PUMP SPECIFICATION Permissible liquid temperature: minimum 0*C, maximum + 95*C Maximum permissible ambient temperature: + 70*C Power consumption: 2W-39W Maximum working pressure: 10 bar Power supply: 230V Mains frequency: 50 Hz Protection class: IP44 Installation length: 130 mm Lifting height: 6m The UPM3S AUTO pump is an energy-saving, small pump with features that are suitable for use in surface heating systems. The pump is the smallest pump in the GRUNDFOS® series internally controlled (self-controlling) with three control modes and 2 AUTOADAPT options The user interface has one button, two green and three yellow LED indicators The following operating modes are set using the button on the control panel: constant speed characteristic, characteristic recommended for radiator and floor installation
