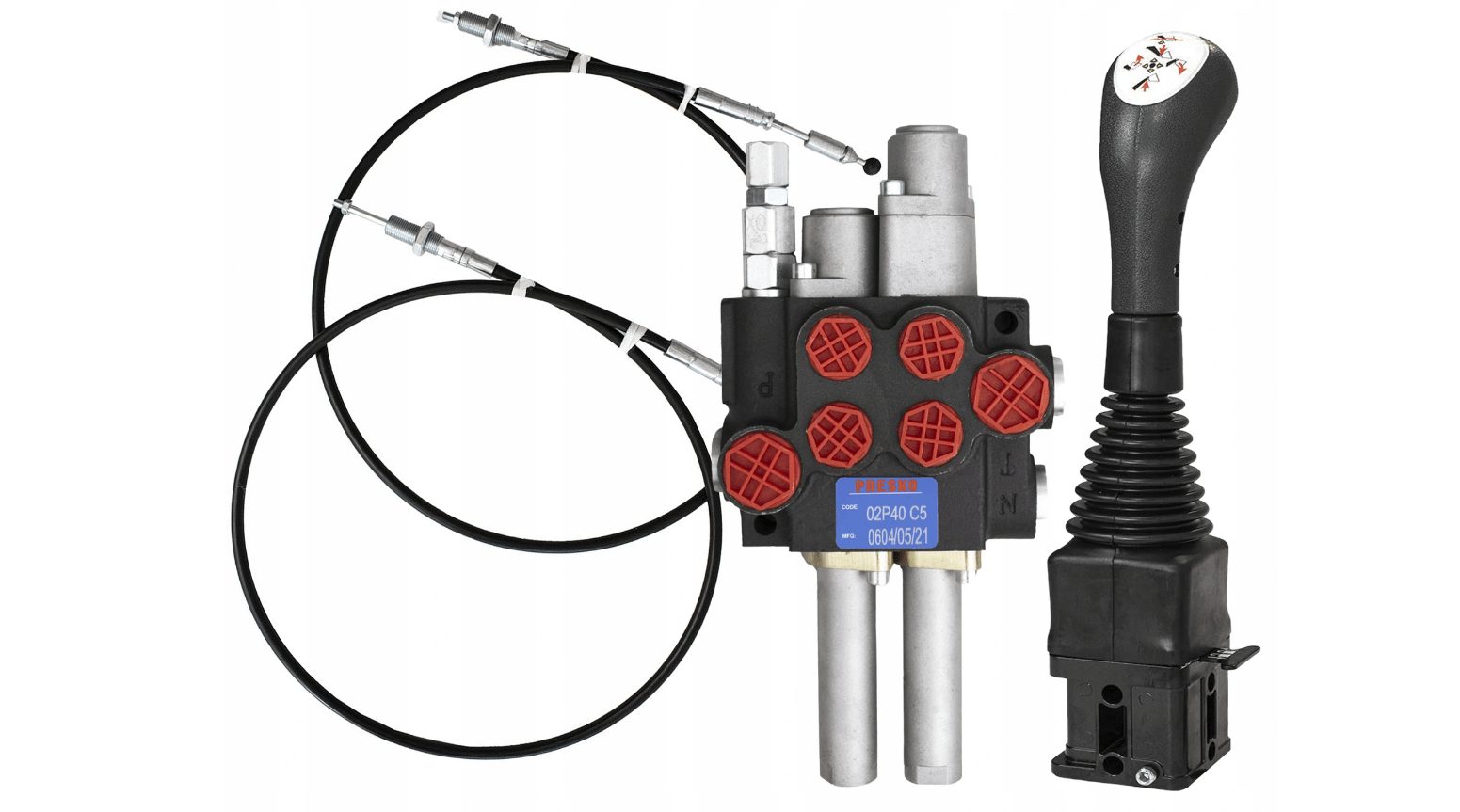

Hydraulic valve crossover joystick bowden cable front loader complete set

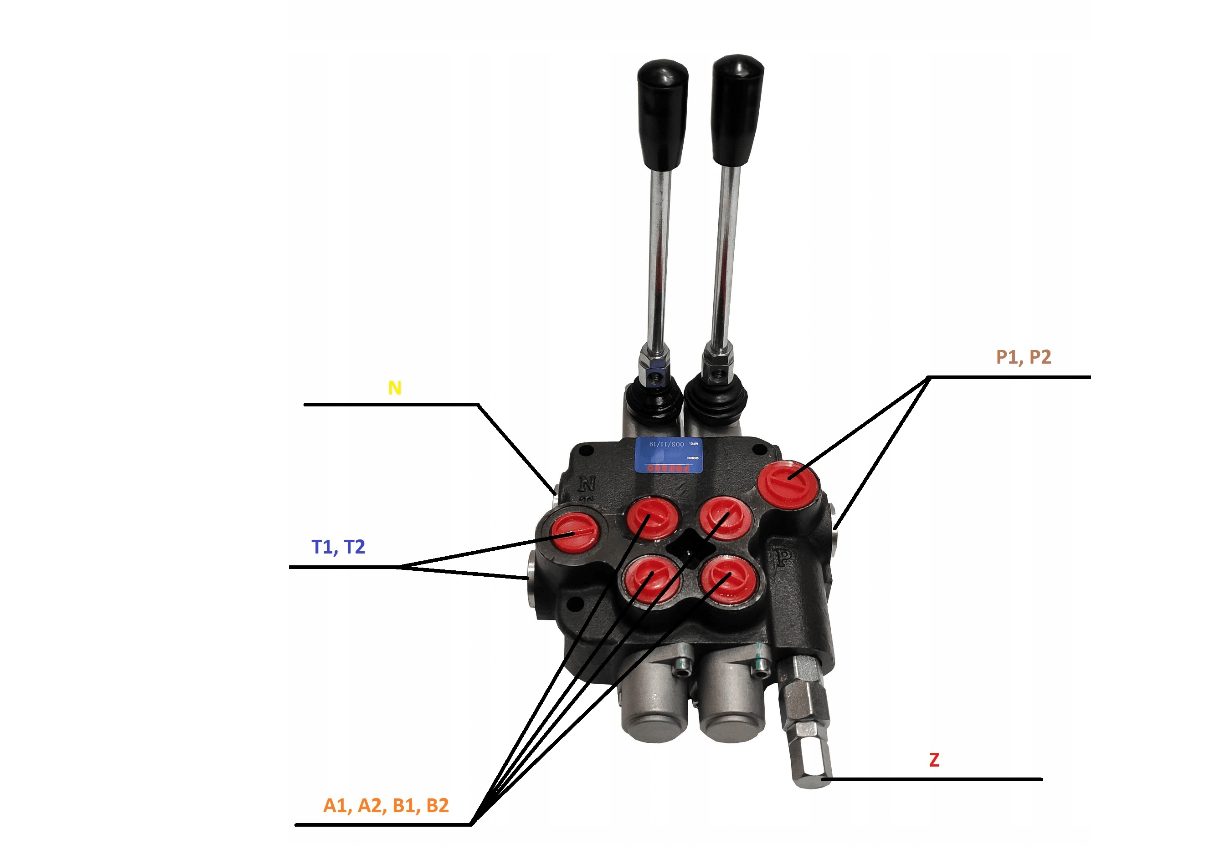

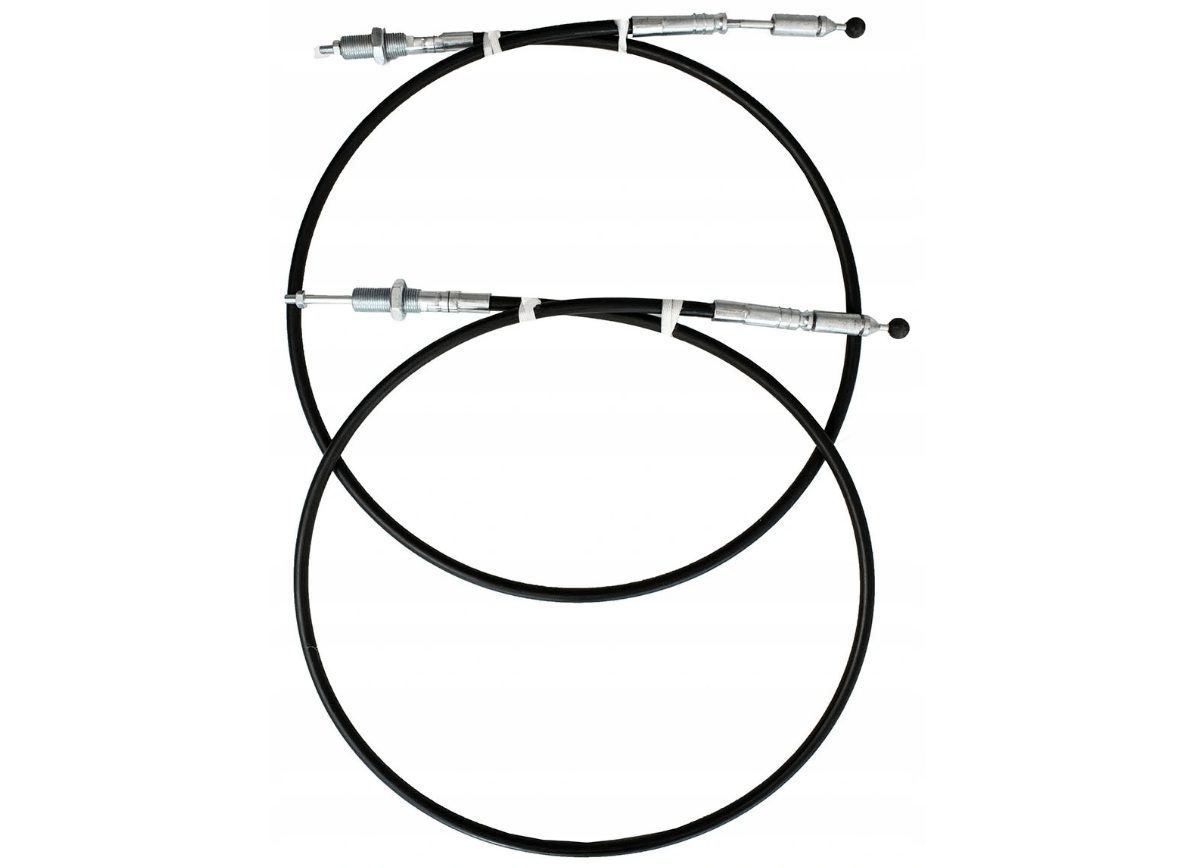

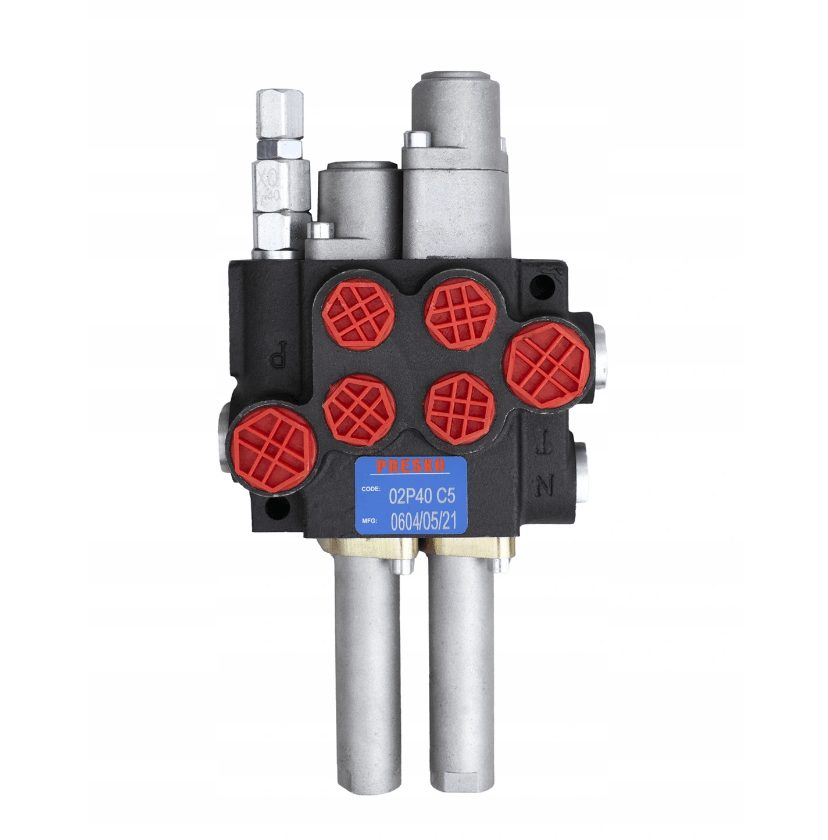

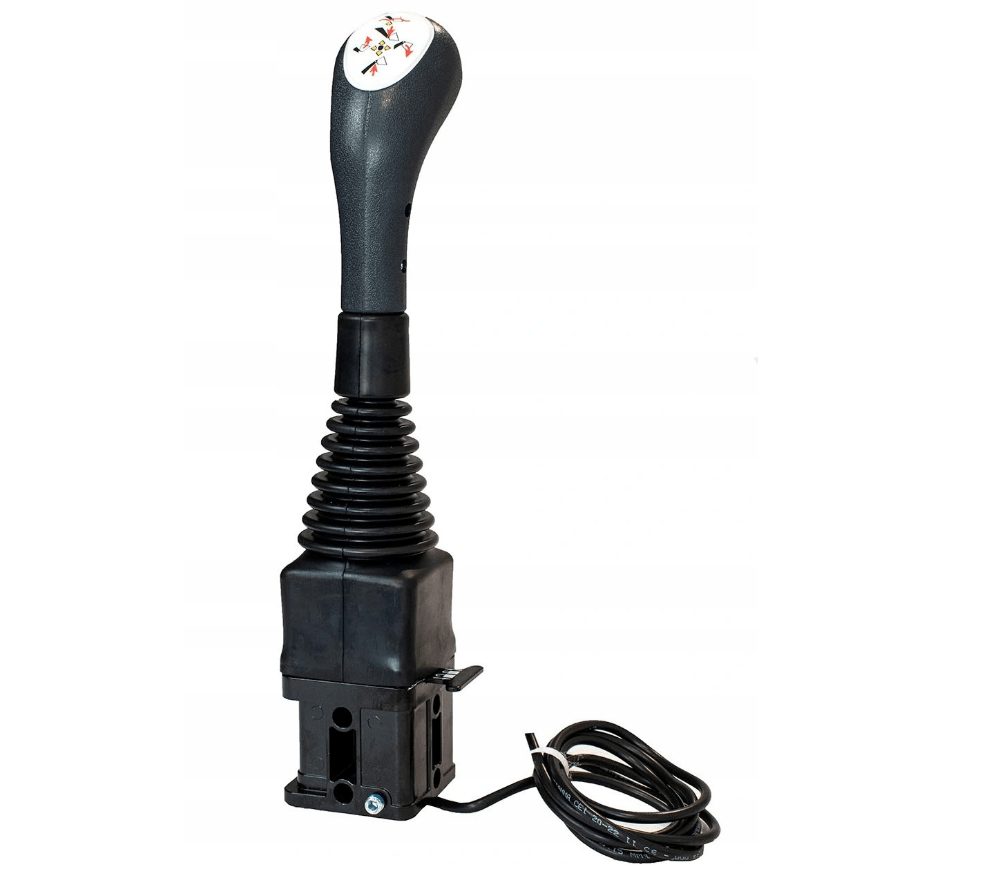

Durable hydraulic distributor (40l) - set with cables (2x2m) and a joystick. The distributor is successfully used in agriculture, gardening, construction and forestry. It is used in many machines and vehicles with a hydraulic system. It allows you to connect the hydraulic system located outside the cab with an in-cab joystick, making work comfortable and safe. First section: SPRING SECTION - a three position (1-0-2) spring section that allows the joystick to automatically return to the neutral position when released. The second section: FLOATING SECTION - allows the piston rod to move freely in the hydraulic cylinders, allowing the elements in contact with the ground (for example, a snow plow) to float freely on slight unevenness, ensuring safe and stable operation of the device. Durable and proven construction of the set. Distributors in this configuration are very often used in SNOW PLOWS and: - Tractors - Sweepers - Sprayers - Agricultural machines and many others Technical specifications Number of sections: 2 Safety valve setting: 180 bar Maximum pressure: 250 bar Maximum flow: 40 l / min Section spacing: 35 mm Dead weight: 4.57 kg Typical application: Power hydraulics Connection: Pump inlet (P1, P2): BSP 1/2'' Female Thread Return to Tank (T1, T2): BSP 1/2'' Female Thread Output to Sections (A1, A2, B1, B2): BSP 3/8'' Female Thread Series Connection (N): BSP 1/2" Female Thread Safety Valve: Z SET INCLUDES: 2 SEC DIVIDER JOYSTICK CABLE SET Part Number 02P40 C5-C1 + 2.0 METER CABLE K-PZK + JOY-VDM6-BULL-1BZK - Durable Presko hydraulic distributor: Robust and compact design Sleeves for attaching control lines Especially for front loaders and snow plows It allows serial connection with another distributor using a pressure screw - Two links: 2x2m durable protective armor strong construction You will used to connect the distributor to a joystick with ball system 2 SEC SEPARATOR CABLE JOYSTICK KIT Manufacturer of parts Presko - Solid joystick from PRESKO Joystick with one button, suitable for controlling lines with balls Durable construction made of high quality materials It allows precise control of devices such as a bucket, a grab or a crocodile Perfect for SNOWPLOWS, TURNS, CYCLOPS, FORKLIFT AND LOADER Safety mechanism for blocking the movement of the joystick head Cable hole - diameter 14 mm The joystick can also work with a solenoid valve. After installation or commissioning, an exchange and return are excluded. After receipt/installation or commissioning, an exchange and return are excluded as we cannot rule out that it will still be in the perfect condition for the next end customer.
