Hydraulic motor BM2 50 160 200 315 BMR OMR SMR + with connection set
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 15,00 kg
- Artikelnummer
- HT-19453

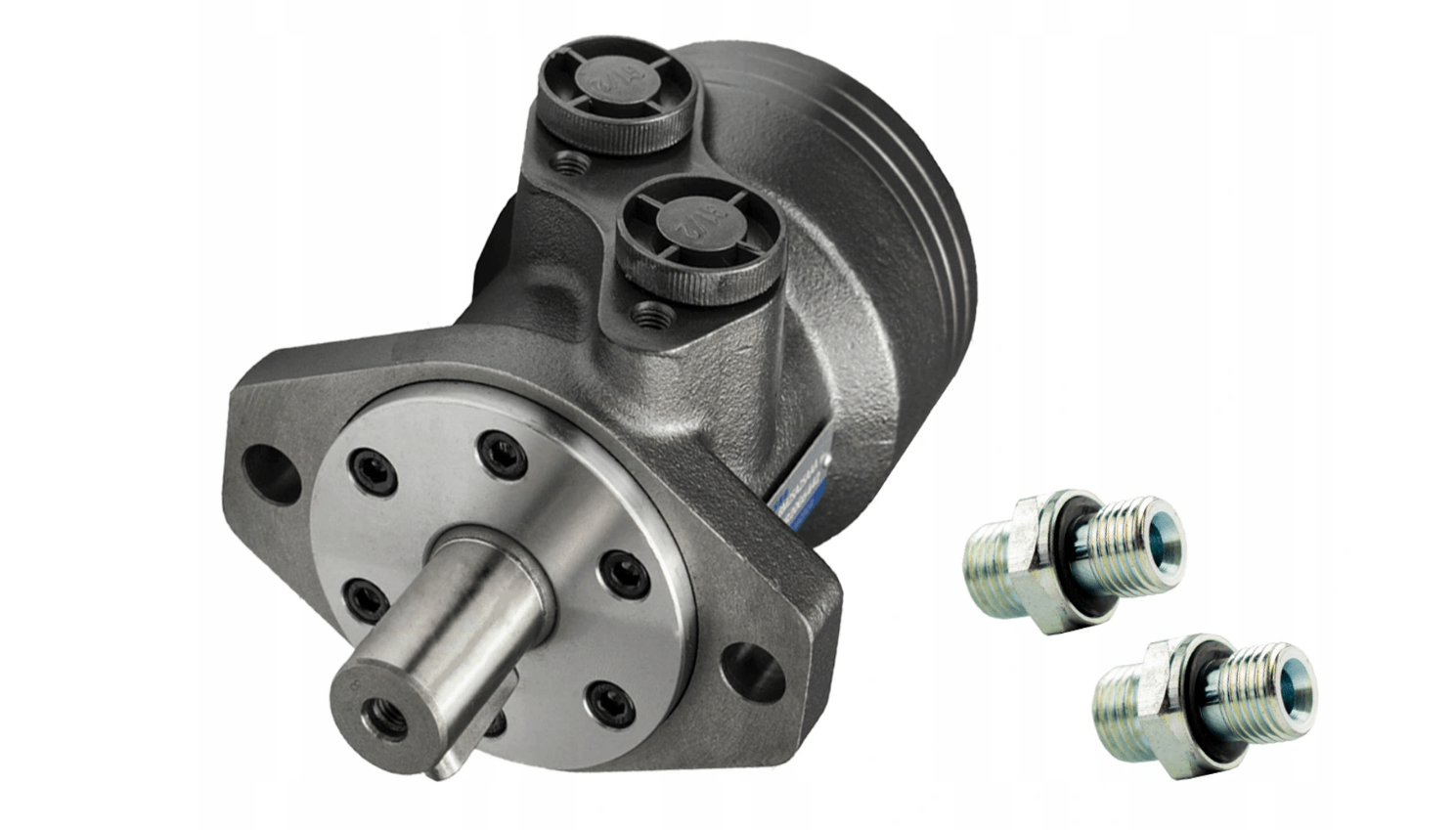

Strong hydraulic motor BM2 100, shaft 25mm BMR OMR SMR in a set with connections. Hydraulic motor BM2 100cm3 BMR OMR SMR + connection set orbital motor (gerotor), absorption 100 cm³ / U, with G ½ "connections, SAE A Corresponds to OMR 100, BMR 100, SMR 100 Corresponds to M+S MR 100 CB Special set of connection nipples. BASIC INFORMATION Absorption capacity: 100 cm3 / U. Connections: G ½" (according to BSPP¹) Mounting flange: SAE A-Standard Drive shaft journal: C25 Continuous working parameters:

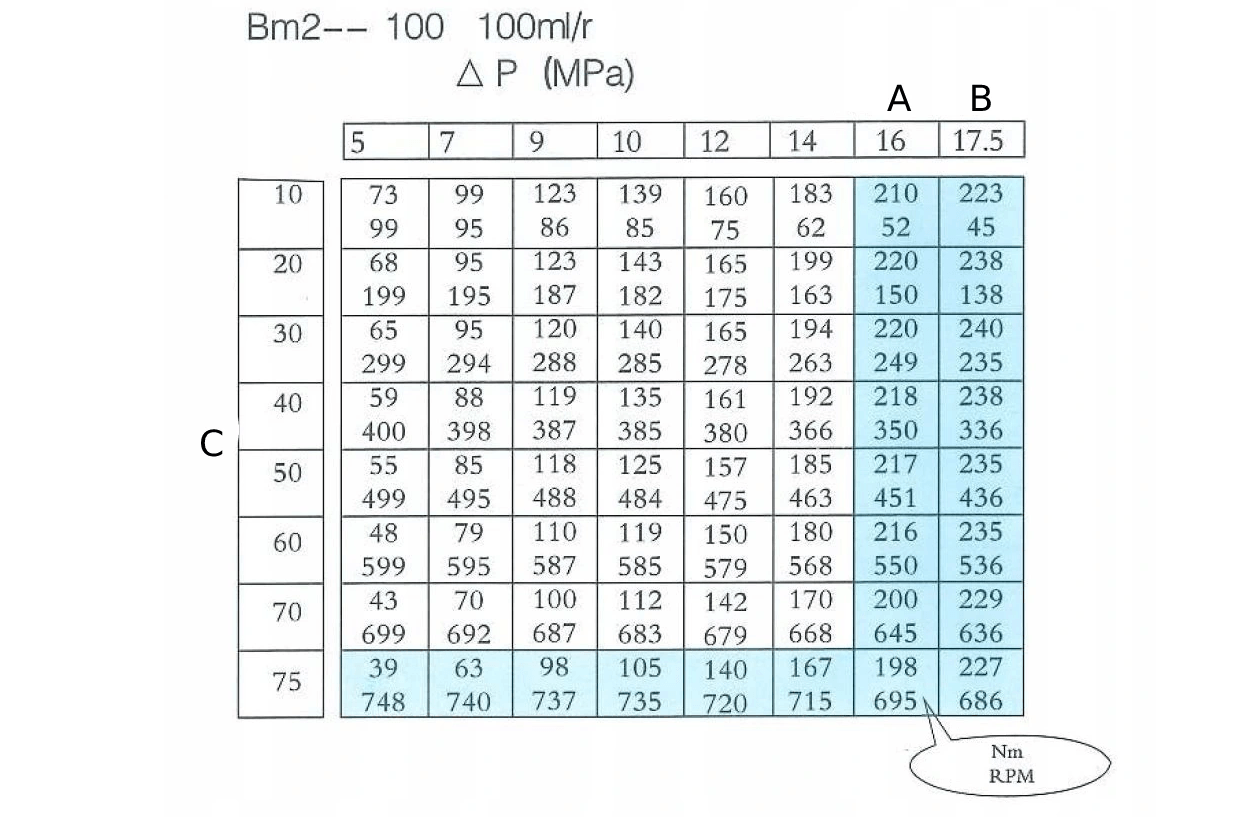

Strong hydraulic motor BM2 100, shaft 25mm BMR OMR SMR in a set with connections. Hydraulic motor BM2 100cm3 BMR OMR SMR + connection set orbital motor (gerotor), absorption 100 cm³ / U, with G ½ "connections, SAE A Corresponds to OMR 100, BMR 100, SMR 100 Corresponds to M+S MR 100 CB Special set of connection nipples. BASIC INFORMATION Absorption capacity: 100 cm3 / U. Connections: G ½" (according to BSPP¹) Mounting flange: SAE A-Standard Drive shaft journal: C25 Continuous working parameters: Maximum speed (continuous): 568 rpm Maximum torque (continuous): 180 Nm Maximum flow (continuous): 60 l / min Maximum output power (continuous): 9.61 kW Maximum supply pressure (continuous): 14 MPa Temporary working parameters: Maximum speed (instantaneous): 695 rpm Maximum torque (instantaneous): 227 Nm Maximum flow (instantaneous): 75 l / min Maximum output power (instantaneous): 15.45 kW Maximum supply pressure (instantaneous): 17.5 MPa British Standard Pipe Parallel - British Standard Pipe Parallel Inch parallel thread, one of the Whitworth Pipe (BSP) threads that with marked with the letter G. The motor in the set contains special connection nipples that enable easy attachment to the system. 2 x 1/2 '' nipple - M22x1.5 The nipple has a seal on the side of the 1/2 '' thread (for screwing into the motor connection), which gives us a guarantee of the tightness of the connection. The M22x1.5 thread is used to connect to a hydraulic hose connection. Shaft diameter: Ø25x40mm Straight spline shaft: 8x7x32mm Thread and shaft: M8
Login
4 reviews
8 July 2026 17:09
Wie erwartet
Bestellt, geliefert – Hydraulikmotor BM2 50 läuft.
27 January 2025 11:39
Passt
Hydraulikmotor BM2 50 passt, Einbau unkompliziert.
9 August 2023 17:45
Passt so
War das richtige Teil, alles okay.
9 February 2022 15:07
In Ordnung
Für den Preis in Ordnung, Versand normal.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-19453
- Weight
- 15 kg
