Hydraulic motor BM2 200 cm3 slow engine BMR OMR SMR + BUSHING
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information

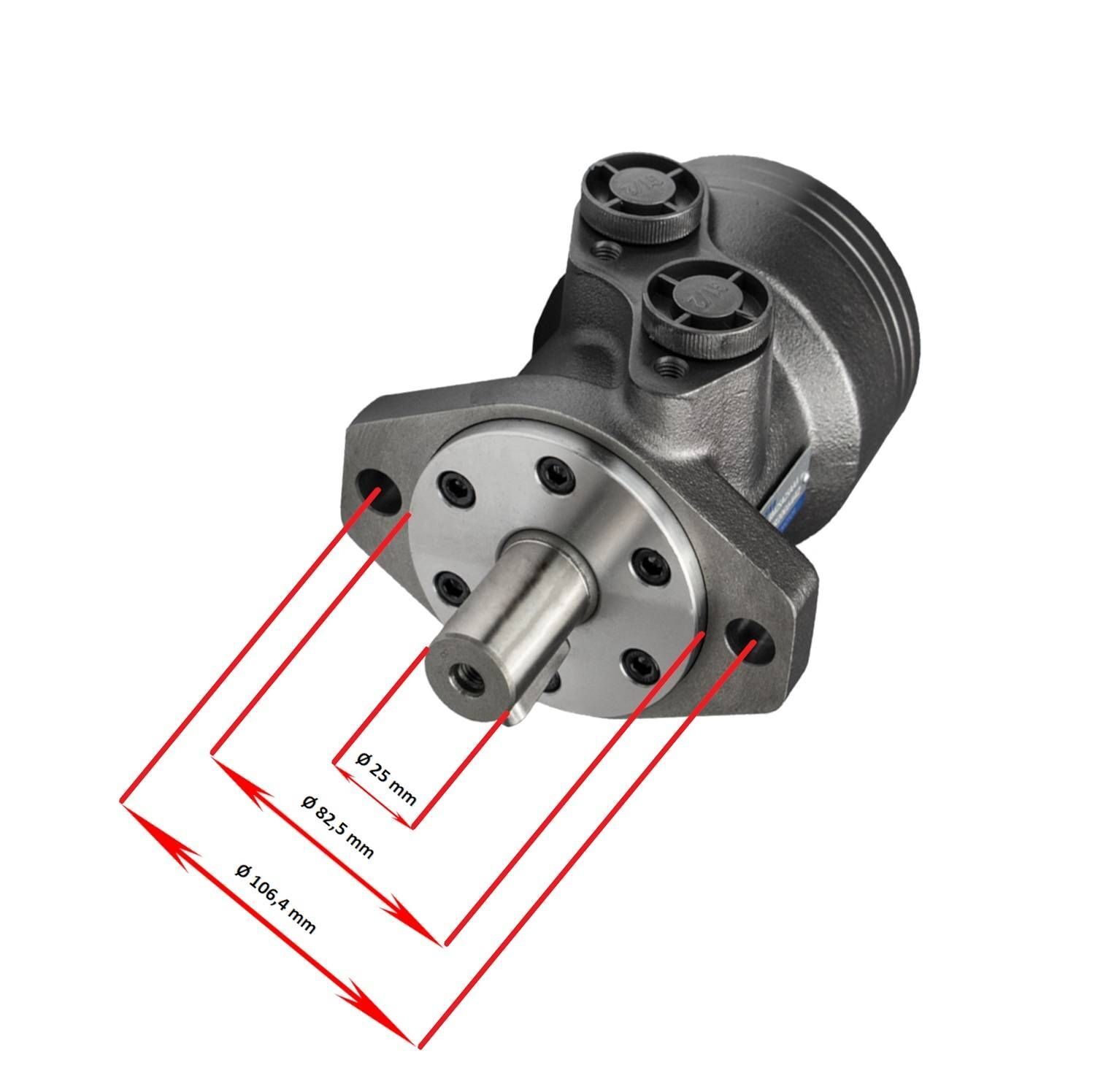

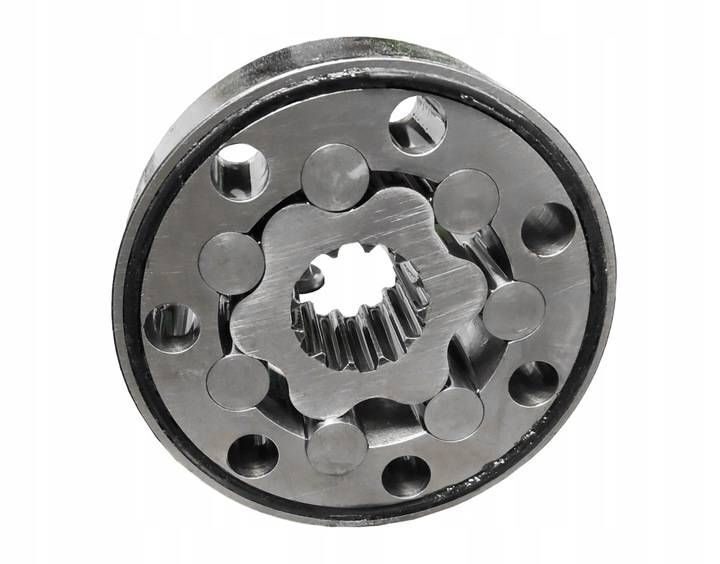

Orbital hydraulic motor (gerotor) with a capacity of 200 cm³/rev, with G ½ inch connections, SAE A Corresponds to OMR 200 BMR200 ALSG2 200 Corresponds to M+S MR 200 Included in delivery of the connecting sleeve: Weldable sleeve on the shaft of the hydraulic motor - used to transmit rotation to the engine accessories.
Technical data
material weldable steel Total length: 70 mm Inner diameter: 25 mm Outer diameter: 45 mm Security: 8 mm keyway Shaft diameter: Ø25x40 mm Thread and shaft: M8 BASIC INFORMATION Absorbency 200 cm 3 / giant. Connections G ½" (WSPP¹) Mounting flange according to SAE-A standard Drive shaft journal C25 Continuous operation parameters Maximum speed (continuous) 282 images/min Maximum torque (continuous) 292 Nm Maximum output power (continuous) 8.24 kW Maximum flow (continuous) 60 l/min Maximum supply pressure (continuous) 120 bar Temporary operating parameters Maximum speed (current) 310 images/min Maximum torque (current) 400 Nm Maximum output power (current) 15.45 kW Maximum flow (current) 75 l/min Maximum supply pressure (current) 175 barLogin
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-16993
- Weight
- 21 kg
