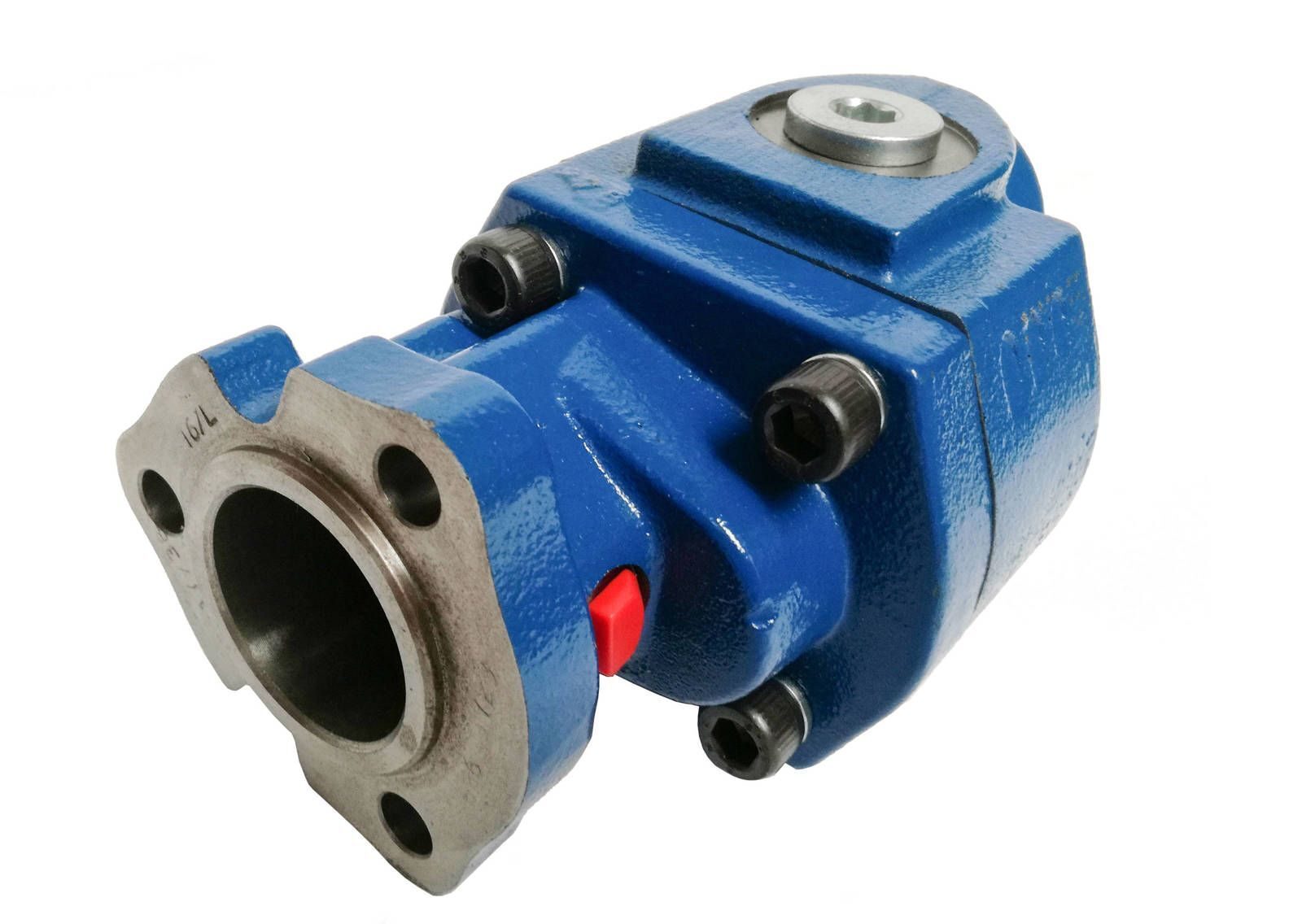

Hydraulic gear pump, 200BPS02200, Hydrocar BPS 22, right / for both directions of rotation, UNI
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
Geometric working volume 20.5 cm 3 /giant
Flow capacity (at 1000 rpm) 20.5 l/min Maximum working pressure (continuous) 260 bar Direction of rotation¹ Universal Maximum speed (continuous) 2000 images/min Minimum speed 450 images/min Drive shaft journal B13 × 19 × 22, UNI (DIN 5482) Mounting flange according to UNI standard (3 holes) Typical use Truck Country of origin Italy MORE INFORMATION Torque (at maximum pressure) Curb weight 6.2 kg Oil operating temperature (permissible range) -10–80 °C Recommended oil viscosity² 12÷100 cSt Axial length after assembly 157.5 mm Cross section 117×? mm Suction connection internal thread G ½" (according to BSPP³) Pressure connection internal thread G ½" (according to BSPP³) The direction of rotation can be determined by looking at the pump from the end of the shaft. Right direction – clockwise, left direction – counterclockwise. Operating the pump in the wrong direction of rotation can cause damage to the pump. According to the 5th European Commission Mining Safety Report, the pump is not designed to operate with oil-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD). British Standard Pipe Parallel Parallel, inch parallel thread, one of the Whitworth (BSP) pipe threads, marked with the letter G.
Login
6 reviews
14 June 2026 19:59
Keine Beanstandung
Hydraulische Zahnradpumpe erfüllt den Zweck, alles okay.
22 July 2025 13:41
In Ordnung
Unaufgeregt in Ordnung, Lieferung war normal.
24 July 2024 14:30
Wie erwartet
Passt für den Garten, kam zügig.
10 August 2023 16:08
Okay
Hydraulische Zahnradpumpe erfüllt den Zweck, alles okay.
21 September 2022 18:22
Keine Beanstandung
Unaufgeregt in Ordnung, Lieferung war normal.
25 September 2021 08:36
Alles gut
Habe der Artikel bestellt – tut was es soll.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-14187
- Weight
- 30 kg
