Hydraulic distributor 4 SEK 40L SET Joystick Bowden cable front loader magnetic valve
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 20,00 kg
- Artikelnummer
- HT-17018

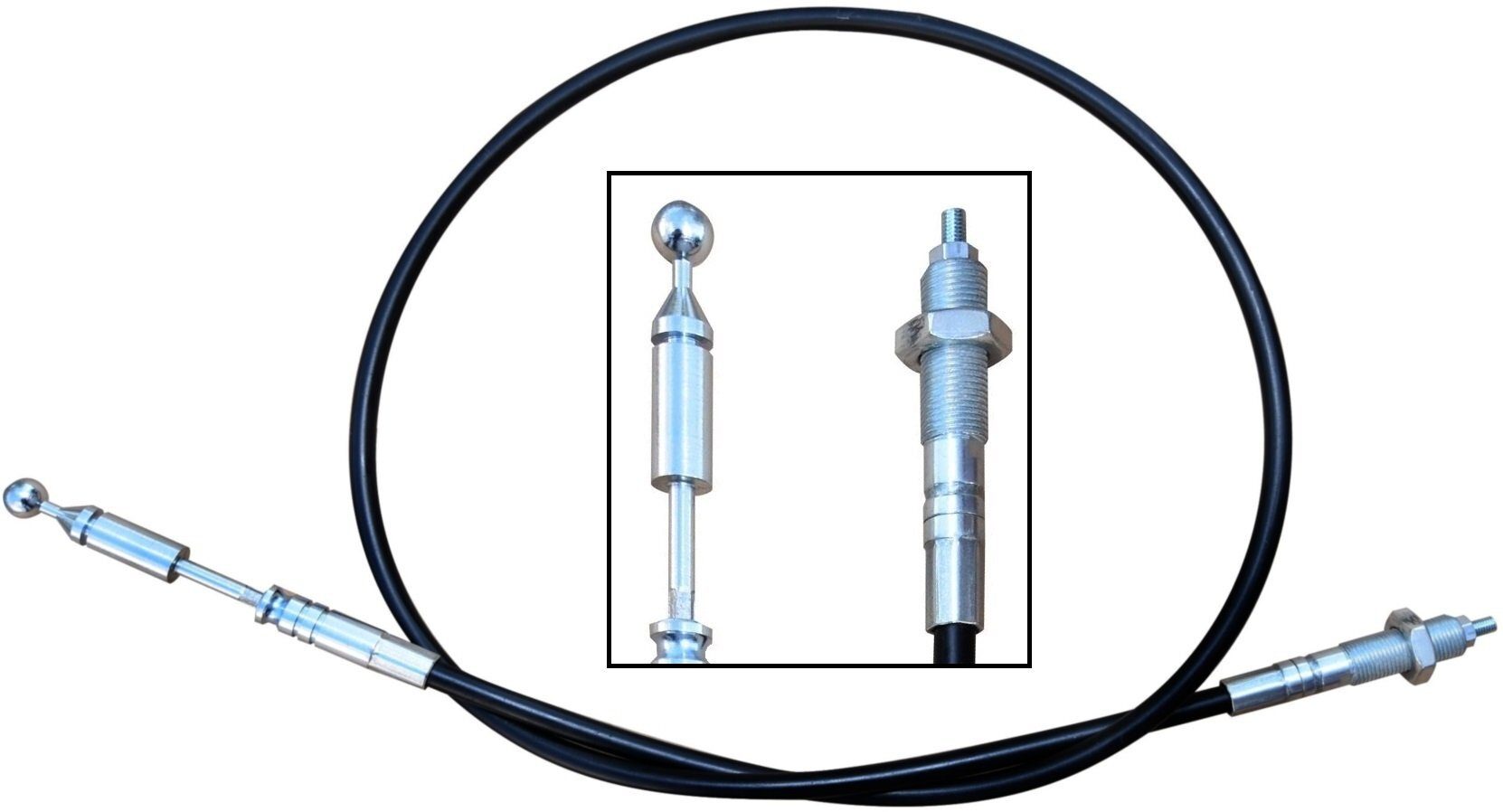

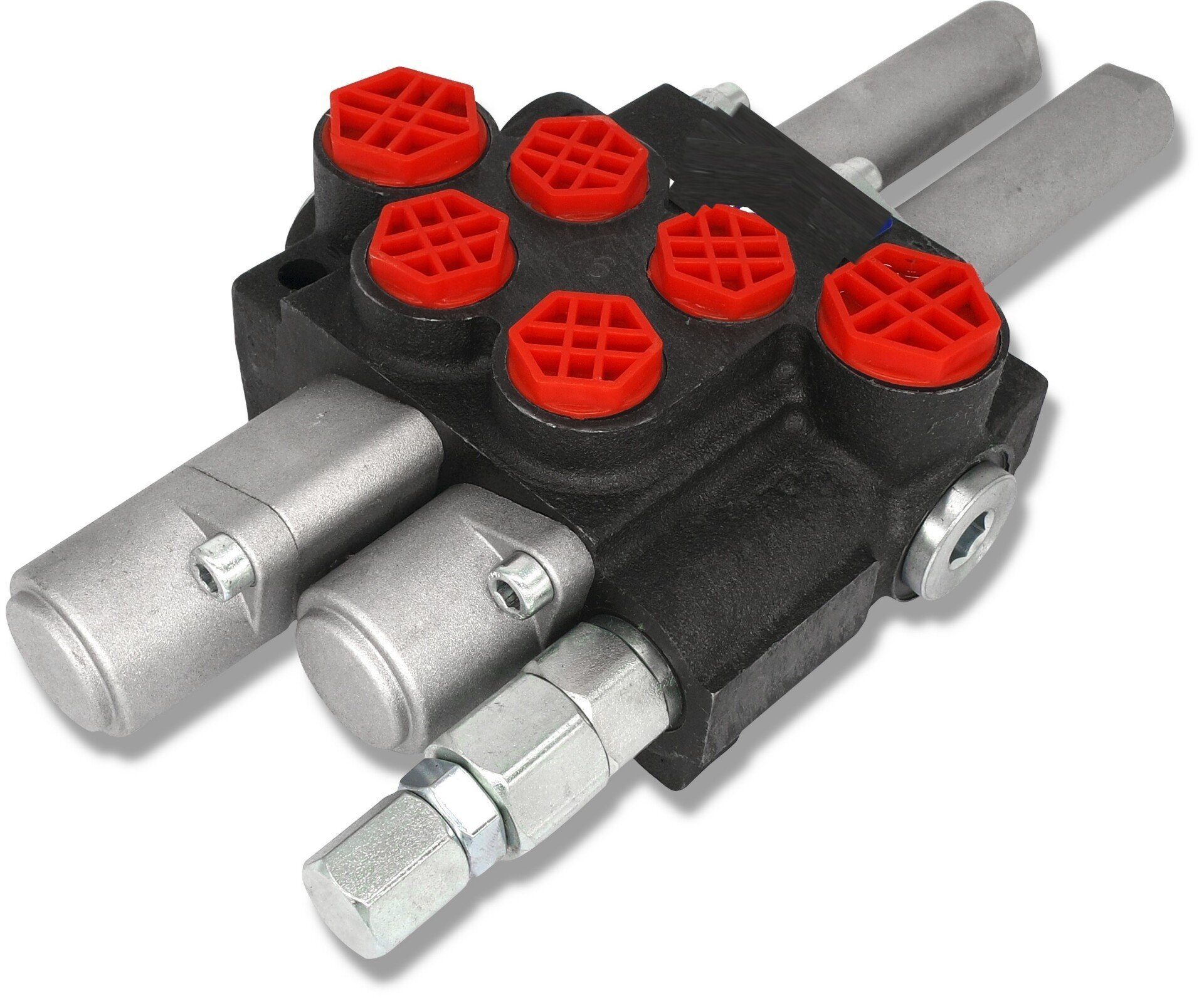

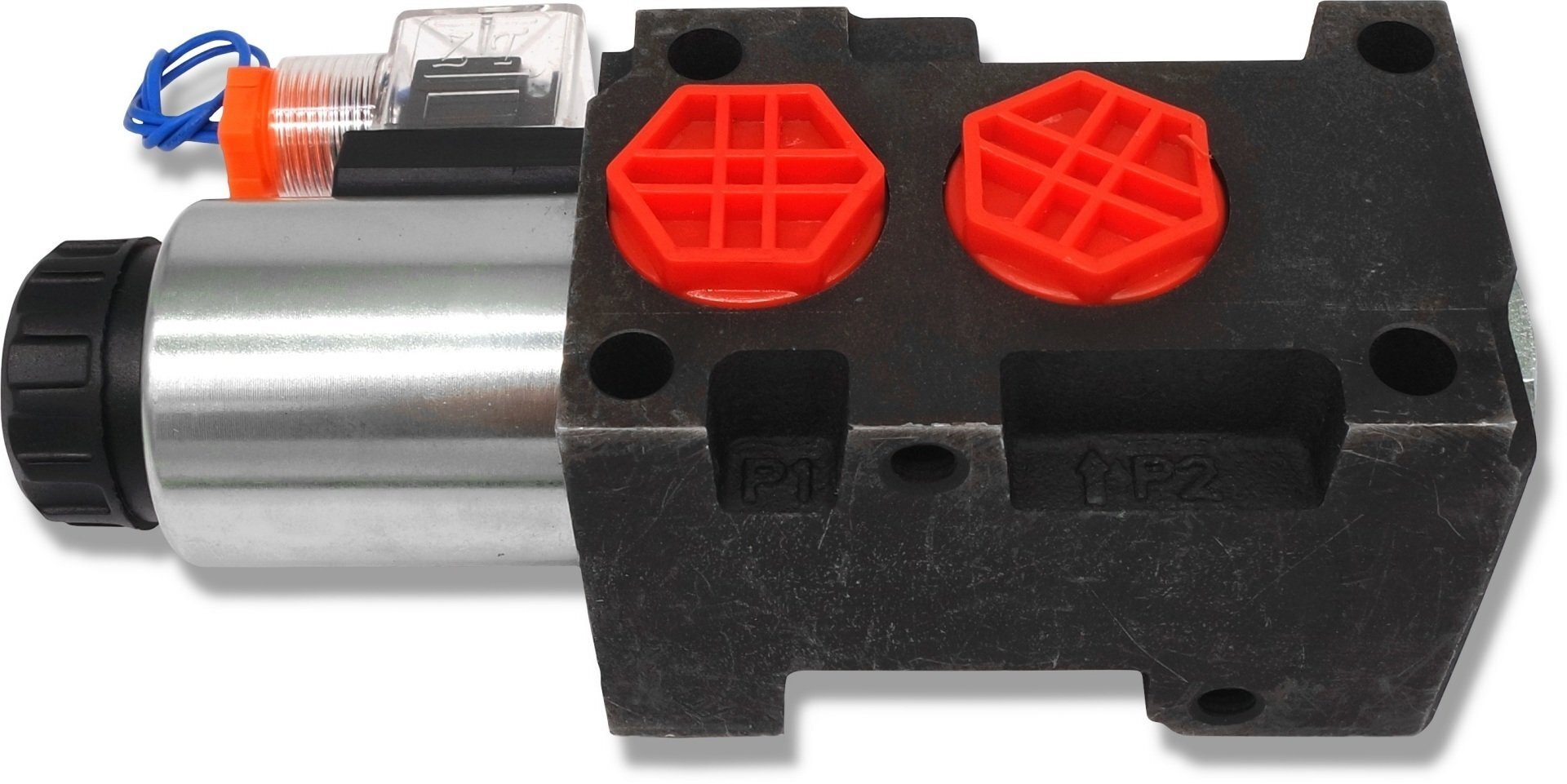

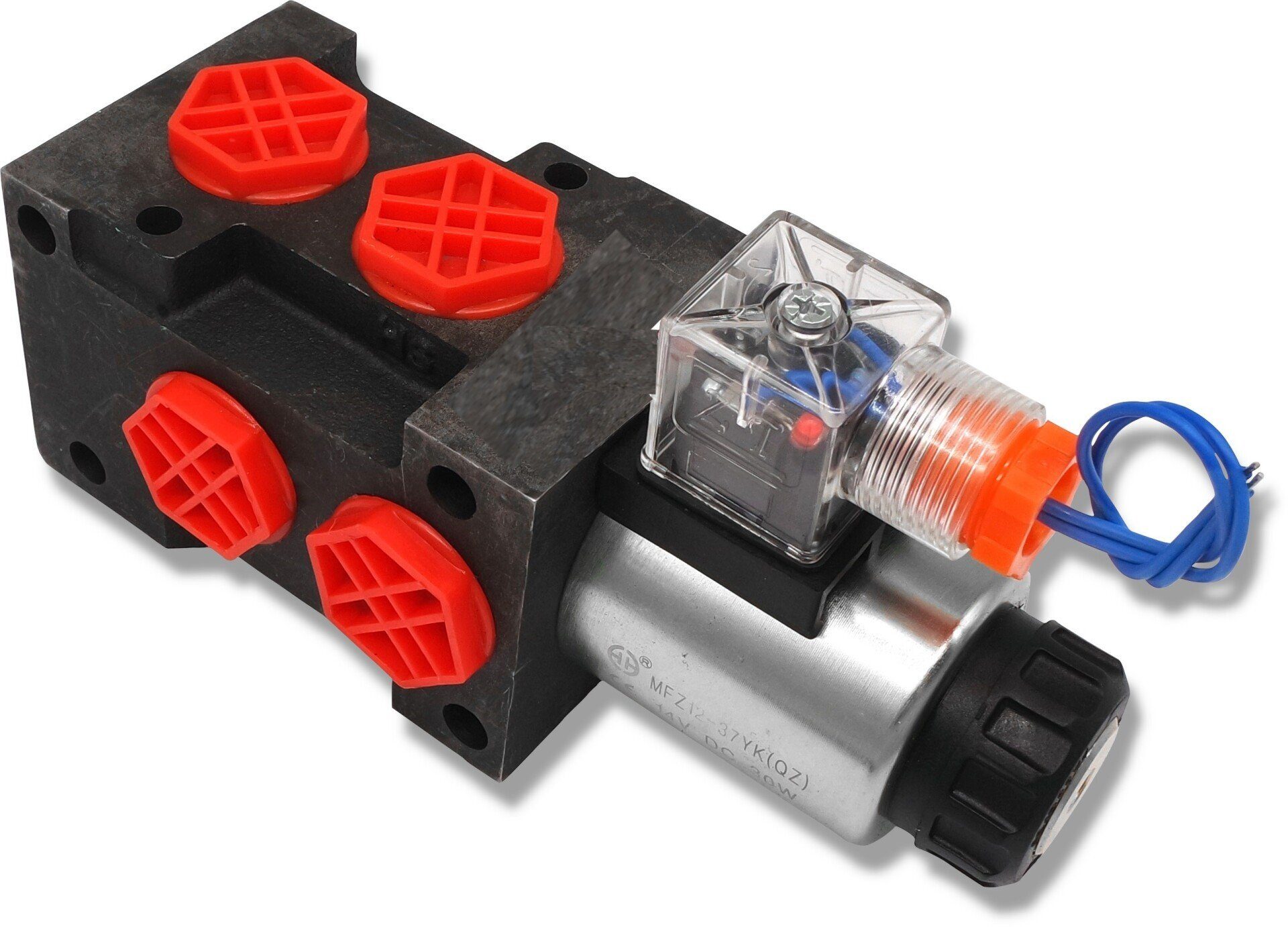

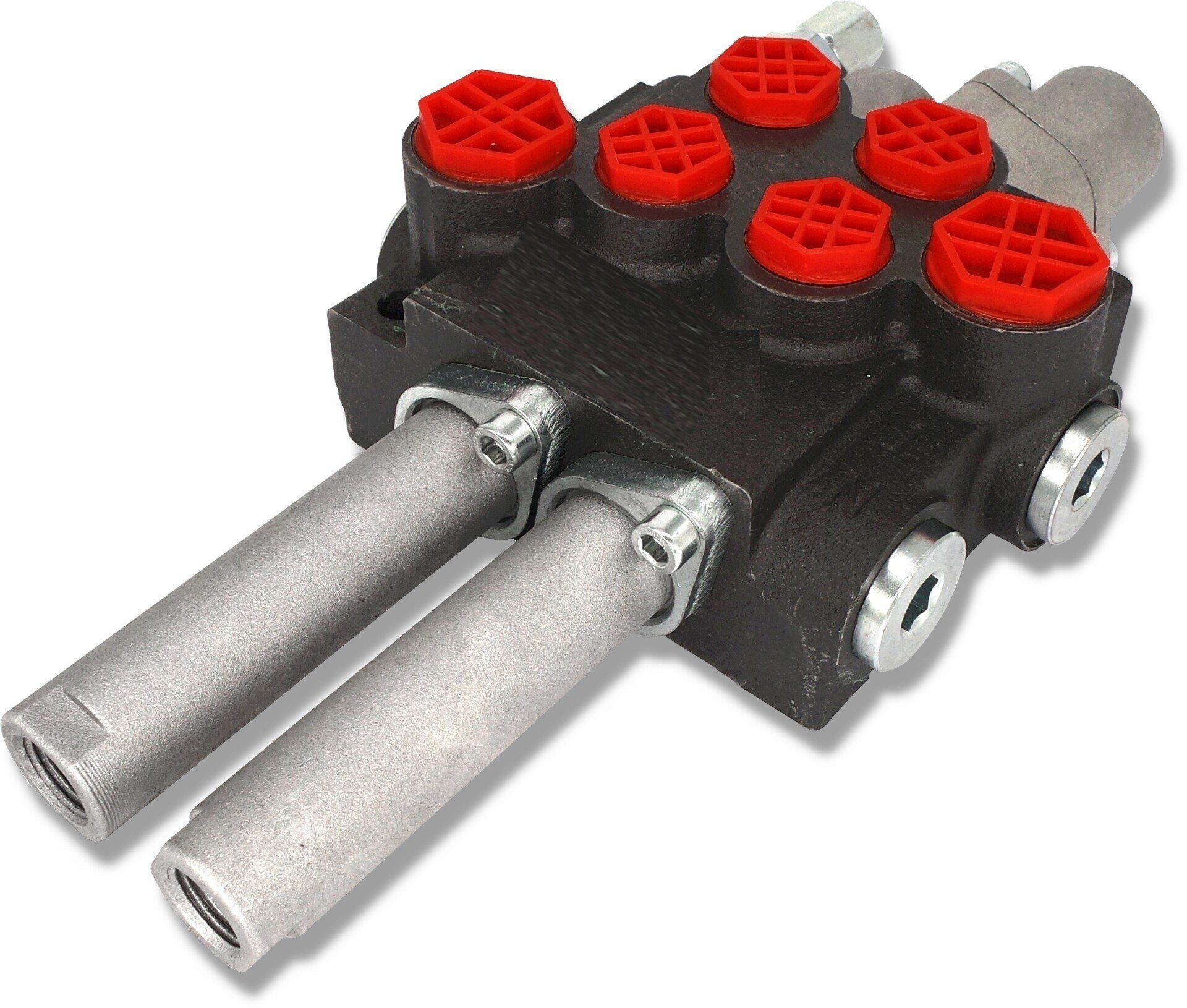

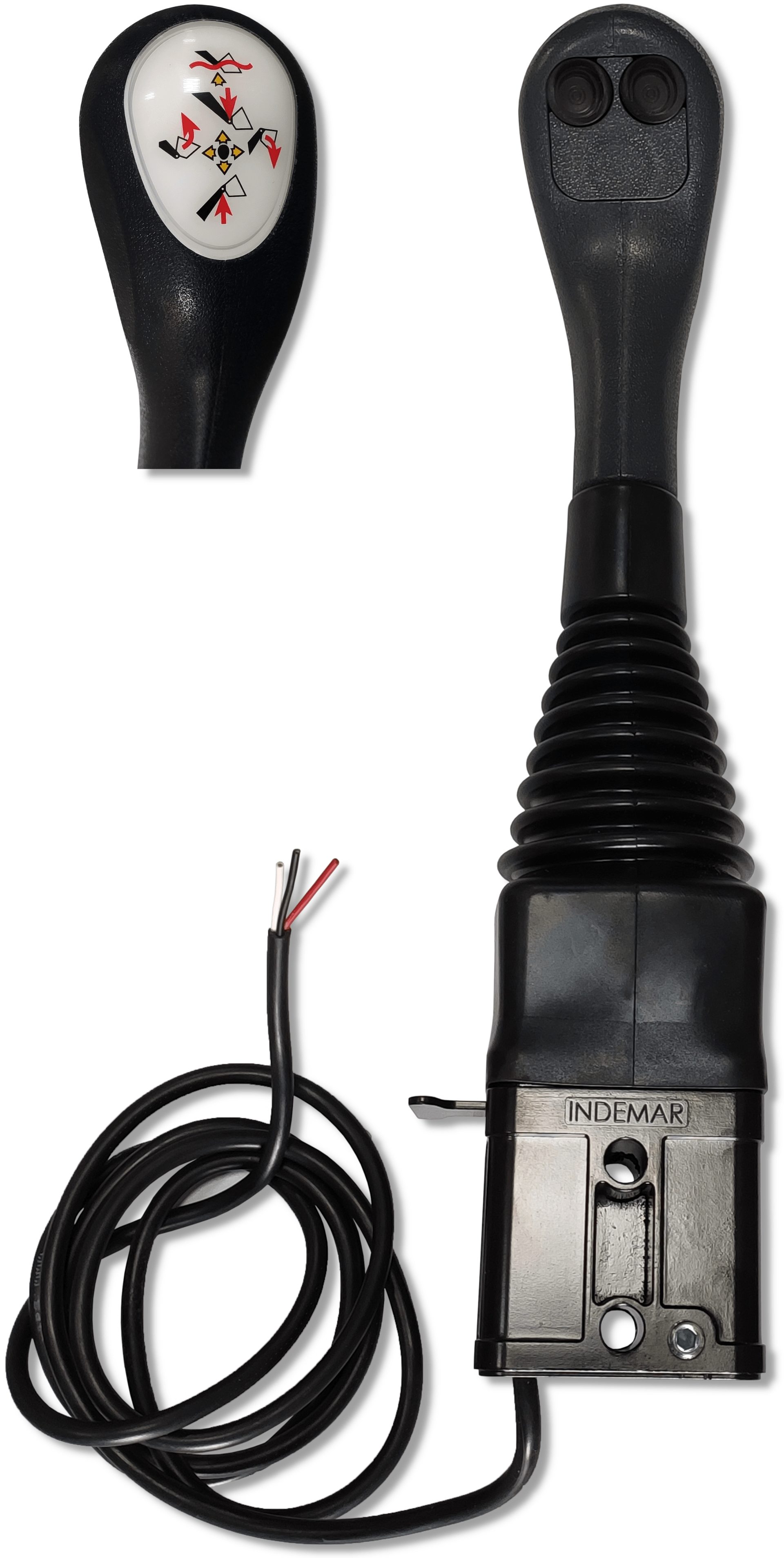

Hydraulic set 4 pieces 40L/min for TURA with floating part and locking for TURA Composition of the set: Joystick with 2 buttons 2x Bowden cables of each length selectable Hydraulic distributor for 2 section cables 40L/min - floating section + locking 2x solenoid valve - divider 6/2 12V 50L/min The set is perfect for hydraulically driven machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lift and tilt). The set has many advantages that affect the dyn

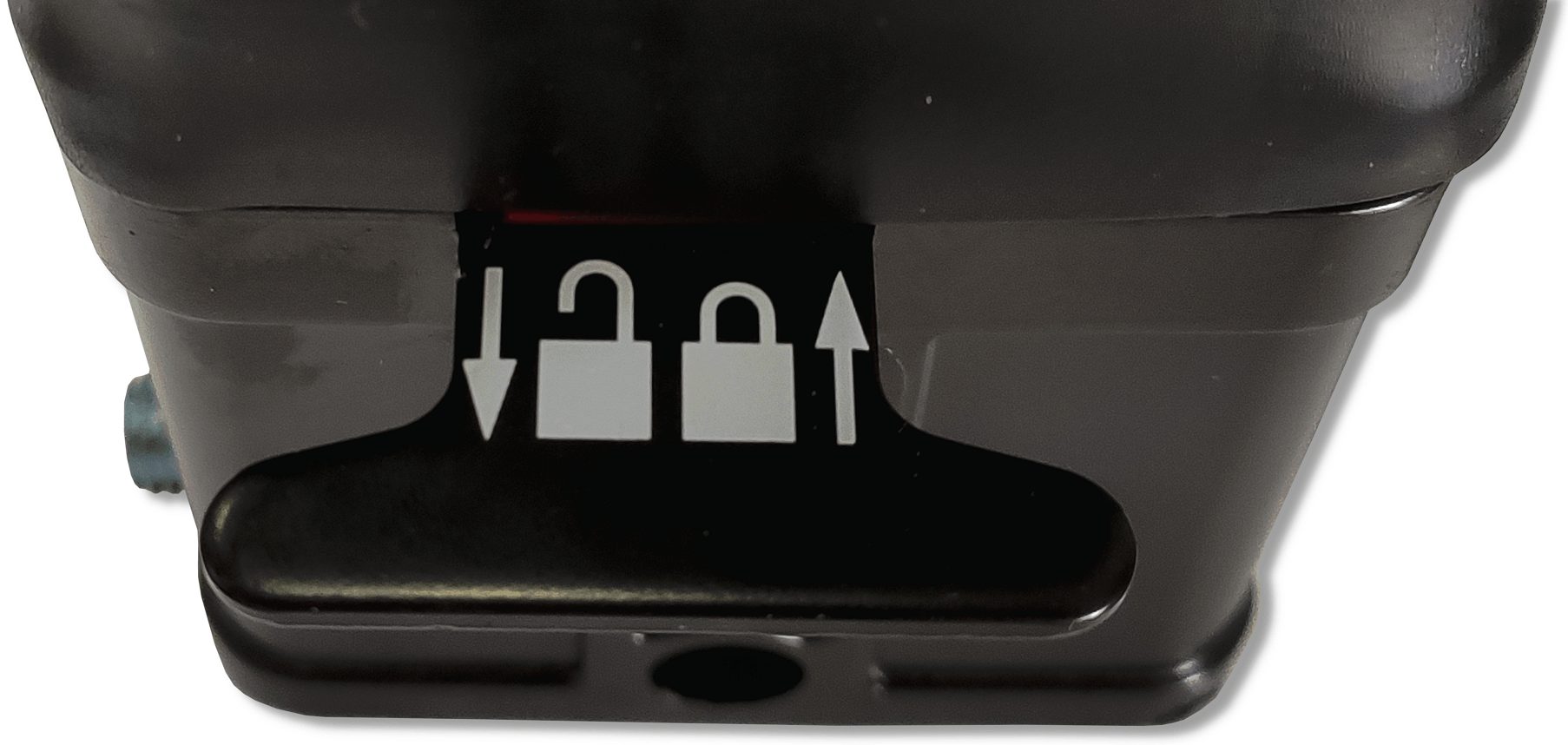

Hydraulic set 4 pieces 40L/min for TURA with floating part and locking for TURA Composition of the set: Joystick with 2 buttons 2x Bowden cables of each length selectable Hydraulic distributor for 2 section cables 40L/min - floating section + locking 2x solenoid valve - divider 6/2 12V 50L/min The set is perfect for hydraulically driven machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lift and tilt). The set has many advantages that affect the dynamic, fast and safe control of the machine. It can be used in agriculture, horticulture, forestry or construction. It is adapted for: agricultural machinery, tractors, sprayers, rotations, cyclops, HDS loaders, construction machinery, loaders, excavators, sweepers, industrial machinery and others. Three-stage slider (1 - 0 - 2) with locking with a lock, that is, it holds the position in the working position Position 0 Neutral (joystick set vertically - the cable is loose) Cylinder rod stand - oil goes to the overflow. Working position 1 (joystick positioned diagonally forward) of the cylinder rod slides out. In working position 2 (joystick positioned diagonally backwards), the cylinder piston rod retracts. Slider with three positions (1 - 0 - 2) on the spring itself returns to the vertical Supply (P) BSP 1/2'' Back (T) BSP 1/2'' Exit to sections BSP 3/8'' Connect BSP 1/2" Technical data: Oil flow: 0 - 40 l/min Maximum operating pressure: 250 bar Permissible ambient temperature: -40°C to +60°C Permissible oil temperature: -15°C to +80°C Equipped with a safety valve. Solenoid valve 6/2 12V 50 l/min with plug This solenoid valve is an ideal solution if the hydraulic distributor used (to control the actuator) lacks an additional section for controlling the next drive. Used in hydraulic control, usually in a 2-part distributor, e.g. Gripper, crocodile, etc. It is possible to combine in series. High quality solenoid valve, characterized by compact design, stable operation and high versatility. Technical data: Thread (BSP): 1/2" Maximum oil flow: 50 l/min Voltage: 12V Maximum operating pressure: 315 bar Permissible ambient temperature: -40°C to +60°C Permissible oil temperature: -15°C to +80°C
Login
4 reviews
7 July 2026 09:01
Unkompliziert
Unkompliziert geliefert.
3 October 2025 15:55
Okay
Das Produkt wie beschrieben, passt.
20 December 2024 09:37
Macht seinen Job
Kurz: okay.
31 March 2024 15:07
In Ordnung
Passt bei mir.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-17018
- Weight
- 20 kg
