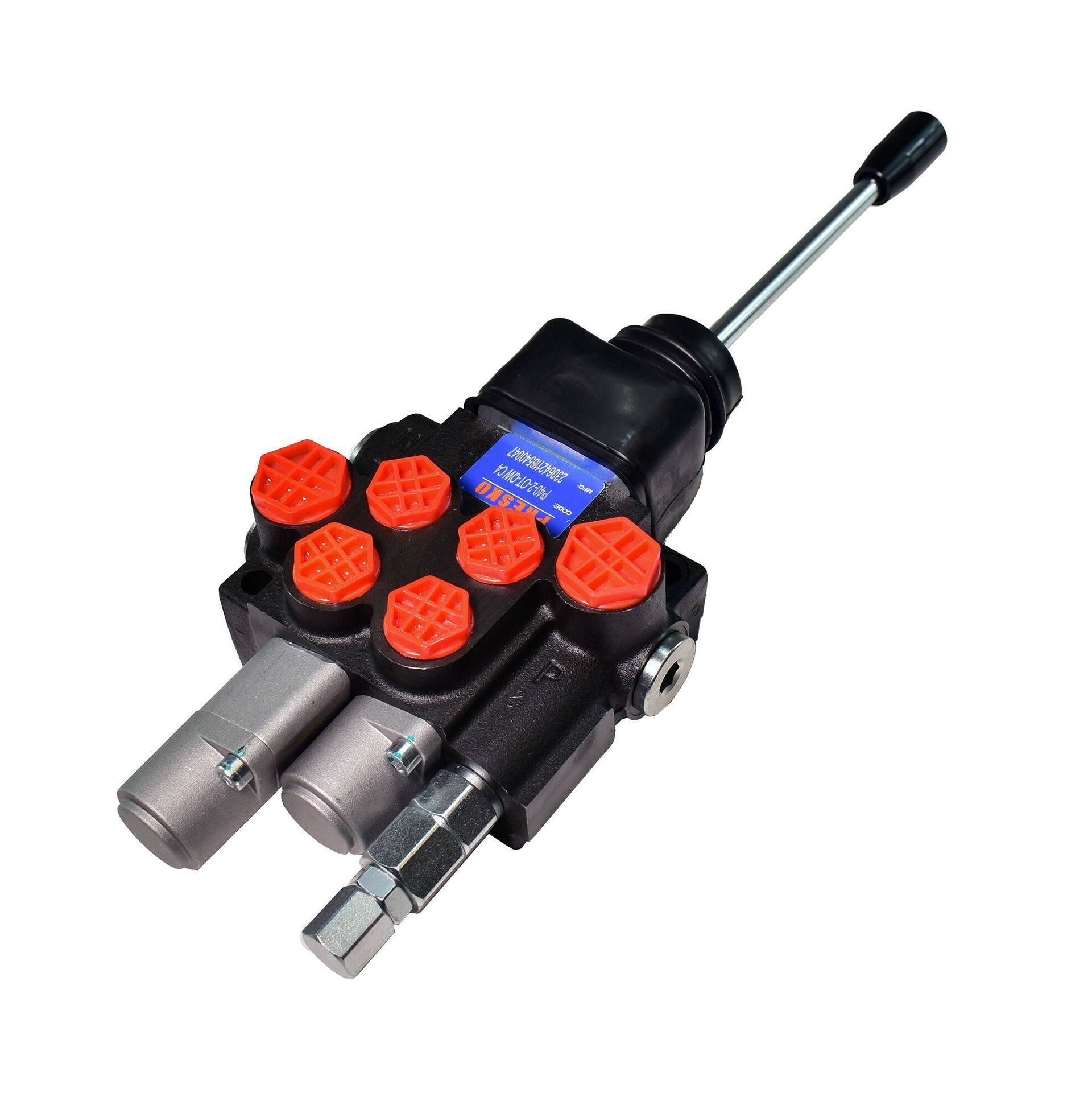

Hydraulic control valve P40-2-OT-QW, floating, 2-part
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 12,00 kg
- Artikelnummer
- HT-16999
BASIC INFORMATION Number of sections 2 Adjust safety valve 180 bar Maximum pressure 250 bar Maximum flow 40 l/min Section distance 35 mm Empty weight 4.57 kg Typical use Power hydraulics Connection: Power supply via the pump (P): BSP 1/2'' internal thread Return to tank (T): BSP 1/2'' internal thread Output in sections: BSP 3/8'' Internal thread Series connection (N): BSP 1/2" internal thread Adjustment of the first section: It automatically returns to the vertical position via a spring. Positio
BASIC INFORMATION Number of sections 2 Adjust safety valve 180 bar Maximum pressure 250 bar Maximum flow 40 l/min Section distance 35 mm Empty weight 4.57 kg Typical use Power hydraulics Connection: Power supply via the pump (P): BSP 1/2'' internal thread Return to tank (T): BSP 1/2'' internal thread Output in sections: BSP 3/8'' Internal thread Series connection (N): BSP 1/2" internal thread Adjustment of the first section: It automatically returns to the vertical position via a spring. Position 0 Neutral - oil is directed to the overflow. Working position 1 - oil flow - the piston rod extends when the actuator is used Position 1 (lever tilted forward), the cylinder piston rod extends - working position 2 (lever tilted backwards), the cylinder piston rod retracts - floating position 3 with lock (Lever in the maximum forward position), the cylinder piston rod works freely, moves freely under the influence of the forces Distributor to connect with another distributor via a pressure sleeve 02P40 Hydraulic distributor, 2-piece We offer a two-piece monoblock hydraulic distributor equipped with a control mechanism Light weight of 4.57 kg, distance between the successive sections of 35 mm It holds a maximum working fluid flow of 40 l/min. Our professional products are widely used in machinery for agriculture, construction and heavy industry. Contact our consultant and choose a 2-piece hydraulic distributor that is tailored to your needs.
Login
2 reviews
22 July 2026 17:45
Okay
Keine Beanstandung.
8 May 2023 15:31
Schnell da
Für den Preis in Ordnung.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-16999
- Weight
- 12 kg
