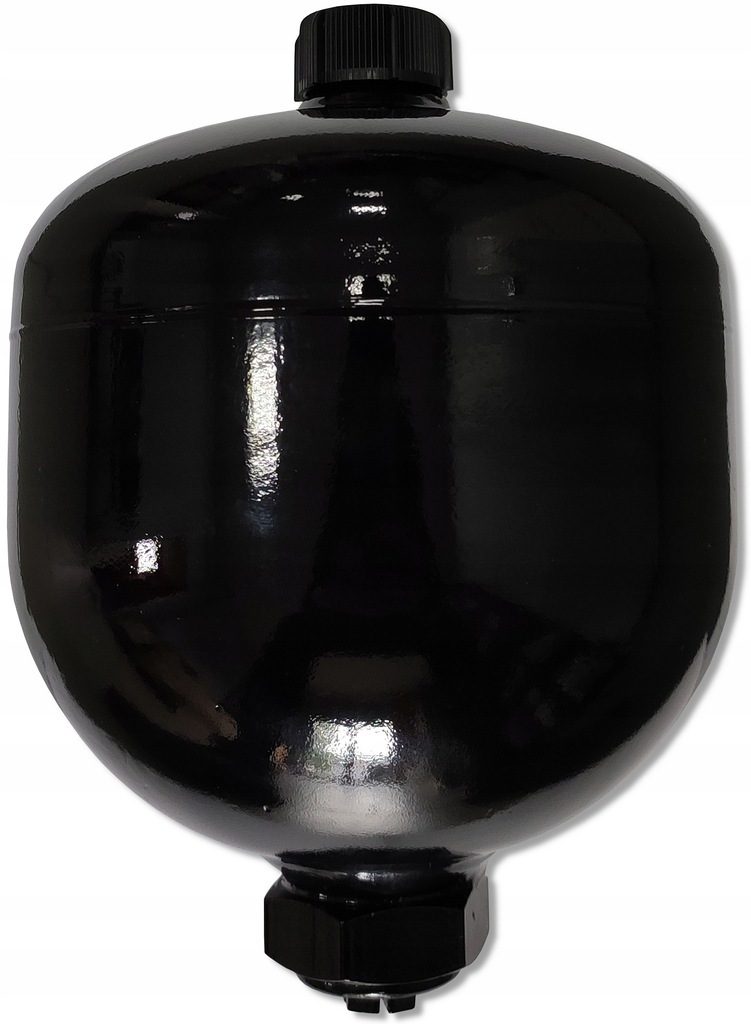

Hydraulic accumulator 0.75 L 1/2 HYDRAULIC SHOCK ABSORBER Agricultural machinery Construction machinery

FILLING TO THE SPECIFIED PRESSURE FREE OF CHARGE AT THE CUSTOMER'S REQUEST It is perfect for hydraulically driven machines and devices

Product features

• FILLING TO THE SPECIFIED PRESSURE FREE OF CHARGE AT THE CUSTOMER'S REQUEST It is perfect for hydraulically driven machines and devices
• It can be used in agriculture, horticulture, forestry and construction
• They are used in TUR front loaders, agricultural machinery, plows, aggregates, construction machinery, cranes, etc., i.e. machines that are subject to rapid pressure changes in the hydraulic system
• The role of the accumulator The purpose of the accumulator is to store pressurized oil in the hydraulic system and restart it when necessary to dampen shocks and reduce pressure surges
• Its main function is fulfilled in the following aspects: As auxiliary energy For an emergency power source Filling losses and maintaining a constant pressure Hydraulic shock absorption Absorption of pulsations and reduction of noise The working principle of the shock absorber: The hydraulic accumulator essentially consists of a hydraulic element and a gas element with gas-tight separation
• The oil section is connected to the hydraulic flow path
• When the pressure increases, the gas is compressed and the liquid flows into the hydraulic accumulator
• When the pressure drops, the compressed gas expands and releases the stored liquid into the pipeline
• Accumulators should be selected based on the following dependencies: What function will it have in the hydraulic system? The capacity of the hydraulic accumulator increases in proportion to the capacity of the cylinders
• The higher the load on the cylinders, the higher the pressure in the hydraulic accumulator
• Technical

Specifications

The accumulators are filled with nitrogen at the factory at 60 bar. They have a built-in mechanism that allows you to safely and easily reduce nitrogen pressure as needed. Internal thread in the body: G1/2" External thread of the gas connection: M28x1.5 Total capacity of the shock absorber: 0.75 l Maximum pressure: 210 bar Housing material: cast iron Temperature range: Permissible ambient temperature: -30°C to +80°C Permissible oil temperature: -30°C to +80°C Oil type: Mineral oil-based hydraulic oil
