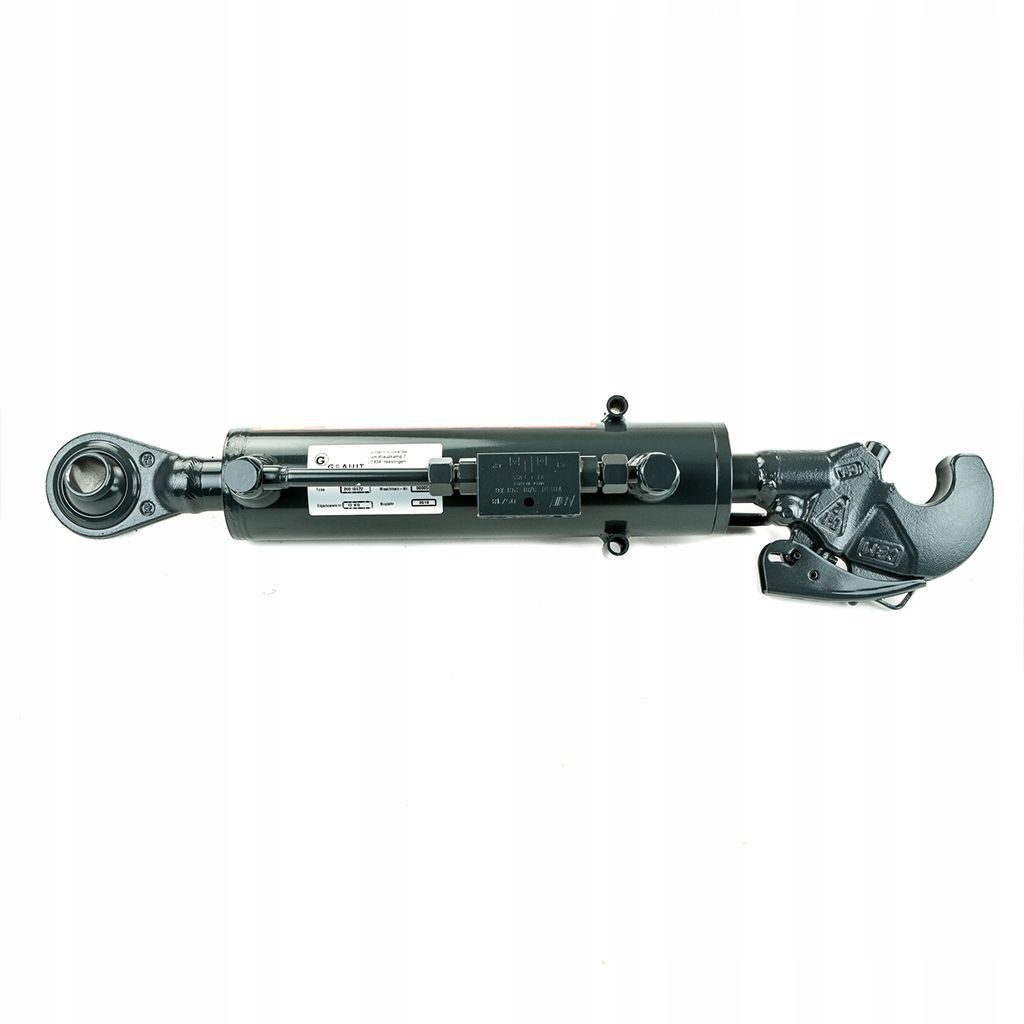

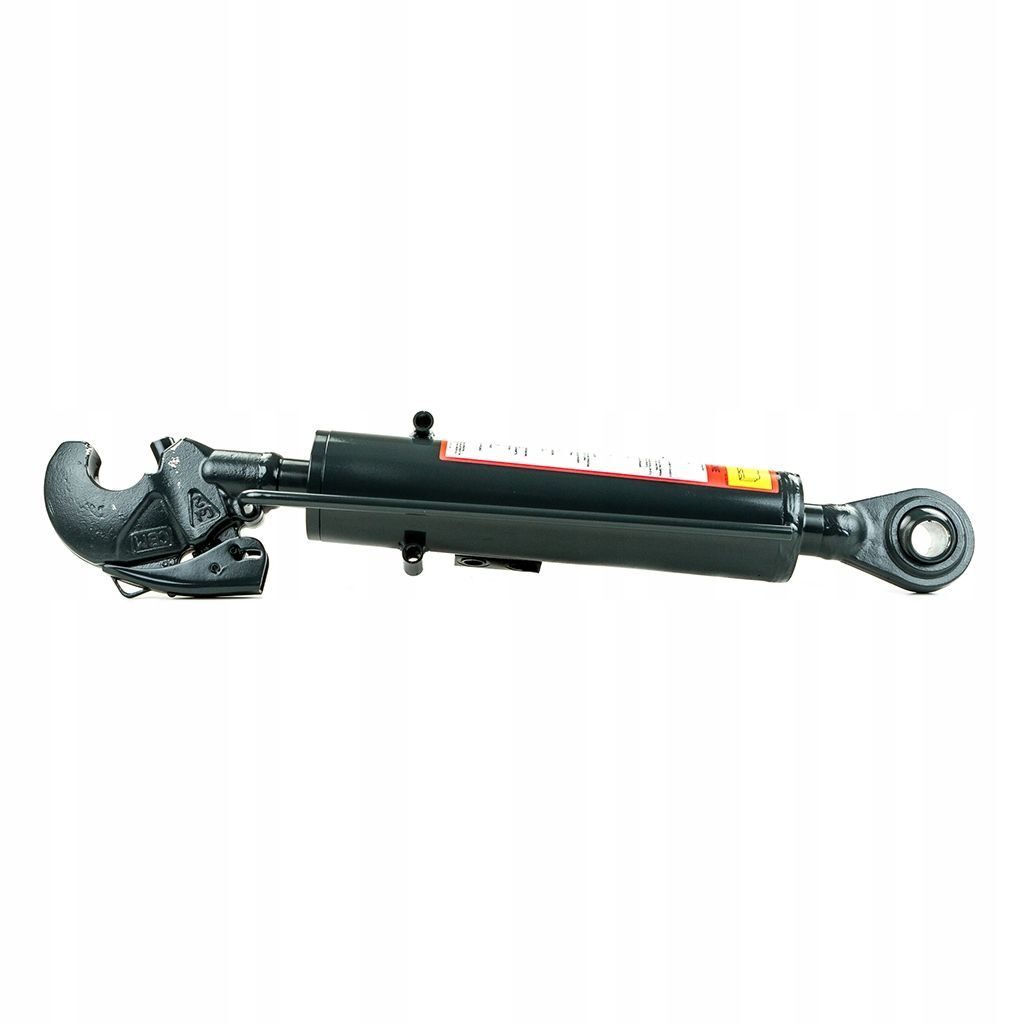

Hydraulic Top Link Central Link Central Connector Hook Joint Central Connector Hydraulic Top Link Category 2-2 Set
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 25,00 kg
- Artikelnummer
- HT-15989

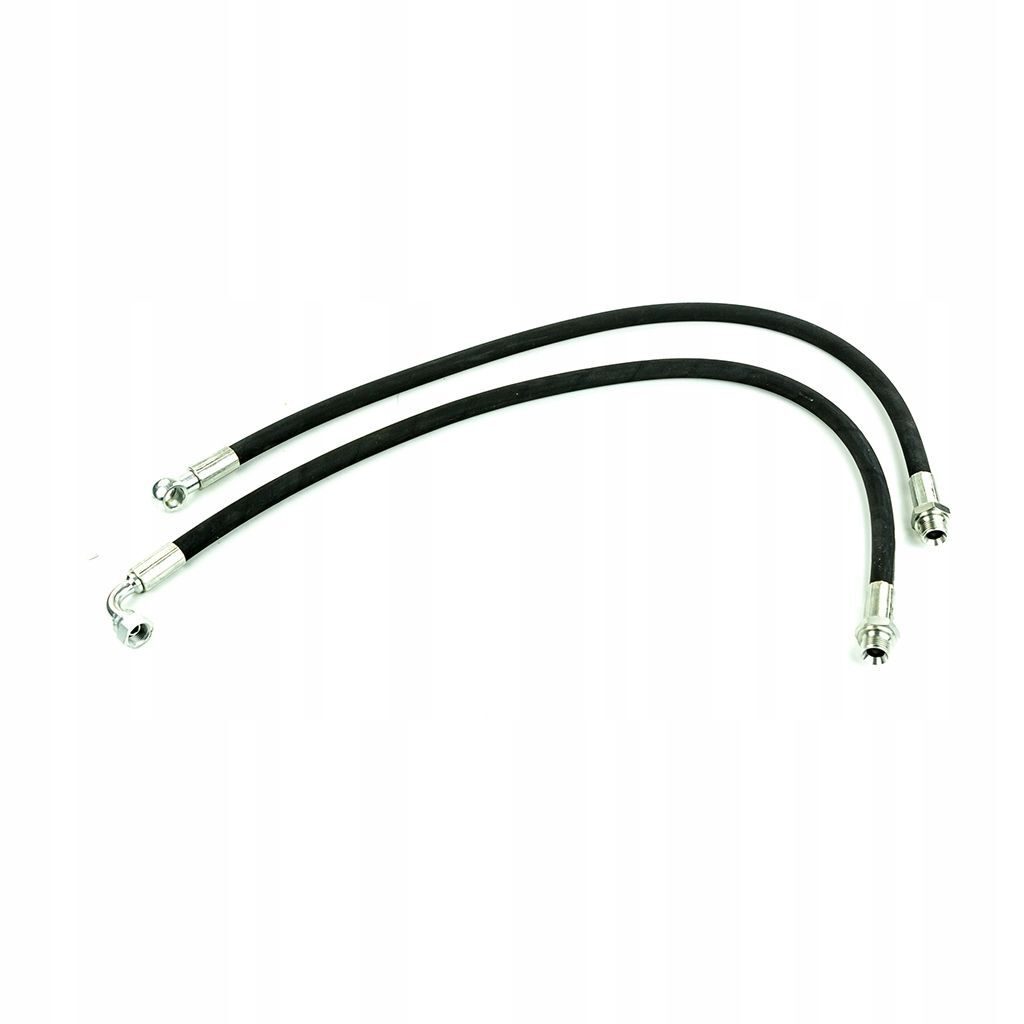

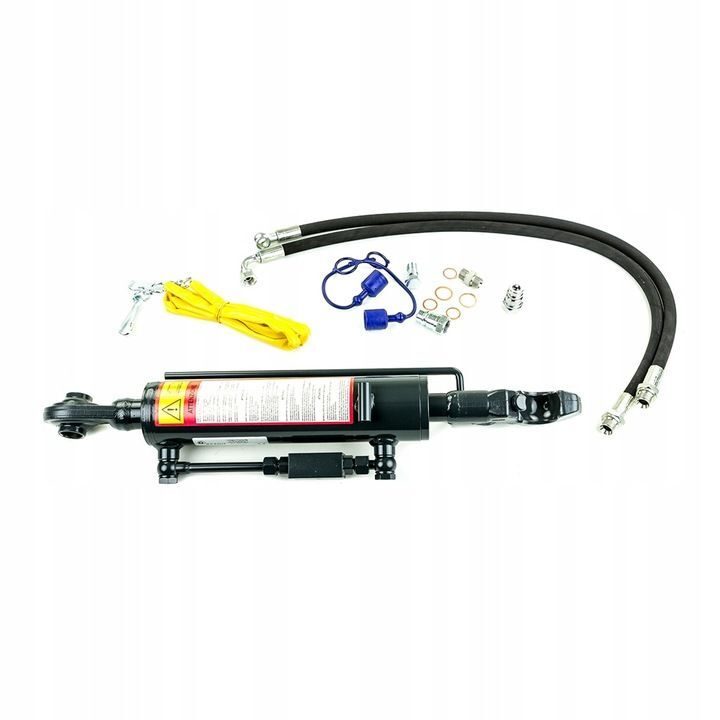

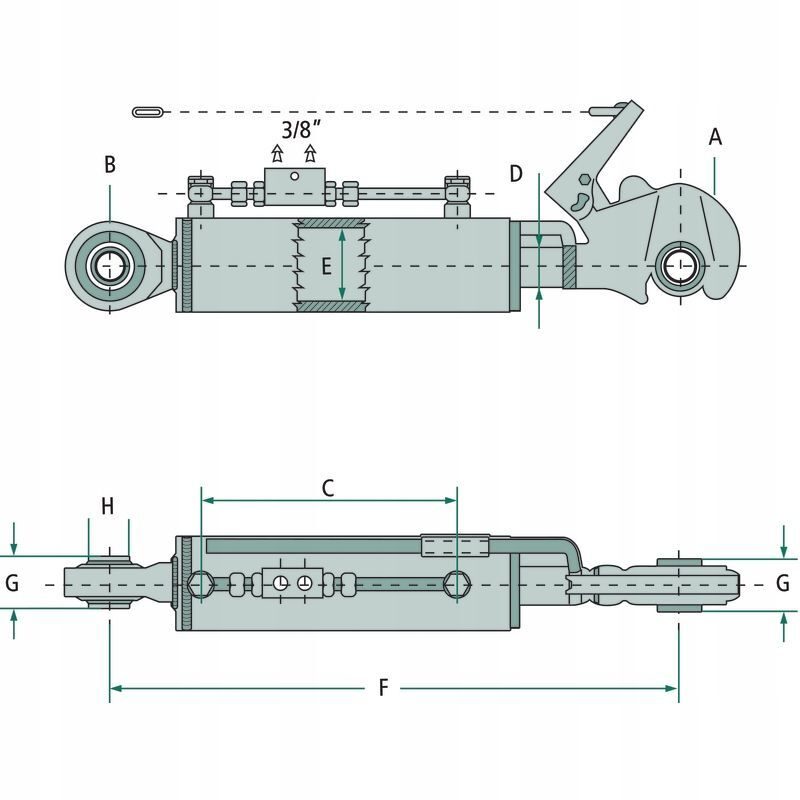

Technical data Technical parameters Cat. no. A: 2 Cat. B: 2 Diameter C (mm): 220 Ø tloczyska D (mm): 35 Mi. int. E of the cylinder (mm): 70 F min. (mm): 570 F power. (mm): 790 G (mm): 51 H (mm): 25.4 Lifting force (t): 6 Pulling force (t): 5 F (mm): 570 / 790 Cat. no. A/B: 2 / 2 no adjustment possible Each upper connection contains: Side locking pull force (t): 5 Mi. 2F performance. (mm): 790 F min. (mm): 570 1 double-acting cylinder 1 automatic locking with double valve 2 hydraulic hoses with c
Technical data Technical parameters Cat. no. A: 2 Cat. B: 2 Diameter C (mm): 220 Ø tloczyska D (mm): 35 Mi. int. E of the cylinder (mm): 70 F min. (mm): 570 F power. (mm): 790 G (mm): 51 H (mm): 25.4 Lifting force (t): 6 Pulling force (t): 5 F (mm): 570 / 790 Cat. no. A/B: 2 / 2 no adjustment possible Each upper connection contains: Side locking pull force (t): 5 Mi. 2F performance. (mm): 790 F min. (mm): 570 1 double-acting cylinder 1 automatic locking with double valve 2 hydraulic hoses with connection
Login
5 reviews
11 July 2026 13:41
Macht seinen Job
Kam in normaler Zeit, okay.
20 January 2025 14:30
Schnell da
Alles normal gelaufen.
22 August 2023 08:00
Okay
Ordentlich, reicht so.
10 March 2022 14:06
Macht seinen Job
Unkompliziert geliefert.
2 October 2020 16:44
Macht seinen Job
Ordentlich, reicht so.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-15989
- Weight
- 25 kg
