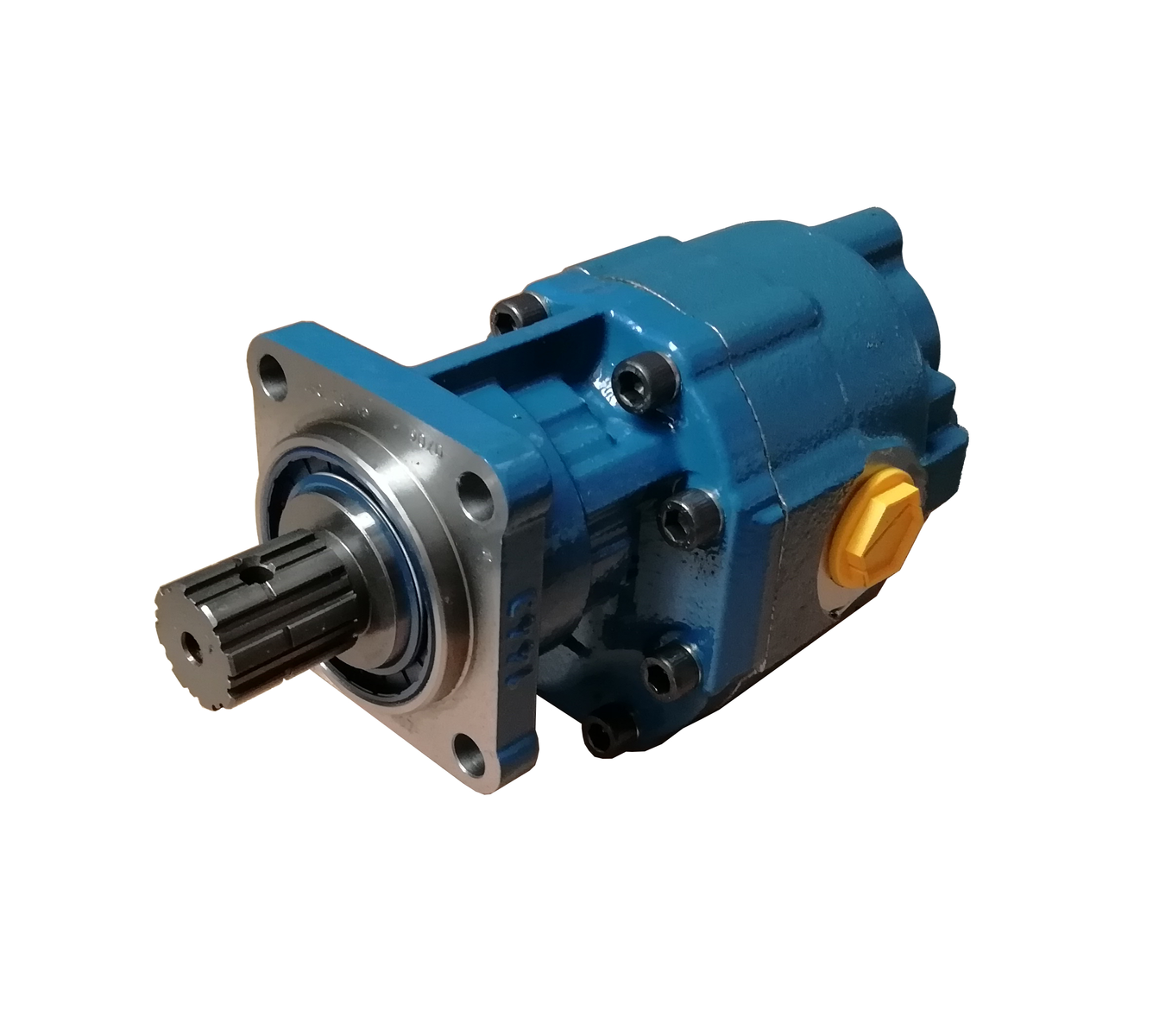

Hydraulic Gear Pump 200FZ0090DV Hydrocar FZ0 90V Clockwise ISO

External gear pump Hydrocar, type FZ0 90 V, flow rate 84 l/min (at 1000 rpm), clockwise rotation¹, with shaft end according to ISO 14:1982 (DIN 5462) Product features External gear pump Hydrocar, type FZ0 90 V, flow rate 84 l/min (at 1000 rpm), clockwise rotation¹, with shaft end according to ISO 14:1982 (DIN 5462) New version of the 200NFA90DV pump BASIC INFORMATION Geometric working volume 84.0 cm 3 /huge Flow capacity (at 1000 rpm) 84.0 l/min Maximum working pressure (continuous) 210 bar Direction of rotation¹ clockwise Maximum speed (continuous) 1500 images/min Minimum speed 300 images/min Drive shaft journal B8 ×32 ×36 ISO 14:1982 (DIN 5462) Mounting flange according to standard ISO 7653:1985 Typical use Truck Country of origin Italy MORE INFORMATION Torque (at maximum pressure) Curb weight 14.9 kg Oil operating temperature (permissible range) -10–80 °C Recommended oil viscosity² 12÷100 cSt Axial length after assembly 221.5 mm Cross section 150×120 mm Suction port internal thread G 1¼" (according to BSPP³) Pressure port internal thread G 1" (according to BSPP³) The direction of rotation can be determined by looking at the pump from the end of the shaft Right direction – clockwise, left direction – counterclockwise Operating the pump in the wrong direction of rotation can lead to Damage to the pump will result in a European Mining Safety Commission report, the pump is not designed to operate with oil-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) British Standard Pipe Parallel Parallel, inch parallel thread, one of the Whitworth (BSP) pipe threads, marked with the letter G
