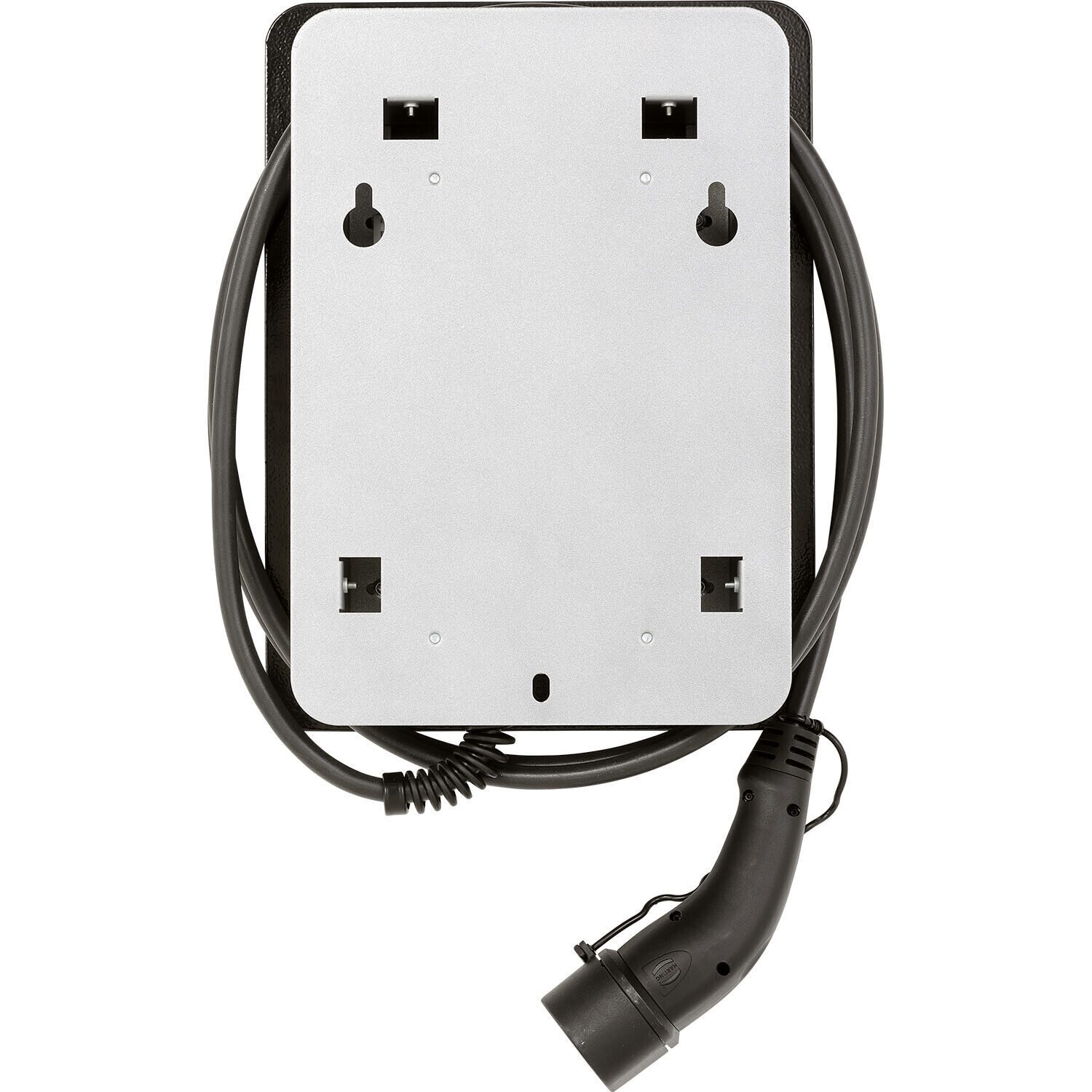

Heidelberger Home Eco Wallbox 11 kW incl. 5 meter long Type 2 cable

The operation of the wallbox was deliberately kept simple. The cable must be removed from the wallbox and plugged into the charging port of the vehicle. Once this is done, the box will automatically start charging. The charging process ends automatically when the charging plug on the side of the vehicle is unlocked. If the charging process is interrupted for any reason, the wallbox will automatically continue charging after the error has been corrected. Probably the easiest way to charge. Ready for use anywhere and intuitive to use, the wallbe® LEO wallbox works reliably and safely. You can charge your electric car quickly and easily. With the wallbe® LEO you can recharge your batteries safely and comfortably. All of our high-performance charging systems charge your electric vehicle's battery quickly, easily and conveniently. They are suitable for single households or multiple users who want to charge their vehicles. The wallbe® LEO is the intelligent socket for your electric car and ensures that it is always charged reliably and safely at top speed. The current status of the box can be seen from the light button (1) on the right side of the box: Standby = LED off Ready for use = green Charging in progress = flashing green The various error states can also be read via the LED (red or yellow) and can be diagnosed in more detail using the manual. Highlights Intuitively operated and cost-effective plug & charge solution Easy installation by an electrician or installation service Maintenance-free and therefore no follow-up costs Suitable for garages, carports or outdoor areas, but also for underground garages, apartment buildings, hotel parking lots, etc. For wall mounting or optionally free-standing with the matching wallbe® stainless steel stele Technical data Charging power per charging point 3.7 - 11 kW AC Nominal voltage 230 V / 400 V AC charging point Number 1 charging point Version 5 m charging cable, type 2 Conforms to calibration law No approval Plug & charge Residual current detection 6 mA DC (integrated) Status information Push button with LED display Protection class IP54 Operating temperature -25 to +40 °C Dimensions (H x W x D) 386 x 295 x 117 mm Weight approx. 8 kg Safety note: The wallbox may only be put into operation by a qualified electrician. This results in a number of new legal and technical requirements for installers and operators that must be observed. Based on the “Technical Guide for Charging Infrastructure” from the National Electromobility Platform, a commissioning process for charging stations/wallboxes has now been created in accordance with the currently applicable laws, standards and regulations. Wallboxes / charging units / charging stations may only be installed by the following companies: Certified electrical specialist company Electromobility Due to the DIN VDE 0100-722 standard, the installation of an FI circuit breaker and DC error protection is mandatory for wallboxes. The installation or final inspection must be carried out by a certified/certified electrician. The following points must be taken into account before / during installation: Determination of the size, power, etc. of the electrical system (charging device), taking into account the network connection conditions of the network operator (TAB 2007 and additional technical requirements) Ensuring safe operation in accordance with EnWG Safety testing based on specified minimum requirements Operational safety testing by a qualified electrician (commissioning)
