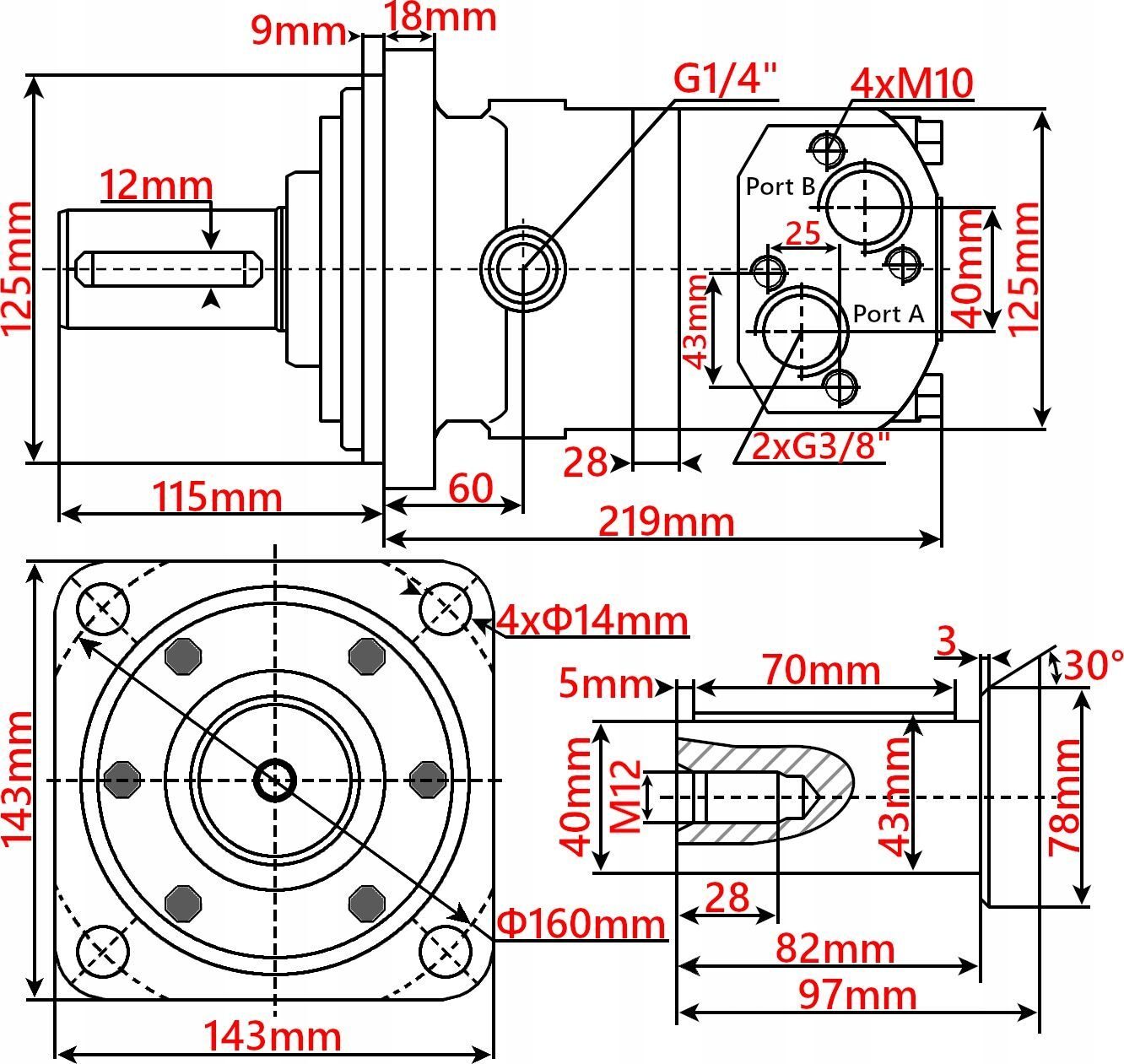

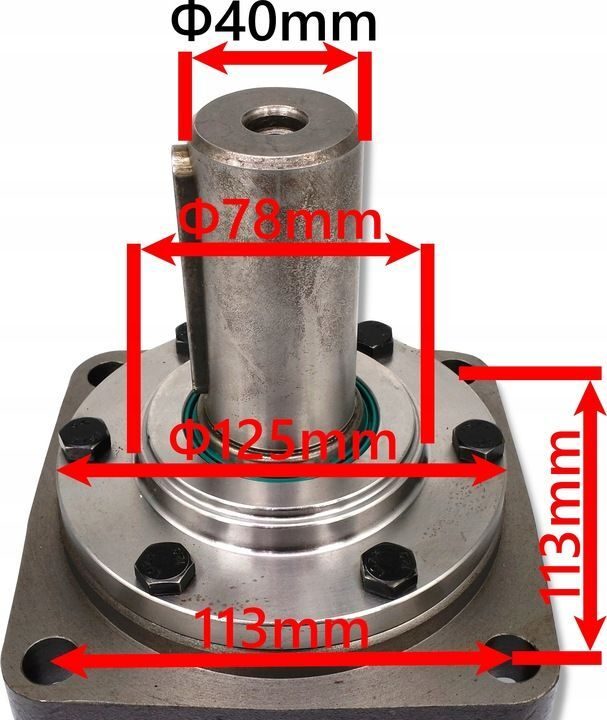

HYDRAULIC MOTOR GROUP 4 BMT 400cm3 shaft 40 mm

Reinforced bearing system (DOUBLE BEARING) – enables a very long and stable operation of the motor by balancing the forces acting on the motor shaft Product features Reinforced bearing system (DOUBLE BEARING) – enables a very long and stable operation of the motor by balancing the forces acting on the motor shaft Relief and check valve – influences the long-term and trouble-free operation of the motor in various weather and load conditions Special seals – protect the motor in different operating ranges irreplaceable from oil leaks Housing made of suitable metal alloy - temperature and weather resistant Application: It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and generally understood industries Motors with the same dimensions carry different symbols depending on the origin and manufacturer, including: OMT, BM6, BMT, SMT, OMST, OMZT, etc. The BMT 400 hydraulic motor is mainly for use designed in various agricultural and industrial equipment In systems with high power and torque requirements Recommended use: combine harvesters, seed drills, motor hoes, mowers, auger winders, forage harvesters, spreaders, sweepers, spreaders, snow blowers, leaf and branch clearers, conveyor belt drives, chippers and chippers of branches, forestry winches and vehicle winches, fruit growing and drilling machines for burrows, travel drives, Textile machines, printing machines, working with a washing machine Direction of rotation: on both sides Internal thread in the housing: BSP G3/4" Internal thread on the flange: BSP G1/4" Maximum pressure: in continuous operation: 18 MPa in peak operation: 24 MPa Maximum torque: in continuous operation: 1080 Nm in peak operation: 1450 Nm Speed range (in continuous operation): 305 rpm Maximum flow (in Continuous operation): 125 l/min Maximum output power (in continuous operation): 31.2 kW Permissible temperature range: Ambient temperature: -40 °C to +80 °C Oil temperature: -15 °C to +80 °C Housing material: cast iron
