HYDRAULIC DISTRIBUTOR 2SEC 50L 24V + CONTROLLER
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 15,00 kg
- Artikelnummer
- HT-09633

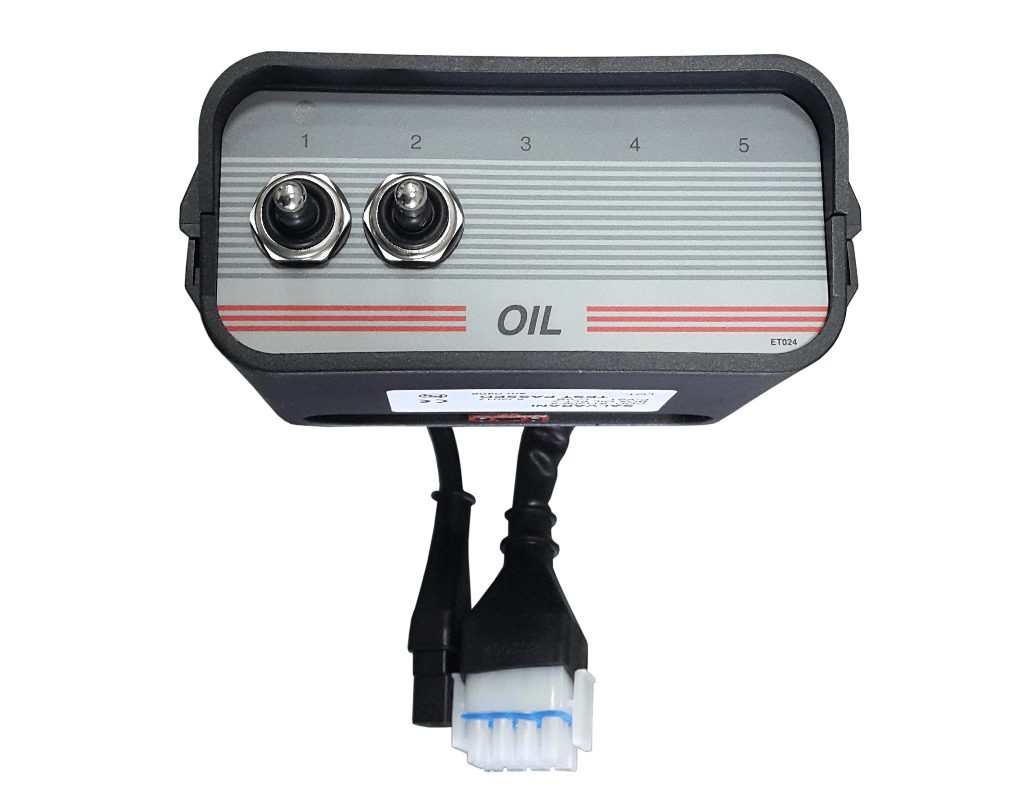

2-piece hydraulic distributor Electric 24 V with oil flow 50 l/min + hydraulic distributor control panel High-quality distributor Product features 2-part hydraulic distributor Electric 24 V with oil flow 50 l/min + hydraulic distributor control panel High-quality distributor The universal distributor is used in various machine types, such as: Cyclops, Tury, Loaders, plows, forklifts and derivatives The distributor is equipped with a safety valve The distributor is perfect for hydraulically power
2-piece hydraulic distributor Electric 24 V with oil flow 50 l/min + hydraulic distributor control panel High-quality distributor Product features 2-part hydraulic distributor Electric 24 V with oil flow 50 l/min + hydraulic distributor control panel High-quality distributor The universal distributor is used in various machine types, such as: Cyclops, Tury, Loaders, plows, forklifts and derivatives The distributor is equipped with a safety valve The distributor is perfect for hydraulically powered machines and equipment It can be used in agriculture, horticulture, forestry and construction Each valve comes with assembly instructions. 2SEK 50L 24V HYDRAULIC DISTRIBUTOR + CONTROL HYDRAULIC DISTRIBUTOR 2SEK 50L 24V + CONTROL Machine brand Atlas Bobcat Bomag Case Caterpillar / Cat Doosan Fadroma Hitachi Hyundai JCB John Deere Komatsu Kubota Liebherr New Holland O&K Terex Volvo Wacker Yanmar Zeppelin Inna The distributor is equipped with a safety valve Rated voltage 24V Power 37 W Oil flow 0 - 50 l/min Hydraulic oil based on mineral oil Operating temperature from -40°C to +60°C Maximum pressure 300 bar Internal leakage: approx. 18 cm³/min at 100 bar Design: Valve made of cast steel An overflow valve: Factory set to 175 bar Possibility of independent control, full speed change by 30 bar Connection: Supply (P) BSP 1/2'' Return (T) BSP 1/2'' 3/8'' BSP Section output Serial port (N) BSP 1/2" Oil type: Mineral oil based hydraulic oil Control Three position slide (1 - 0 - 2) on the spring, it returns to the neutral position by itself (after turning off the power) Neutral 0 position (power to the coils OFF) The actuator piston rod is stationary - the oil runs until overflow Working position 1 (excitation of the first coil), the piston rod of the actuator extends All on and off switches with automatic centering (1-0-2) without detents are required Each panel is sold complete with a 2 m long power cable with plug and a set A 4 m long cable with plugs for the distributor is created An additional pair of wires is created, which is used to activate the warning signal (horn, beacon) or the coil of the pressure relief valve (CETOP type distributor) or to switch on the pump via a relay
Login
3 reviews
19 July 2026 11:27
Keine Beanstandung
HYDRAULIKVERTEILER 2SEC 50L wie beschrieben, passt.
2 July 2024 17:57
Schnell da
Keine Beanstandung.
7 July 2022 19:35
Schnell da
Ordentlich, reicht so.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-09633
- Weight
- 15 kg
