HYDRAULIC CYLINDER Tipper TRAILER PISTON set D-35
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 30,00 kg
- Artikelnummer
- HT-12128
Single-acting hydraulic cylinder with mounting kit and bushing protection. The hydraulic cylinder is perfect for hydraulically driven machines and devices. The main application of this cylinder is the D-35 trailer, where two such cylinders provide side tilt. It is also used for repairs and production of trailers with similar characteristics (e.g. D-47). It can be used in agriculture, horticulture, forestry and construction. The set includes hydraulic cylinder actuator suspension (cradle), two pi

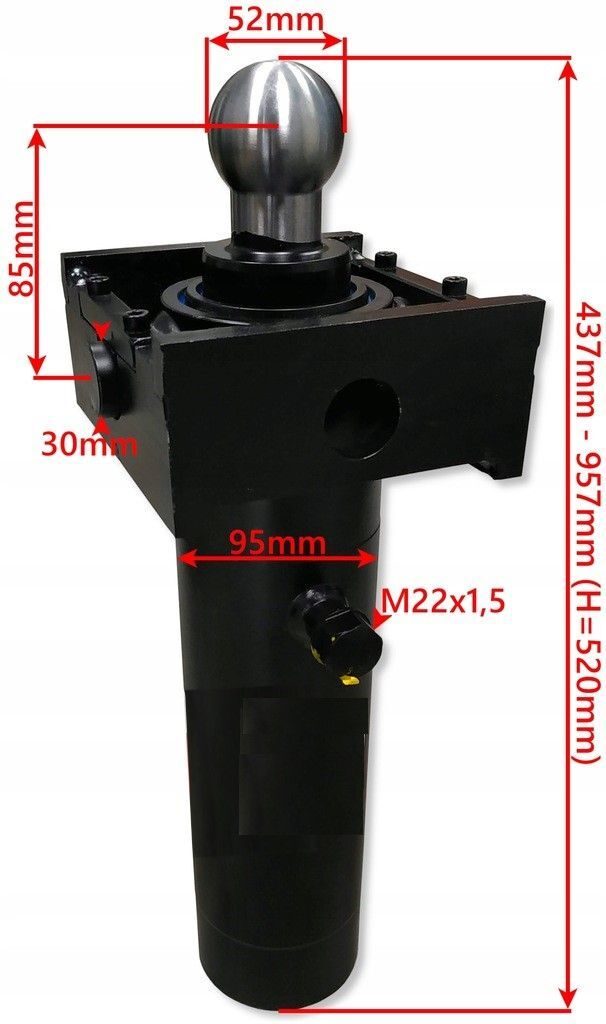

Single-acting hydraulic cylinder with mounting kit and bushing protection. The hydraulic cylinder is perfect for hydraulically driven machines and devices. The main application of this cylinder is the D-35 trailer, where two such cylinders provide side tilt. It is also used for repairs and production of trailers with similar characteristics (e.g. D-47). It can be used in agriculture, horticulture, forestry and construction. The set includes hydraulic cylinder actuator suspension (cradle), two pin socket protection. Number of steps: two. Length of the folded cylinder 437 mm, piston stroke 520 mm, total length of the cylinder when unfolded 957 mm, diameter of the first piston rod 60 mm, diameter of the second piston rod 75 mm, outer diameter of the cylinder 95 mm, hydraulic connection M22*1.5. Maximum speed of the piston rod: 0.5 m/s. Starting pressure: 0.5 MPa Maximum working pressure: 160bar Oil requirement: 2L Permissible ambient temperature from -40℃ to +60℃ Permissible oil temperature from -15℃ to +80℃ Screw connection type: thread screwed into the pipe Piston rod: chrome-plated Fluid type: mineral oil-based hydraulic oil
Login
4 reviews
29 June 2026 16:20
Okay
Ordentlich, reicht so.
16 August 2025 18:10
Schnell da
Unkompliziert geliefert.
5 September 2024 16:56
Alles gut
Das Produkt wie beschrieben, passt.
22 October 2023 14:30
Macht seinen Job
Kam in normaler Zeit, okay.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-12128
- Weight
- 30 kg
