HYDRAULIC 12V winch control set + radio REMOTE CONTROL kit
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 25,00 kg
- Artikelnummer
- HT-19404

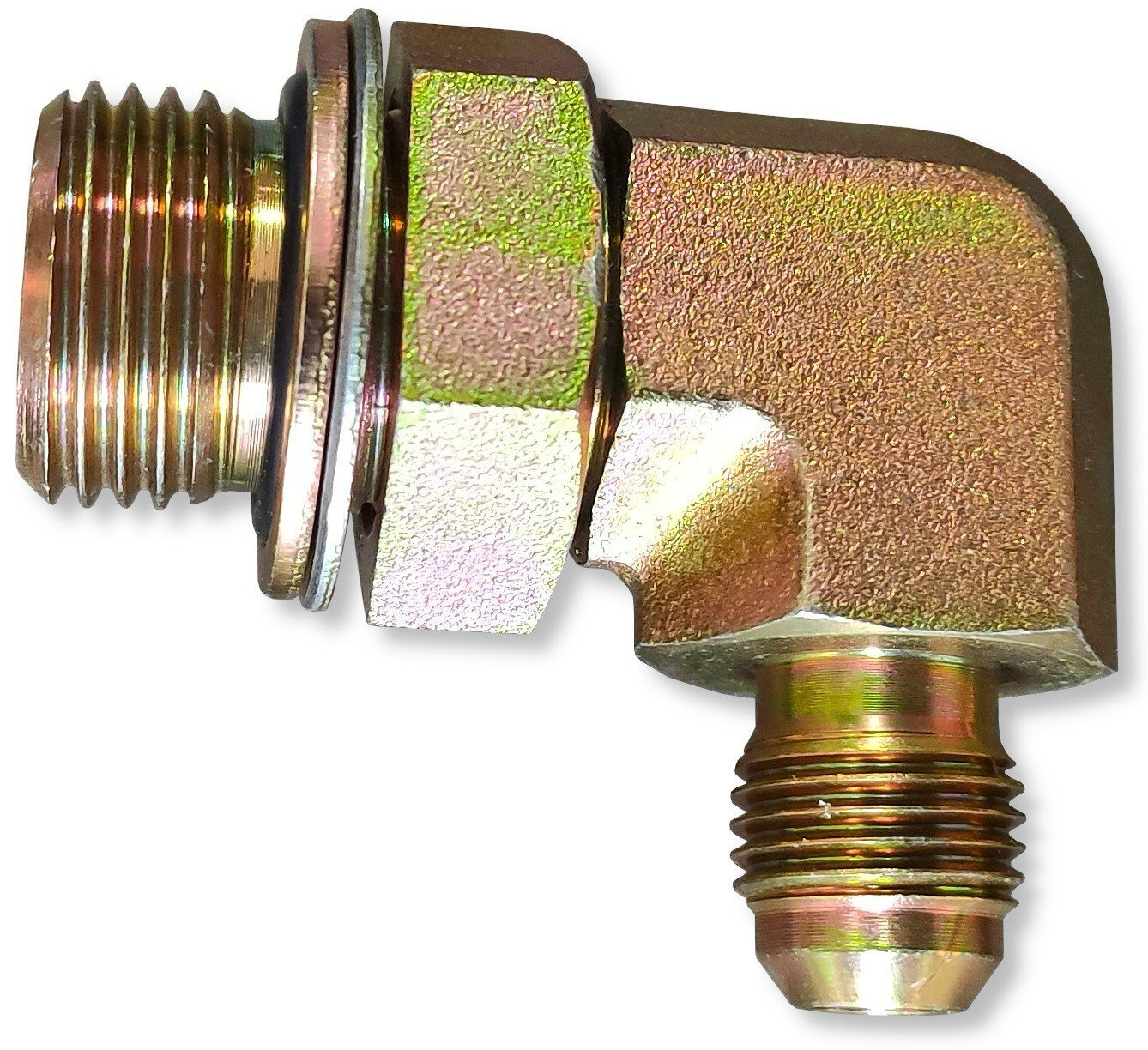

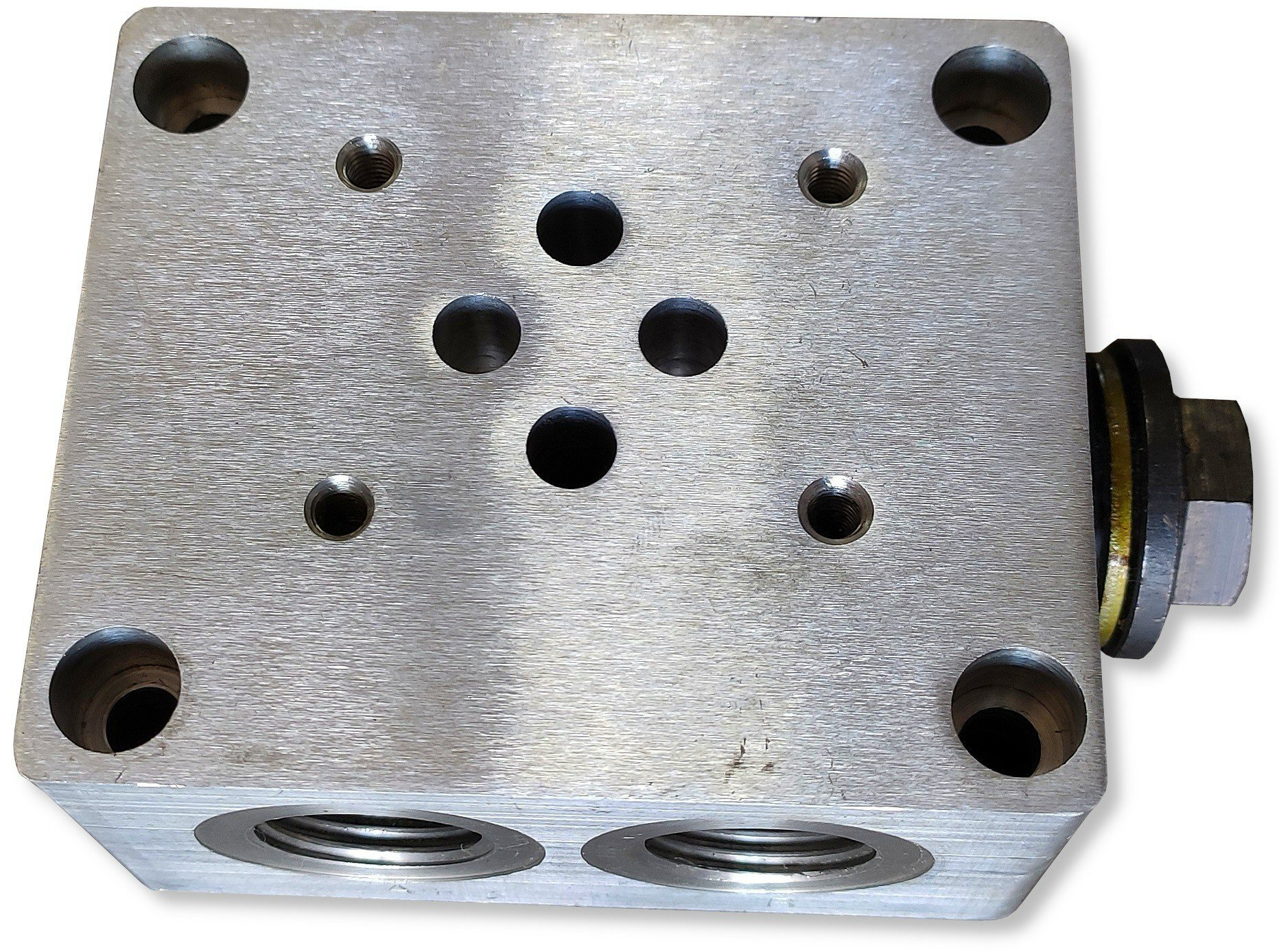

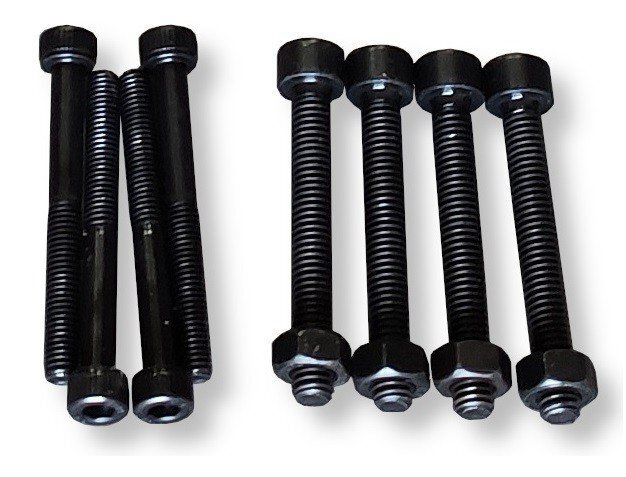

HYDRAULIC WINCH CONTROL KIT 12V + RADIO REMOTE CONTROL Hydraulic winch control set - perfect for vans, 4x4, ATV/UTV vehicles and is used to activate the electric winch Product features HYDRAULIC WINCH CONTROL KIT 12V + RADIO REMOTE CONTROL Hydraulic winch control set - perfect for vans, 4x4, ATV/UTV vehicles and is used to activate the electric winch The kit contains: Reducer with seal (3x square, 3x straight) 4x pressure hoses Oil separator Solenoid valve (voltage 12 V) A set of mounting screws

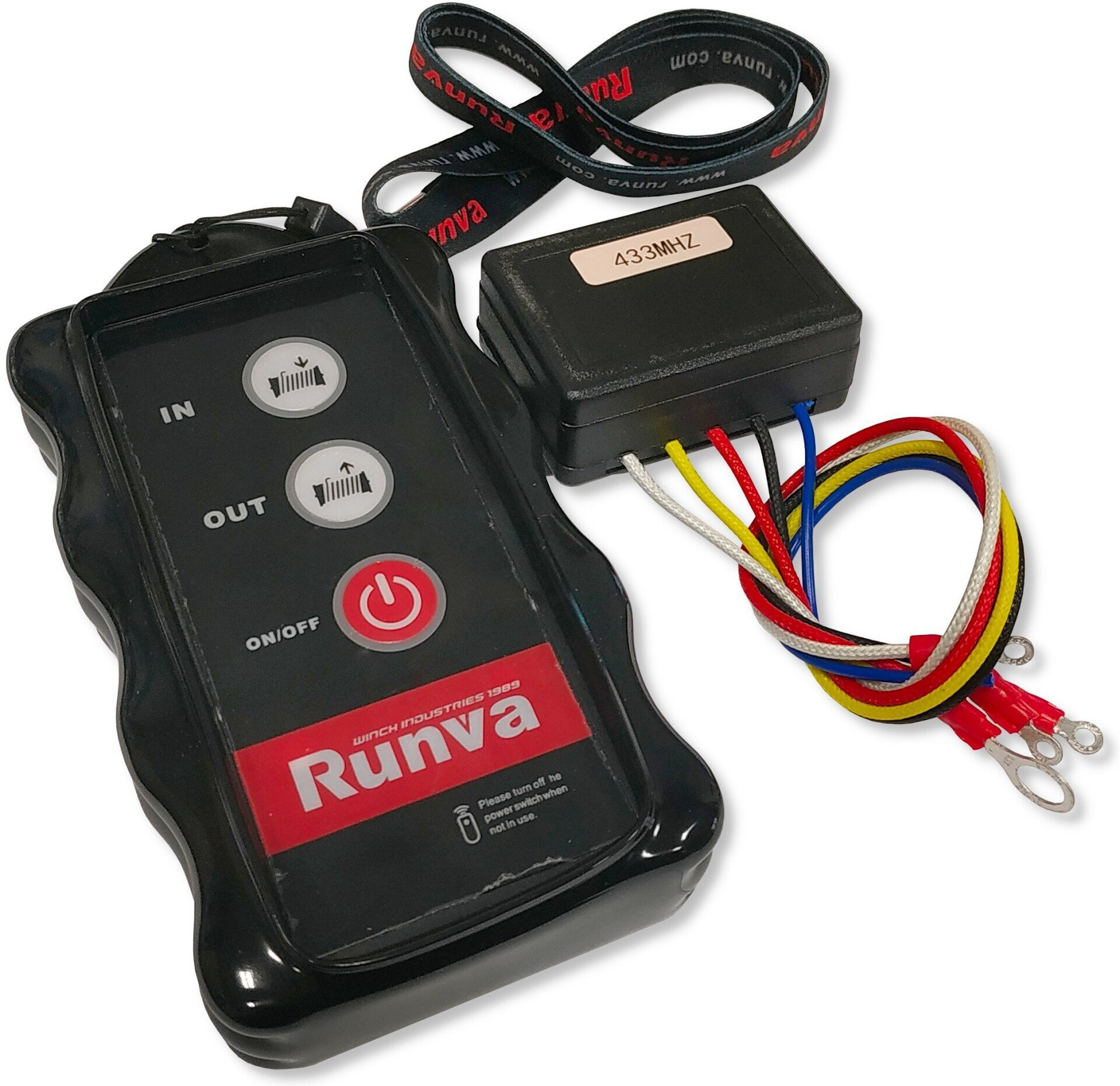

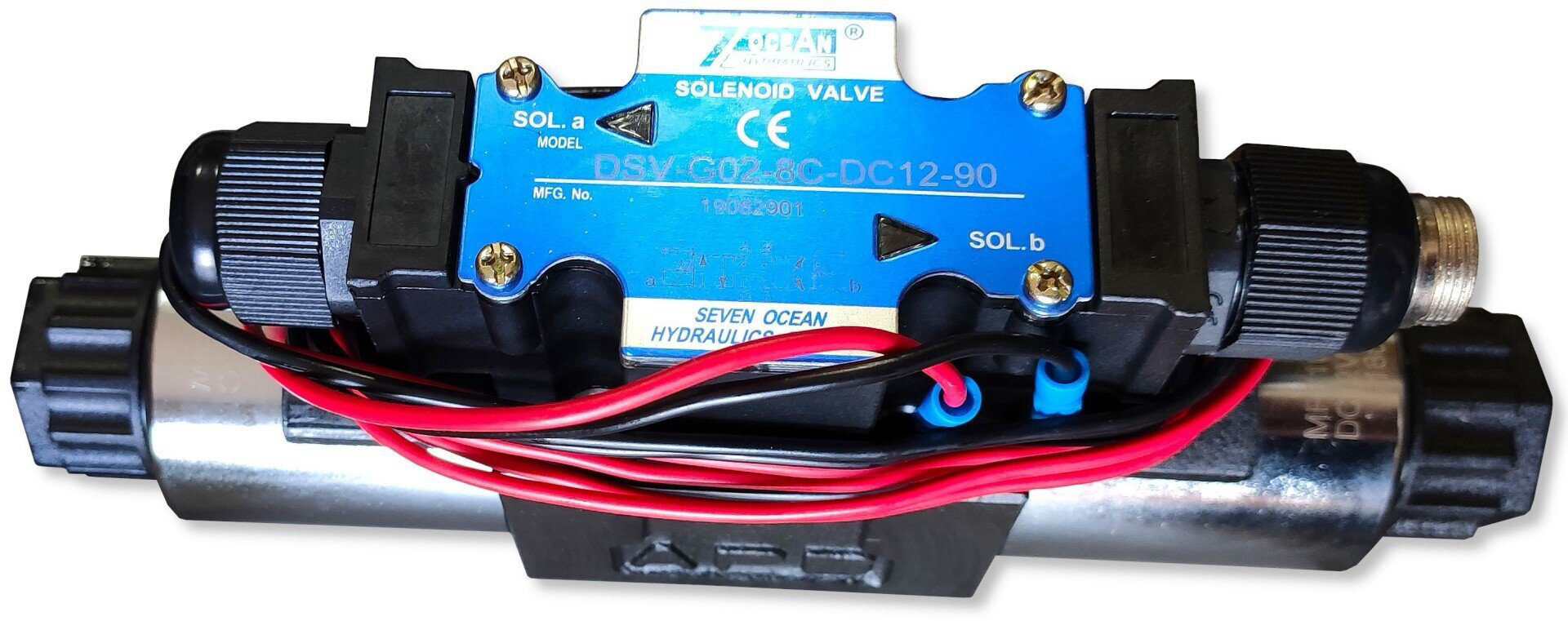

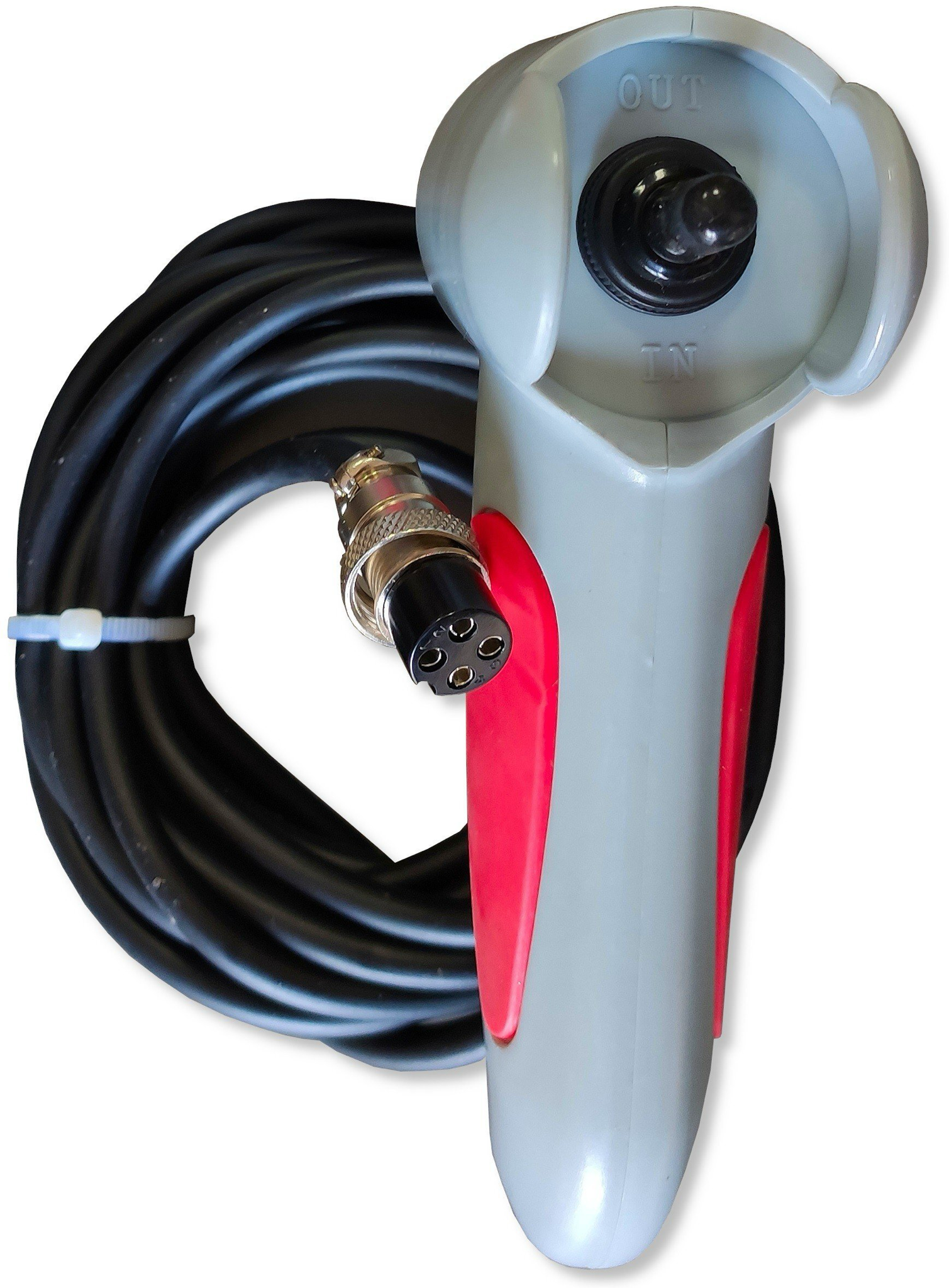

HYDRAULIC WINCH CONTROL KIT 12V + RADIO REMOTE CONTROL Hydraulic winch control set - perfect for vans, 4x4, ATV/UTV vehicles and is used to activate the electric winch Product features HYDRAULIC WINCH CONTROL KIT 12V + RADIO REMOTE CONTROL Hydraulic winch control set - perfect for vans, 4x4, ATV/UTV vehicles and is used to activate the electric winch The kit contains: Reducer with seal (3x square, 3x straight) 4x pressure hoses Oil separator Solenoid valve (voltage 12 V) A set of mounting screws Cable remote control Wireless remote control (2 buttons) Solenoid directional valve Order number: DSV-G02-8C-DC12-90 Available power source: 12 VDC Double solenoid valves Flow rate: 50 l/min 13.2 GPM Max Working Pressure: 5000 PSI (350 bar) Max Back Pressure: 3190 PSI (220 bar) Ambient Temperature Range: -15˚C ~ + 50˚C Hydraulic Fluid Temperature: -15˚C ~ + 70˚C Viscosity Range: 15 ~ 400 mm² / S old Wired Remote Control New model of wired remote control for hydraulically driven winches. convenient to use resistant to mechanical damage Application: winches old alt12v 2-button radio remote control (two functions) up-down The remote control is used for the hydraulic unit and related devices such as winches / winches or tail lifts Compatible with most available winches on the market The remote control is hermetic It can be used in agriculture, horticulture, forestry and construction Included in the set: radio remote control + case for the remote control, receiver, Leash, 9V battery The set also includes operating/assembly instructions in English Technical specifications Voltage 12V / 24V Range: up to 50 m Housing: PVC + silicone protective cover Power supply: 9V battery Dimensions of the remote control 150 x 80 x 34 mm Dimensions of the receiver 60 x 44 x 23 mm Cable length: 215 mm Oil separator (divider) old valve Power divider - is used to... To divide current even with large pressure differences, as well as to combine flows in opposite directions. High accuracy with load and pressure imbalance High flow capacity Maximum pressure: 350 bar Internal thread in the body: 1/2" [BSP] Permissible ambient temperature: -40 °C to +60 °C Permissible oil temperature: -15 °C to +80 °C Straight and square nipples (reducers)
Login
1 review
9 September 2024 08:48
Schnell da
Ordentlich, reicht so.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-19404
- Weight
- 25 kg
