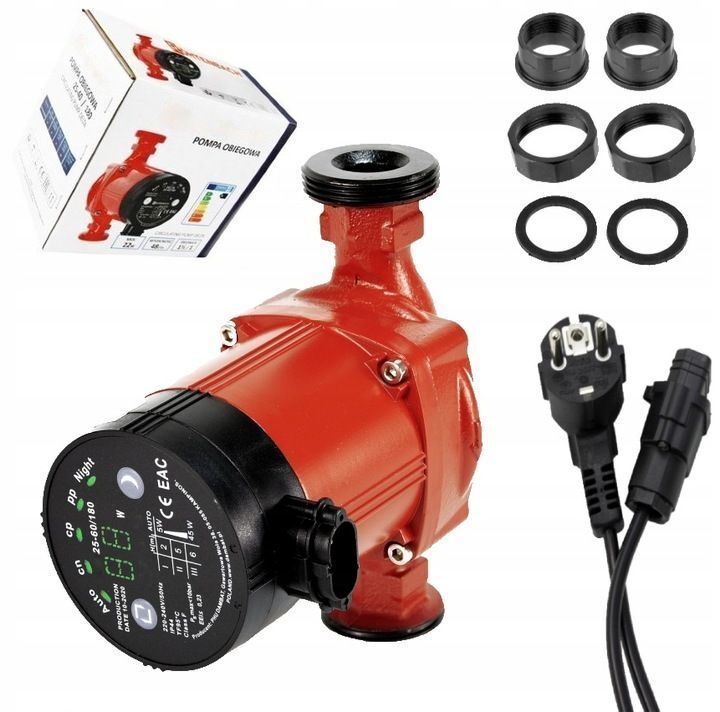

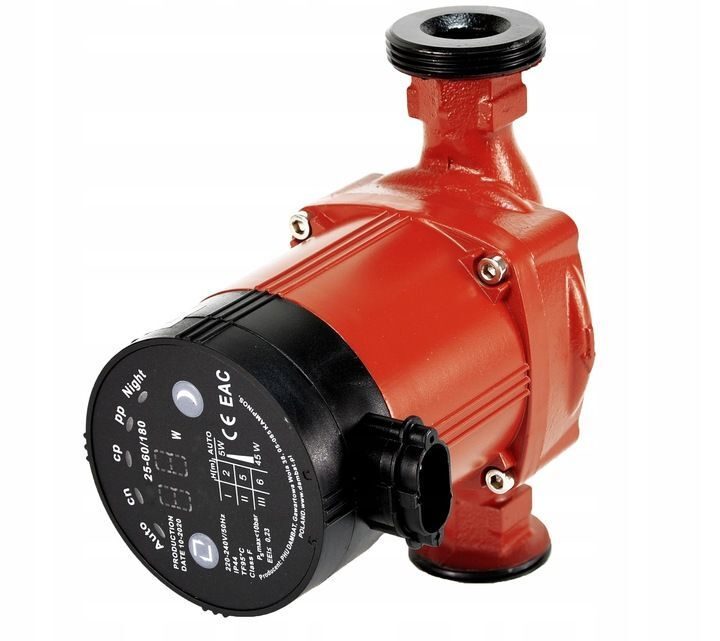

ENERGY EFFICIENT CIRCULATION PUMP Heating pump 32-80/180
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 8,00 kg
- Artikelnummer
- HT-16392
The pump has quality and safety certificates, confirmed by a declaration of conformity, which you receive together with detailed instructions for use Product features The pump has quality and safety certificates, confirmed by a declaration of conformity, which you receive together with detailed instructions for use This is a proof of first-class product, quality and application safety It is also a proof of the honesty and commitment of the manufacturer Lifting: 2 m / 6 m / 8 m (aisle 1/2/3) Maxi
The pump has quality and safety certificates, confirmed by a declaration of conformity, which you receive together with detailed instructions for use Product features The pump has quality and safety certificates, confirmed by a declaration of conformity, which you receive together with detailed instructions for use This is a proof of first-class product, quality and application safety It is also a proof of the honesty and commitment of the manufacturer Lifting: 2 m / 6 m / 8 m (aisle 1/2/3) Maximum efficiency: 80 l/min Pressure: 10 bar Motor power: from 5 W to 60 W Power supply: 220-240 V/50 Hz Operating mode: 3 gears/automatic Minimum temperature of the flowing liquid: +2 C Maximum temperature of the flowing liquid: +110 ° C Pump nozzle diameter: 2" x 1 1/4" Distance between connections: 180 mm The weight is 4 kg Recommended modes for installing underfloor heating: CP1: Constant pressure operation - low setting CP2: Constant pressure operation - medium setting CP3: Constant pressure operation - high setting PROPORTIONAL PRESSURE CURVES: Recommended operating modes for central heating systems: PP1: Variable pressure operation - high setting PP2: Variable pressure operation - medium setting PP3: Variable pressure operation - low setting ADDITIONAL NIGHT MODE - According to the built-in if the temperature sensor in approx. After approx. 2 hours, the pump switches to economical night mode. If the temperature rises by approx. 10 degrees Celsius, the pump automatically returns to normal operation
Login
2 reviews
7 July 2026 15:13
Okay
Habe ENERGIEEFFIZIENTE UMWÄLZPUMPE Heizungsp… bestellt – tut was es soll.
25 October 2020 11:51
Wie erwartet
Passt für den Garten, kam zügig.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-16392
- Weight
- 8 kg
