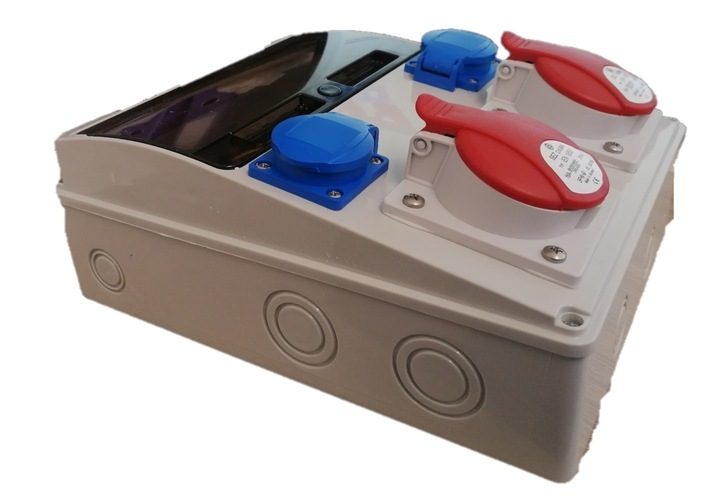

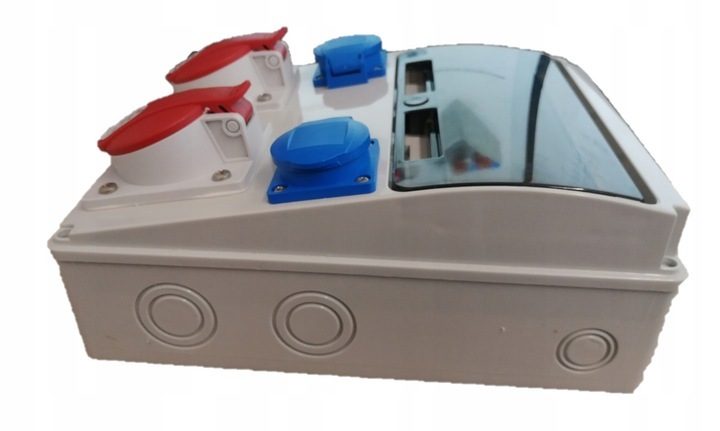

CONSTRUCTION SWITCHGEAR SWITCHGEAR Wall distributor construction site power electrical distribution box construction site mobile 2x 230V 2x 16A
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 10,00 kg
- Artikelnummer
- HT-15544
Single-phase sockets: 2x 230V IP54: fused overcurrent 1P C 16A - sockets: 16A 5P (3P+N+Z) IP54: each socket fused Overcurrent 3P C 16A - 4P 25A 30mA residual current circuit breaker. It is designed to protect people from electric shock caused by direct and indirect contact and also reduce the effects of damage to equipment, including the possibility of such a fire. Housing IP65-IP67 - Box height: 300 mm - Box width: 225 mm CE CERTIFICATE. Pre-wired switchgear. Wall mounting kits are a functional
Single-phase sockets: 2x 230V IP54: fused overcurrent 1P C 16A - sockets: 16A 5P (3P+N+Z) IP54: each socket fused Overcurrent 3P C 16A - 4P 25A 30mA residual current circuit breaker. It is designed to protect people from electric shock caused by direct and indirect contact and also reduce the effects of damage to equipment, including the possibility of such a fire. Housing IP65-IP67 - Box height: 300 mm - Box width: 225 mm CE CERTIFICATE. Pre-wired switchgear. Wall mounting kits are a functional combination of a small switchgear with power and AC sockets and a circuit breaker that can also be used as a light switch or main switch for machines/equipment. Thanks to the many available configurations, the product will perfectly fulfill its task at home, on a construction site or in an industrial hall. Small dimensions, solid construction and high-quality components ensure trouble-free operation and safety. The switchgear is completely wired and ready for connection. ALL SOCKETS IN OUR SWITCHGEARS ARE CONNECTED WITH LGY CABLES: 16A and 230V with a 2.5mm2 cable 32A with 4mm2 cable.
Login
5 reviews
11 July 2026 08:36
In Ordnung
Kurz: okay.
29 March 2025 19:59
Unkompliziert
Kurz: okay.
4 December 2023 13:29
Okay
Macht was es soll, alles gut.
12 August 2022 19:35
In Ordnung
Kurz: okay.
22 April 2021 09:13
Keine Beanstandung
Macht was es soll, alles gut.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-15544
- Weight
- 10 kg
