CONSTRUCTION SWITCHGEAR SWITCHGEAR Wall distributor Construction site power Electrical distribution box Construction site mobile Renovation House construction
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Versandgewicht
- 20,00 kg
- Artikelnummer
- HT-15543

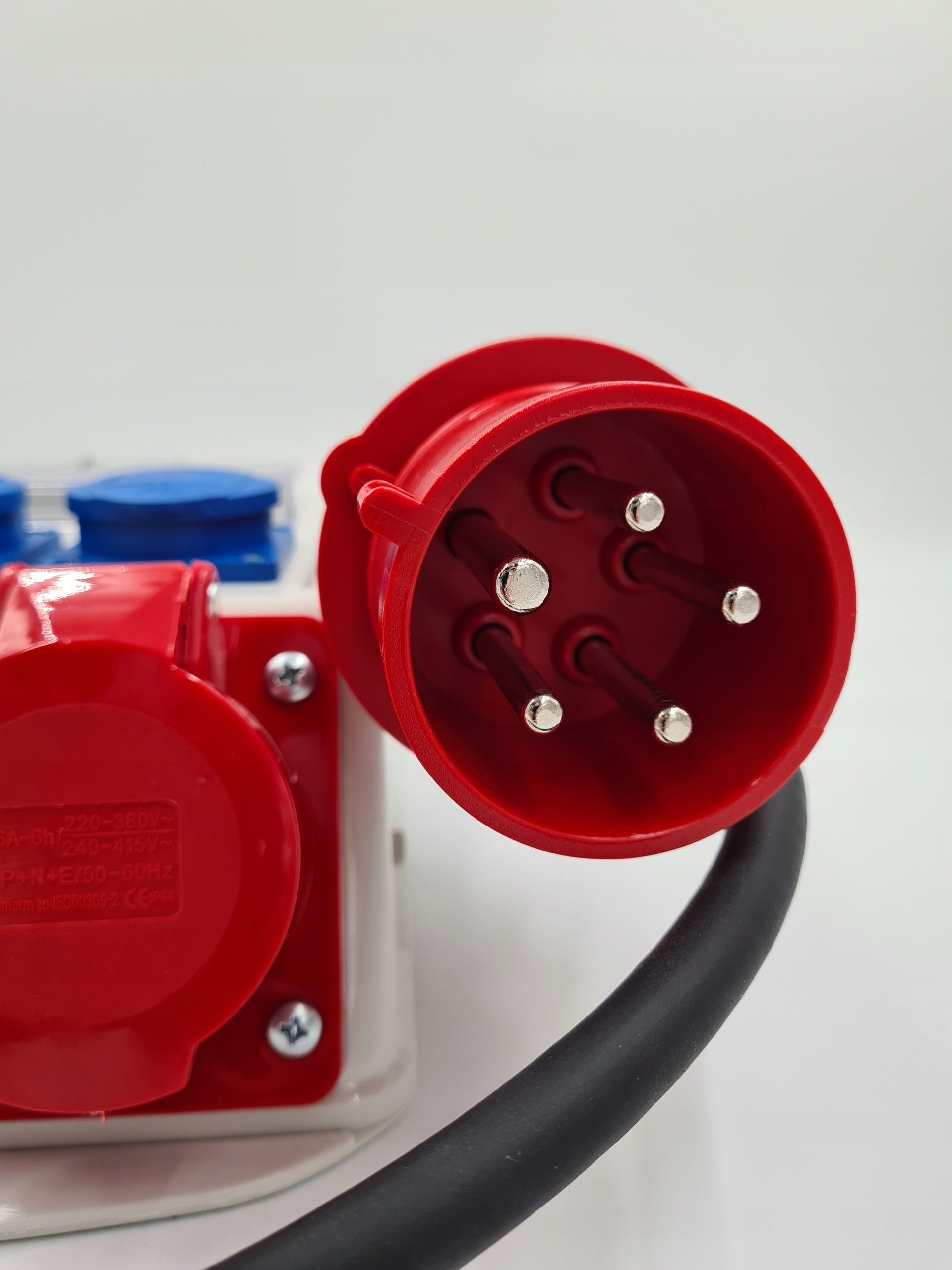

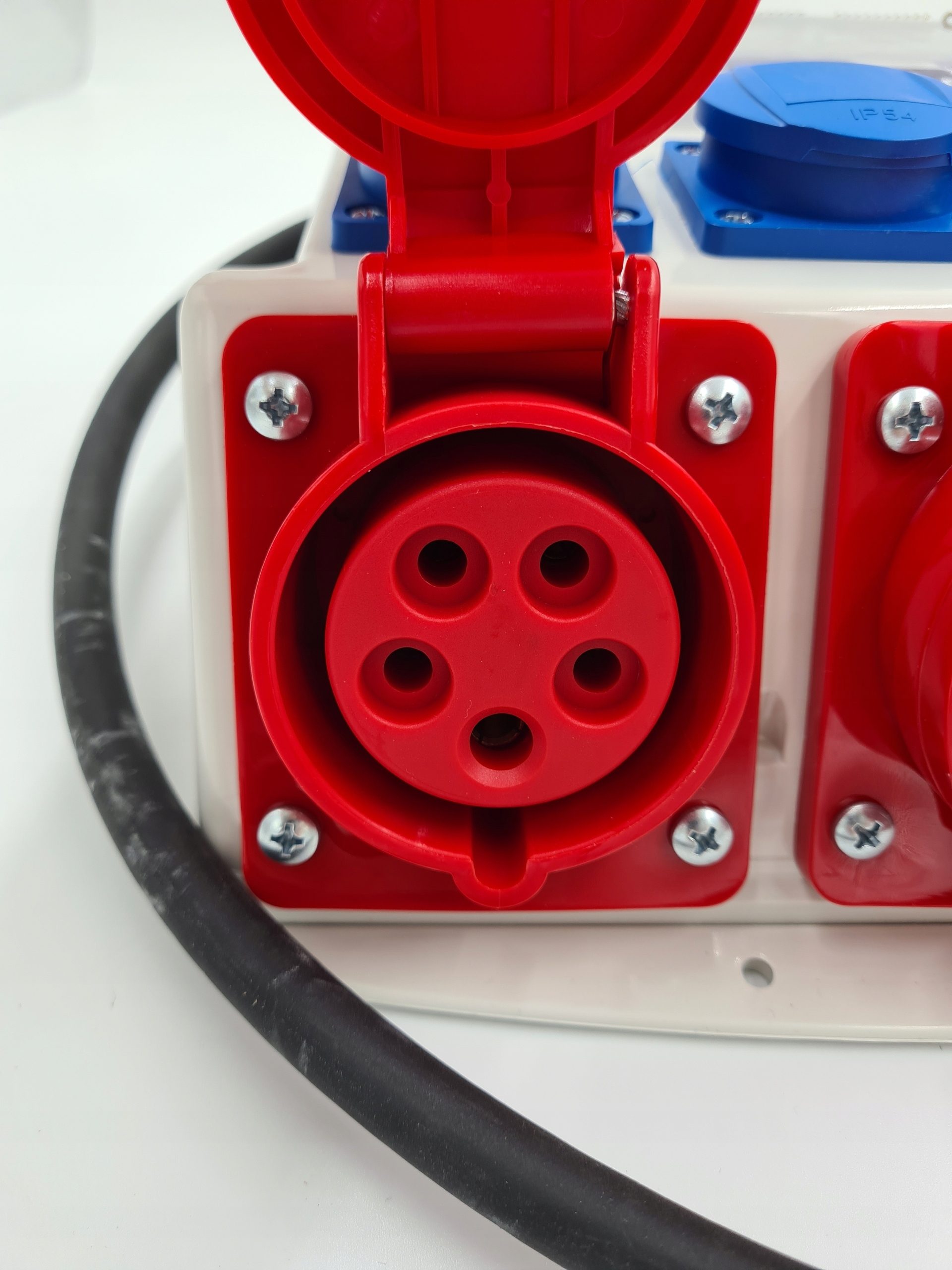

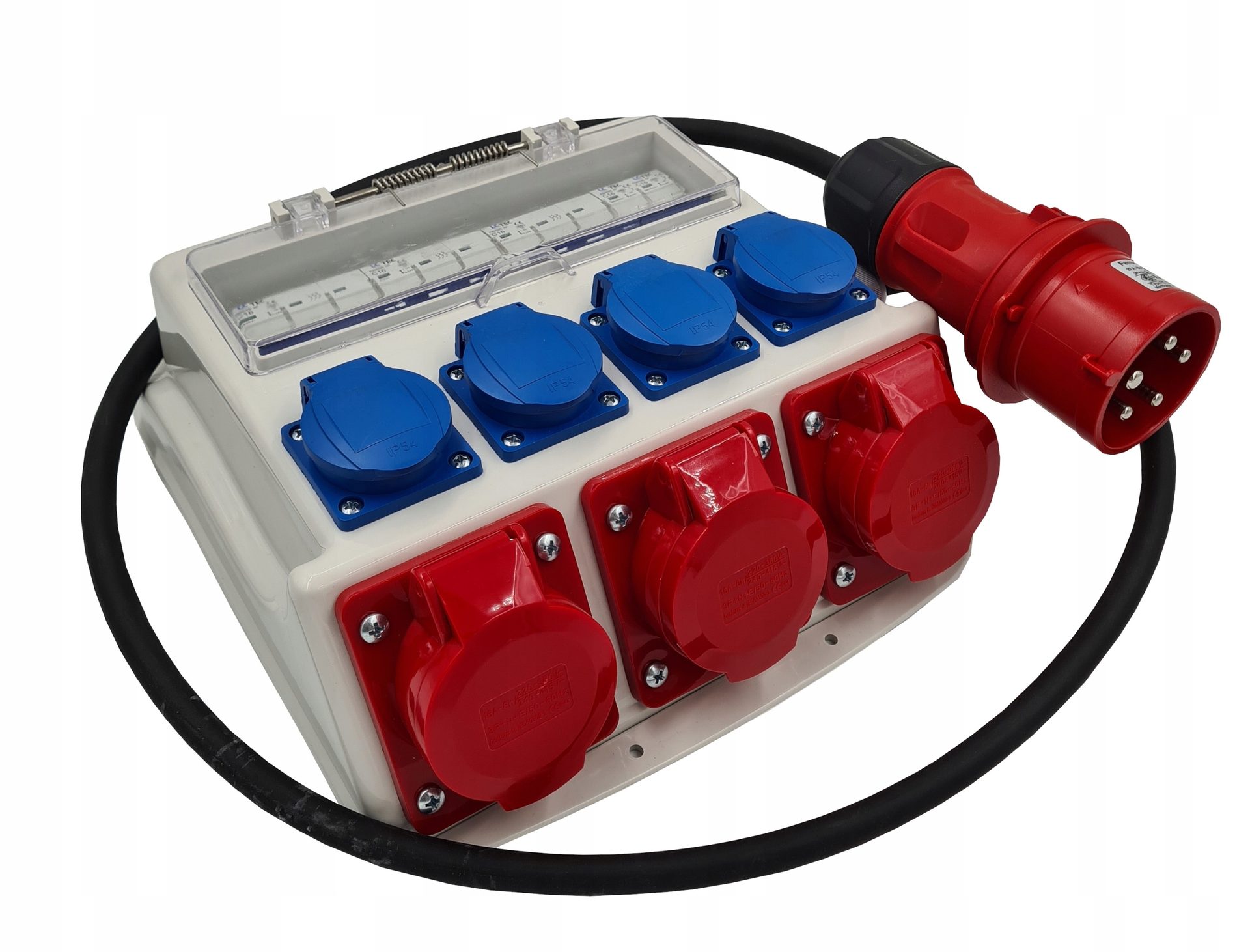

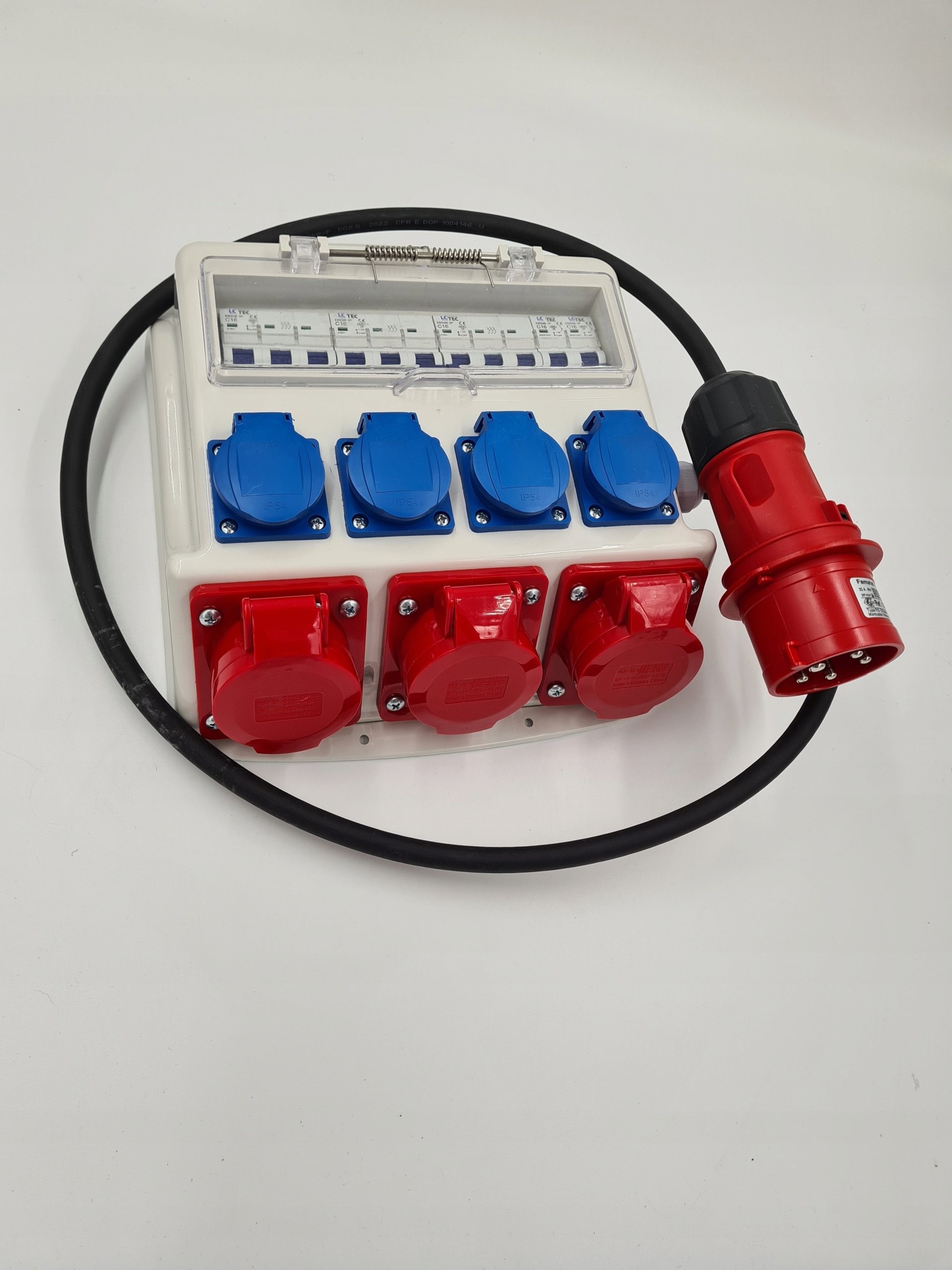

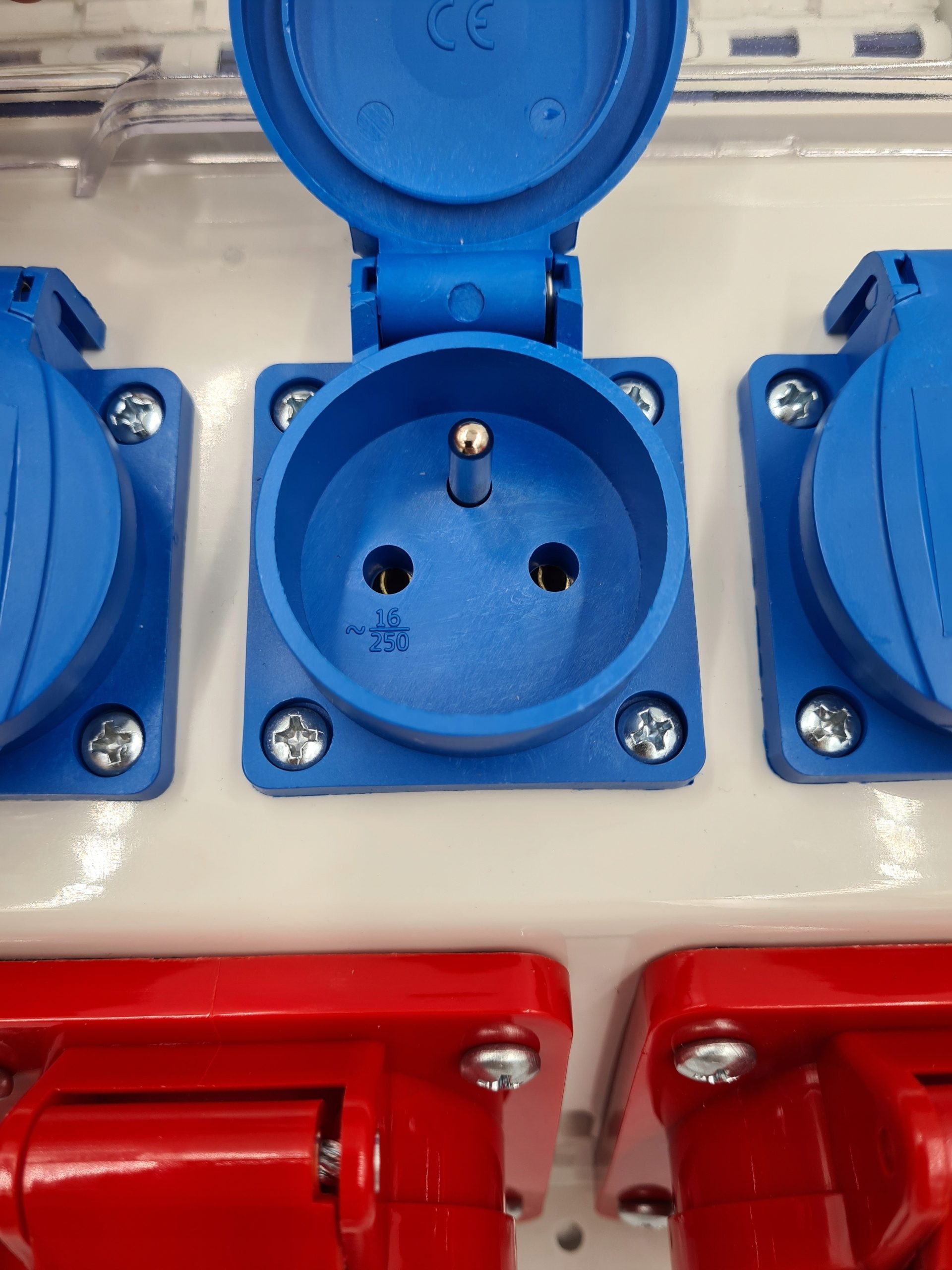

Input: OW cable 5x2.5 1.5 m with 32A 5P plug - sockets: 3x 16A 5P (3P+Z+N) IP44 Each socket is overcurrent protected 3P C 16A - Single phase sockets: 4x230V (2P+Z) IP54 Pair protected sockets switch off overcurrent 1P C 16A - Housing IP65-IP67 - Height: 320 mm - Width: 273 mm - Depth: 101 mm CE CERTIFICATE. Pre-wired switchgear. Wall mounting kits are a functional combination of a small switchgear with power and AC sockets and a circuit breaker that can also be used as a light switch or main swi
Input: OW cable 5x2.5 1.5 m with 32A 5P plug - sockets: 3x 16A 5P (3P+Z+N) IP44 Each socket is overcurrent protected 3P C 16A - Single phase sockets: 4x230V (2P+Z) IP54 Pair protected sockets switch off overcurrent 1P C 16A - Housing IP65-IP67 - Height: 320 mm - Width: 273 mm - Depth: 101 mm CE CERTIFICATE. Pre-wired switchgear. Wall mounting kits are a functional combination of a small switchgear with power and AC sockets and a circuit breaker that can also be used as a light switch or main switch for machines/equipment. Thanks to the many available configurations, the product will perfectly fulfill its task at home, on a construction site or in an industrial hall. Small dimensions, solid construction and high-quality components ensure trouble-free operation and safety. The switchgear is completely wired and ready for connection. ALL SOCKETS IN OUR SWITCHGEARS ARE CONNECTED WITH LGY CABLES: 16A and 230V with a 2.5mm2 cable 32A with 4mm2 cable.
Login
1 review
16 April 2025 13:41
Unkompliziert
Unkompliziert geliefert.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-15543
- Weight
- 20 kg
