CONNECTION BOX SOLAR PHOTOVOLTAIC DC/AC 1-string – 12 modules

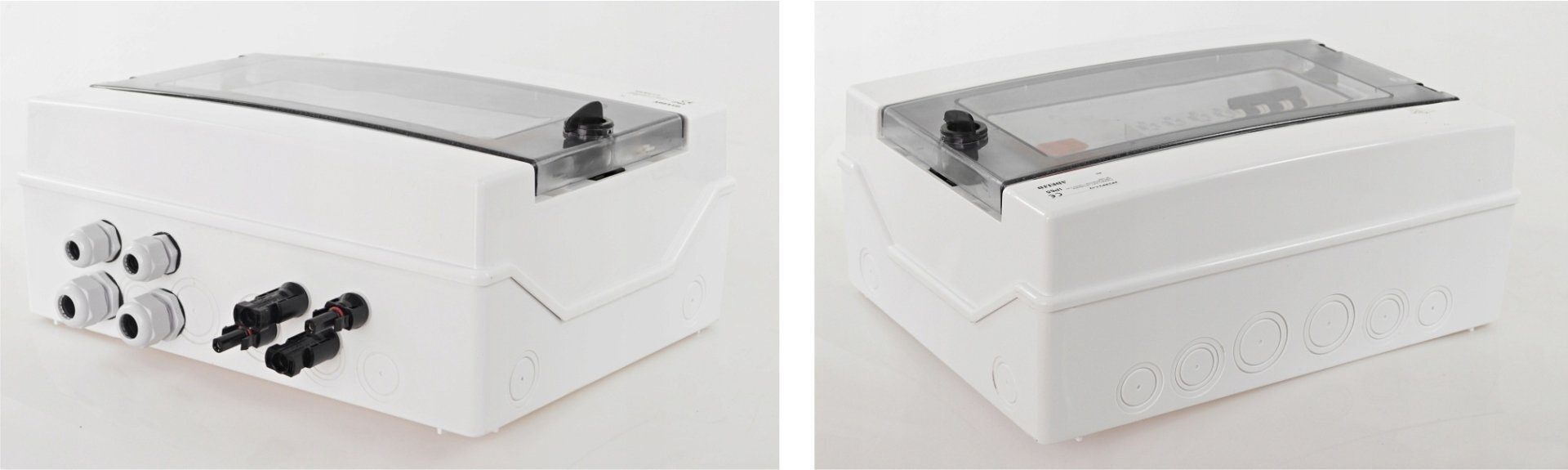

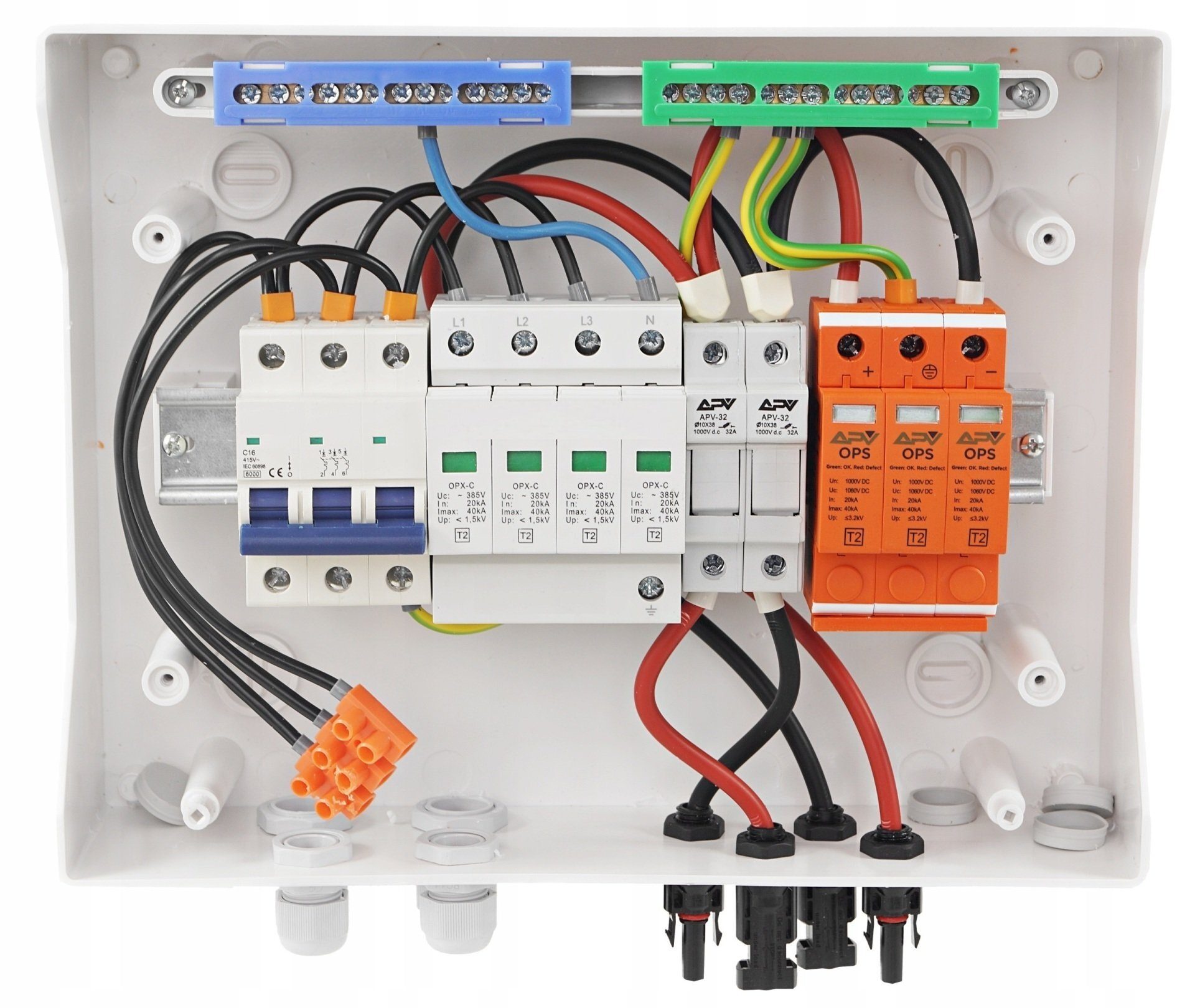

Set - surface-mounted photovoltaic switchgear, single-strand, 1000 V DC 32 A IP65 Protection of PV systems against overload and the effects of short circuits in DC photovoltaic systems. Ready wired, ready to plug in. The product is wired in accordance with standards with 6.00 mm2 solar cable and LGY. The switchgear has cable glands and MC4 connectors. A worn varistor insert can be safely replaced without disconnecting the device. Switchgear housing for 12 modules, surface mounting, IP65 tight, with transparent doors. We recommend the complete product range that is required when installing PV systems: Included in the set: 1.1x closed surface-mounted housing, 12 modules, with transparent door and N+PE strip, TH35-Schiene, 2.1x APV surge arrester, 3P class C [T2], 1000V DC, 32A, 3.1x APV 2P fuse switch disconnector 10x38 1000V DC, with two fuse links, 4.1x surge arrester OPX 4P, class C, 5.1x WN6 3P, "C" 16A circuit breaker 6.2x PG 11 cable gland, for 5-10 mm cable, 7.2x PG 16 cable gland, for 10-14 mm cable, 8.2x plug for MC4-PM control panels, 9.4x rubber plugs The switchgear is wired and connected to the network ready for operation. Readable status preview, easy access and replacement of worn varistor inserts without disconnecting the device. The perfect kit for a photovoltaic network. Properties of the ABS housing: Protection class: IP65, number of modules: 12, equipment: TH35, Z+N rails and fastening screws, installation: surface-mounted, door: hinged on the left, transparent, weakening for easy cable entry, white housing. Dimensions: 330 x 260 x 138 mm [W x H x D] Properties of the surge arresters APV 3P Class C [T2] 1000 V DC 32 A Surge arresters T2 are used to protect photovoltaic systems of type TN, TT from induced, switching and weather-related voltages. They are equipped with a visual operating indicator (green - protection, red - no protection). The limiters have features that make their installation and operation easier. Technical data Protection class T2, number of fields: 3, protection requirement: 32A, nominal voltage Un 1000V DC, constant working voltage Uc: 1060V DC, test current In: 20kA MAX Imax current: 40 kA Up:
