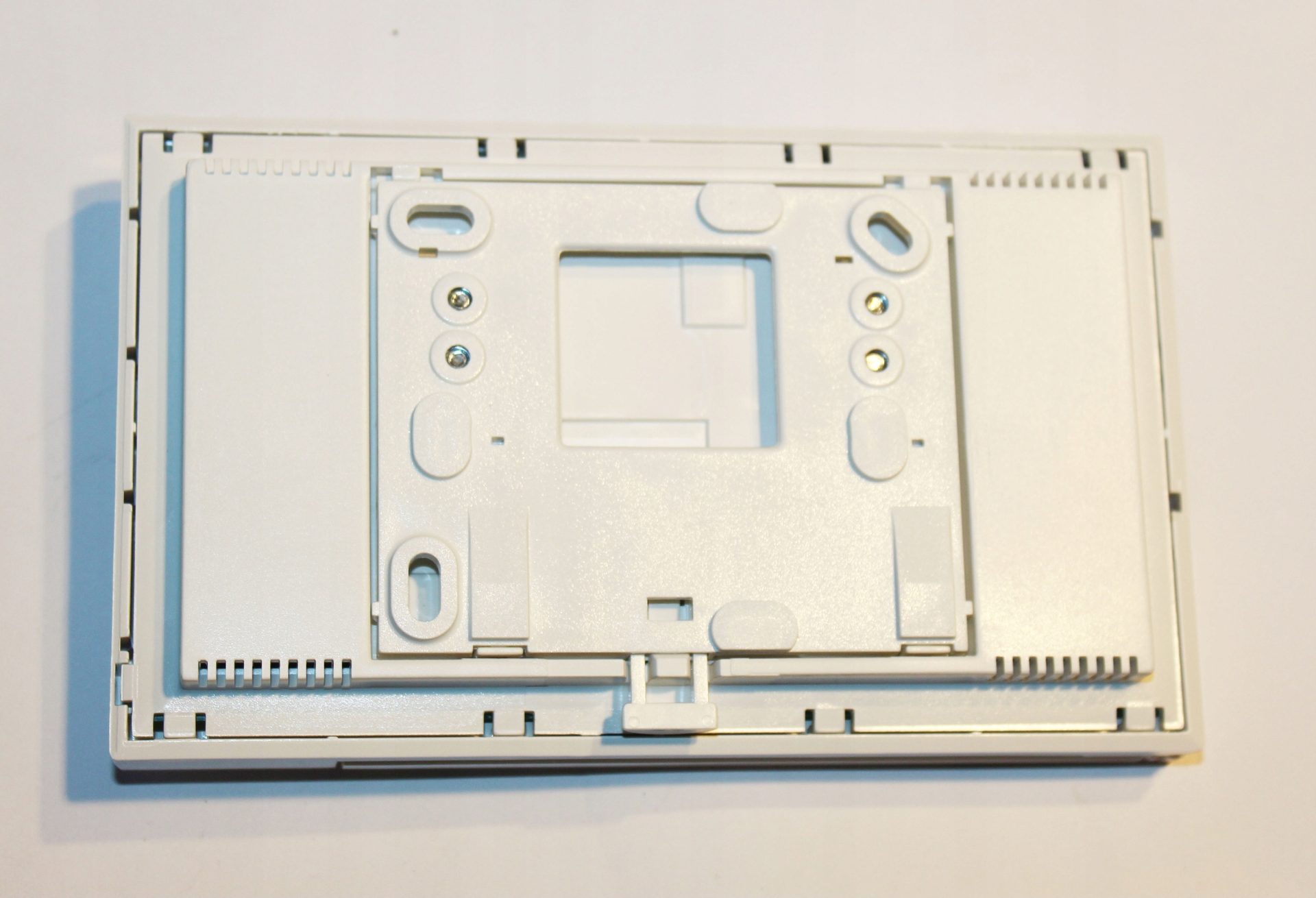

Buderus Logamatic RC35 EMS system operating unit control room controller 8718593305

Control of up to four central heating circuits (max three circuits with mixing valves in collaboration with three MM10 and one WM10-Modulen and 1 circuit without mixer), hot water production, solar circuit control of hot water circulation, systems with or without hydraulic clutch, daily and weekly programming (8 special heating programs and 3 personalized programs), programming of hot water production, programming of hot water circulation work cycles Modes: winter, summer, automatic, manual (day or night), holiday, Party, pause, temporary change in room temperature, one-time hot water preparation preparation, individual control of individual circuits according to the outside temperature or the outside temperature influenced by the room temperature, display: room or boiler temperature, current program, operating mode, service codes, date, time, menu in Polish, • Setting the heating curve, frost protection, protection against pump blocking, function to suppress the influence of the outside temperature depending on the type of building (heat storage capacity), • Programming of thermal disinfection of hot water, display of Solar yield, setting the pump run-on time or continuous operation, diagnostics, monitoring, error messages, communication and power supply via EMS (no additional power supply, e.g. battery). Basic functions: heating circuit without mixer, hot water preparation, circulation pump - works depending on the boiler type, regulation according to the internal temperature. Possibility of controlling additional 3 circuits with mixing function (with MM10-Modulen). Features of the Logamatic RC35 control unit: Control unit for the Logamatic EMS control system and all heat generators equipped with EMS; Control device for outside or room temperature controlled control of the heating system or comfort room temperature controller; Control of the heating circuit without a mixing valve; Control module for three additional heating circuits with or without mixing valve, in combination with mixing valve modules; Operating hours counter integrated into the software (software); 6-channel digital timer (in combination with WM10 and MM10-Modulen) with graphical representation of the switching cycles; integrated holiday function for each heating circuit and the entire system with selection of the reduction type (off, reduction, weather-dependent); Control device for setting the hydraulic decoupling (hydraulic switch) and a directly connected heating circuit without a mixing valve, in conjunction with the hydraulic switch WM10; Programming device for solar drinking water heating in conjunction with the SM10 solar module with graphical display of “solar yield” on the RC35-Display; Operating mode selector switch for: “AUTOMATIC, CONTINUOUS HEATING, CONTINUOUS REDUCTION” The operating mode is displayed via green LEDs integrated in the buttons; temporary (transient) change in the room temperature setpoint to the next switching point of the control program; programmable digital timer for daily and weekly programs with eight standard programs and two freely programmable own programs for each heating circuit; adjustable automatic adjustment of the lowering temperature according to DIN EN 12831, can be set separately for each heating circuit (reduction of the additional heating output); Display of room temperature, time and day of the week via the illuminated LCD display with the option of graphic display; automatic adjustment of the flow temperature in the event of external influences on the room temperature (disturbances), (installation in the living room); Outside temperature display yesterday and today in graphic display, unique hot water charging button, extensive service functions such as monitoring, function test, sensor test, LCD test, error messages, service messages, view of heating curves, etc.; upon request, display of the contact details of the installation company in the event of a malfunction or maintenance; Maintenance intervals can be set by operating hours or date; Device including room temperature sensor and wall bracket for installation in the living room; controlled by a microprocessor. Exhibit, was used for demonstrations
