50x fishing anchors 10x95 M10 - 50 pieces FWA Express Fischer 45793
Card 1-3 · Advance 3-5 business days
Final price plus shipping according to § 19 UStG without VAT ID
Product information
- Serie / Lizenz
- Fischer
- Versandgewicht
- 8,00 kg
- Artikelnummer
- HT-15733
Anchor 10x95 M10 - 50 pieces

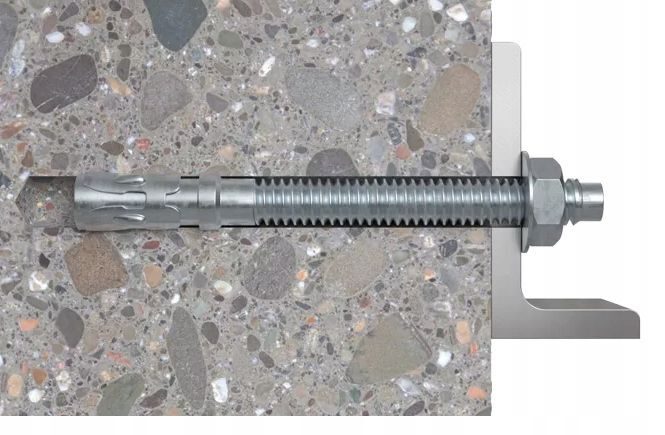

Ring, bolt, express Fischer anchor FWA 10x95 Fischer ring bolt anchor made of steel (Express) - heavy duty FWA 10 x 95 M10 The price is for - 1 pack - 50 pieces. Material: Bolt, ring and nut made of galvanized steel Technical data / installation parameters Diameter of the fastening hole - 10 mm Recommended loads [kN] Pulling out of the ground - 1.50 kN / 2.80 kN / 3.80 kN Shear - 1.80 kN / 2.80 kN / 3.80 kN Recommended bending moment - 25 Nm Dimensions of the components Minimum edge distance - 45 mm / 60 mm / 75 mm Minimum center distance - 90 mm / 120 mm / 150 mm The minimum thickness of the base is 100 mm The diameter of the hole in the element is 10 mm Base: C20/25 concrete, cracked concrete (NOTE - lower strength parameters) Application for the assembly of: balustrades, handrails, gates, steel profiles, frames, wooden slats, system profiles, cast connections,
Login
1 review
22 July 2025 12:28
Okay
Macht was es soll, alles gut.
Reviews are checked by our team and only published after approval — to keep quality and trust for all customers.
Technical data
- Item number
- HT-15733
- Brand
- Fischer
- Weight
- 8 kg
