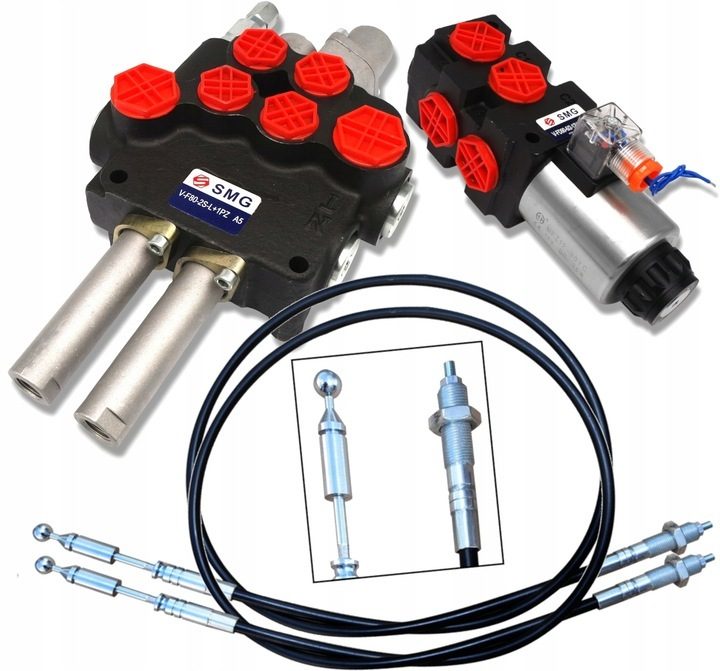

3-piece hydraulic set 80 l/min with floating part and lock for TURA swimming

Technical data

Composition of the kit 2x Bowden cable 2-piece hydraulic distributor 80 l/min - floating part + locking solenoid valve - 6/2-piece 12V 90L/min The set is perfect for hydraulically driven machines and devices. It guarantees effective control of two sections of the TUR front loaders (frame lift and bucket tilt) and an additional section at the touch of a button. The set offers many advantages that affect the dynamic, fast and safe control of the machine. It can be used in agriculture, horticulture, forestry and construction. It is suitable for use in: agricultural machinery, tractors, sprayers, cyclops, HDS loaders, construction machinery, loaders, excavators, sweepers, industrial machinery and others. High-quality monoblock distributor in parallel arrangement with floating (absorbing) chamber. It features a compact design, stable operation and high versatility. This allows you to be in control. from the cab (using a cable and joystick) two double-acting or (after connecting one of the connections) single-acting actuators. A series connection to the existing system is possible (pressure sleeve required). The locking latch makes the distributor ideal for machines and devices where the hand does not have to be constantly held on the joystick. Distributor- monoblock (high quality) with parallel arrangement with floating (absorbent) chamber.!ATTENTION! In a particular manifold, the section with a lock is only in a section with a FLOATING FUNCTION. Application: The distributor is perfect for hydraulically driven machines and devices. It can be used in agriculture, horticulture, forestry and construction. The universal distributor is used in various types of machines, such as: Cyclopie Tury Loaders Plows Forklifts and many more Three-stage slider (1 – 0 – 2) with locking with locking, i.e. it holds the position independently in the working position Position 0 Neutral (joystick is vertical - the cable is loose) the piston rod of the actuator is stationary - the oil flows to the overflow. Working position 1 (joystick diagonally forward) The piston rod of the cylinder extends. Working position 2 (joystick tilted backwards) The cylinder piston rod retracts. Three-stage slider (1 - 0 - 2) jumps back to position 0 by itself. Neutral (joystick is vertical - the cable is loose) the piston rod of the actuator is stationary - the oil flows to the overflow. Working position 1 (joystick diagonally forward) The piston rod of the cylinder extends. Working position 2 (joystick tilted backwards) The cylinder piston rod retracts. Connection: Power supply (P) BSP 3/4'' return (T) BSP 3/4'' output for 1/2'' BSP sections connection 3/4" BSP technical

Specifications

Oil flow 0 - 80 l/min Maximum working pressure: 300 bar Permissible ambient temperature: -40℃ to +60℃ Permissible oil temperature: -15℃ to +80℃ Equipped with a safety valve. This solenoid valve is an ideal solution when the hydraulic distributor used (to control the actuator) does not have an additional section to control another actuator. Most commonly used with a 2-piece distributor, such as: B. a gripper, a crocodile, etc., used. The high-quality solenoid valve features compact design, stable operation and high versatility in agriculture, horticulture, forestry and construction. This allows control of two independent double-acting actuators. It should be noted that it is not possible to control two actuators at the same time.

Technical data

Gwinty (BSP) 90 l/min Pressure: 315 bar Permissible ambient temperature: -40 ℃ to +60 ℃ Permissible oil temperature: -15 ℃ to +80 ℃ CONNECTION: A1 - A2 FLOW / RETURN (whether A1 or A2 will be return or forward) B1 - B2 - C1 - C2 OUTPUTS FOR RECEIVER (e.g. B. Actuators)
