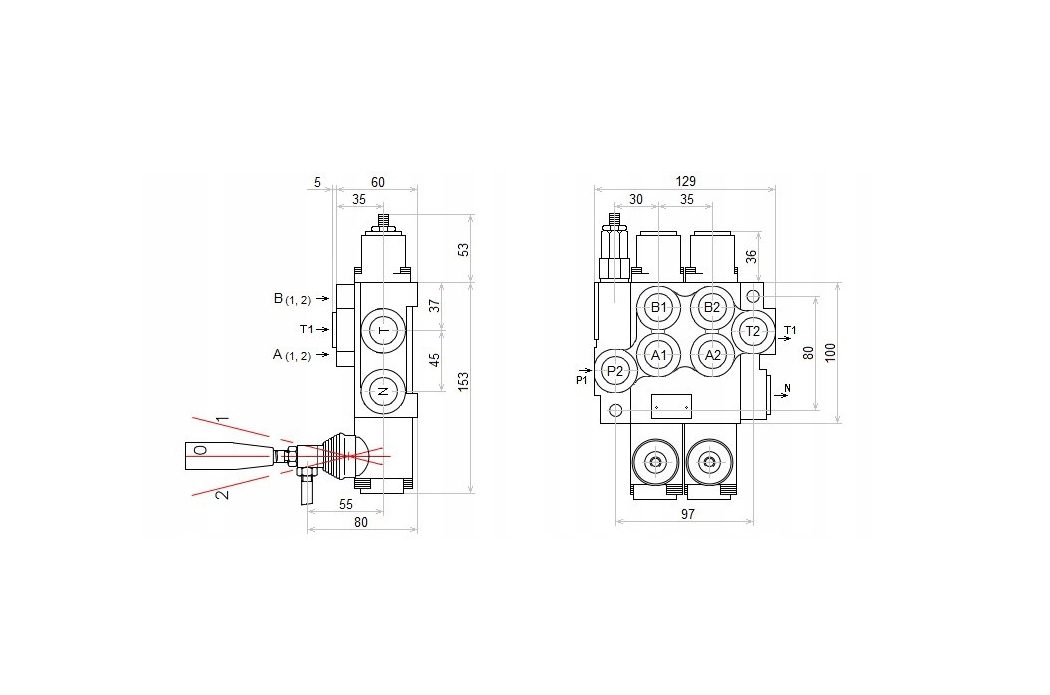

2-PIECE HYDRAULIC DISTRIBUTOR 40L WITH CONNECTIONS

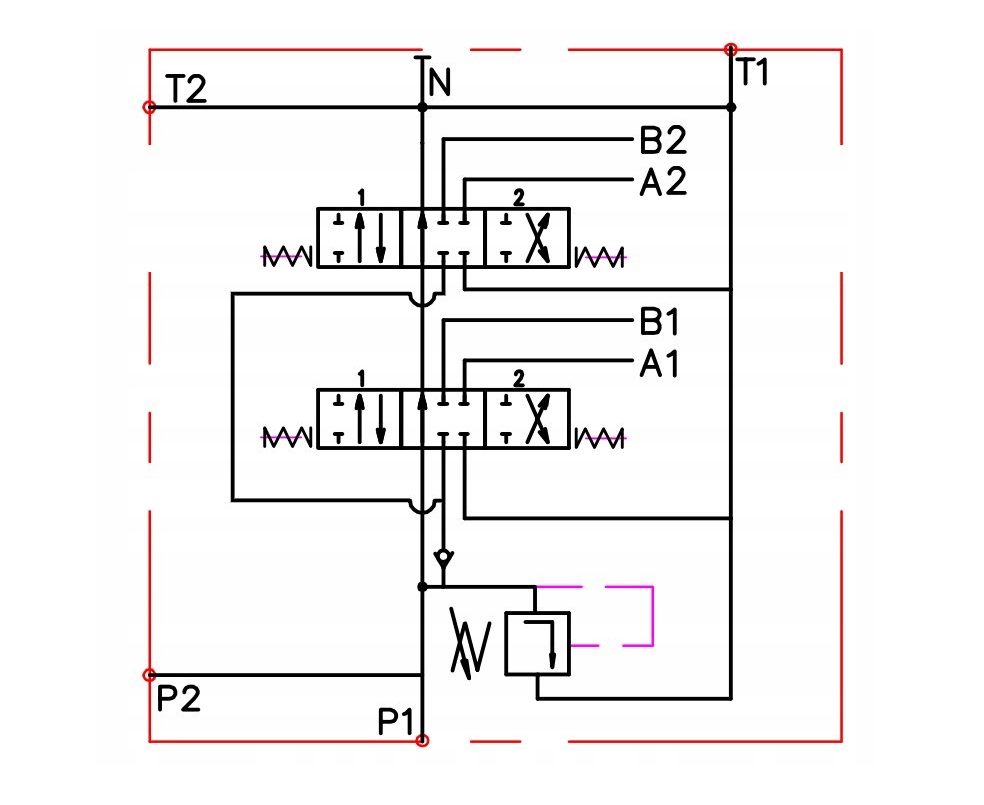

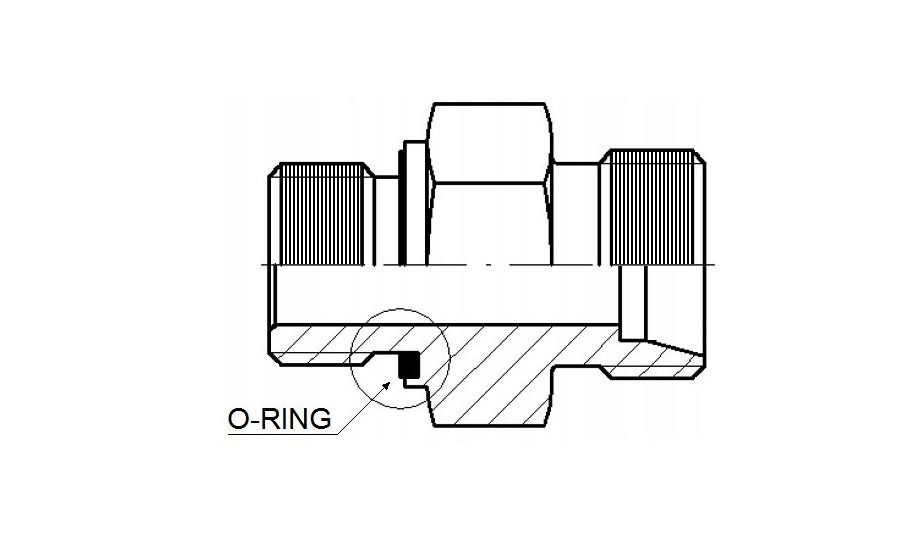

Technical data Includes 1-PIECE HYDRAULIC DISTRIBUTOR 40L 2x BSP connection: 1/2" - M22x1.5 4x BSP connection: 3/8" - M18x1.5 High quality distributor The distributor is perfect for hydraulically driven machines and devices. It can be used in agriculture, horticulture, forestry and construction. It is suitable for use in: agricultural machinery, tractors, sprayers, turners, cyclops, HDS loaders, construction machinery, loaders, excavators, sweepers, industrial machinery and others. The universal distributor is used in various types of machines, such as: E.g.: Zyklop loaders, plows, forklifts, etc. The universal distributor is equipped with a safety valve. Oil flow 0 - 40 l/min Hydraulic oil based on mineral oil Working temperature from -40 °C to + 60 °C Maximum pressure 300 bar Lever with three positions (1 - 0 - 2) on the spring it returns to the vertical by itself Neutral 0 position (lever placed vertically), the piston rod of the actuator is stationary - the oil runs to the overflow. Working position 1 (lever position diagonally forward), the piston rod of the actuator extends. Working position 2 (lever position diagonally backwards), the piston rod of the drive retracts. Connection supply (P) BSP 1/2'' thread from the manifold side inch BSP: 1/2'' thread on the hydraulic hose side: M22x1.5 Return (T) BSP 1/2'' thread from the manifold side inch BSP: 1/2'' thread on the hydraulic hose side: M22x1.5 Section outlet (actuator) BSP 3/8'' thread from the Distributor side inch BSP: 3/8'' Thread on the side of the hydraulic hose: M18x1.5 Material corrosion-resistant galvanized steel Distributor 2-piece 40l + CONNECTIONS Promotion! Distributor 2-piece 40l + CONNECTIONS Promotion! Part number 02P40 Control: Three-position lever (1 - 0 - 2), spring loaded, i.e. h. it returns to the vertical position by itself: Neutral 0 position (lever is vertical), the actuator piston rod stands still - the oil runs to the overflow Working position 1 (lever position diagonally forward), the actuator piston rod moves out Working position 2 (lever position diagonally backwards), the actuator piston rod retracts Each connection has a rubber seal so that no seals need to be added.
