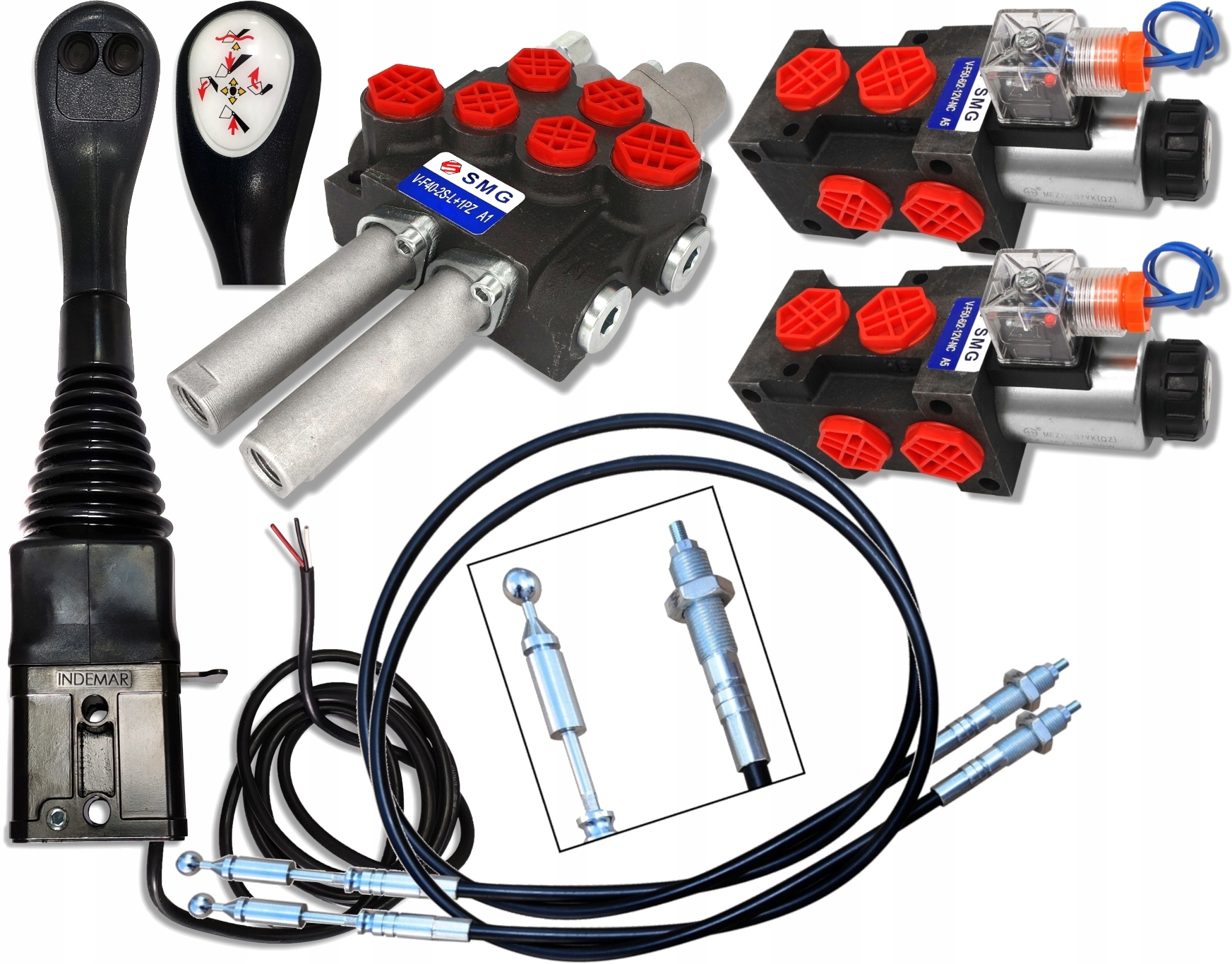

4-piece hydraulic set 40 l/min for TURA with floating part and lock for TURA floating
Final price plus shipping according to § 19 UStG without VAT ID
Payment in advance · 3% discount
Payment processing in advance 90 days buyer protectionIf you choose the advance payment method, you will receive an order confirmation with our account details within 1 to 5 hours (Monday to Sunday) after completing the purchase.
Processing 1-5 business days after payment · Real-time transfer 24/7
Shipping from receipt of payment: approx. 3-5 working days
Product information
Technische Daten
- Composition of the kit
- Ball joystick with 2 buttons 2x Bowden cable 2-part hydraulic distributor 40 l/min - floating section + latch 2x solenoid valve - divider 6/2 12V 50L/min The set is perfect for hydraulically powered machines and devices. It ensures effective control of two sections on TUR front loaders (frame elevation and bucket tilt) and two additional sections at the push of a button. The set offers many advantages that affect the dynamic, fast and safe control of the machine. It can be used in agriculture, horticulture, forestry and construction. It is suitable for use in: agricultural machinery, tractors, sprayers, cyclops, HDS loaders, construction machinery, loaders, excavators, sweepers, industrial machinery and others. High-quality monoblock distributor in parallel arrangement with floating (absorbing) chamber. It features a compact design, stable operation and high versatility. This allows you to control two double-acting or (after closing one of the connections) single-acting actuators. A series connection to the existing system is possible (pressure sleeve required). Control from the cabin with cables and joystick.!ATTENTION! In a particular distributor, the section with a lock is only in a section with a FLOATING FUNCTION The universal distributor is used in various types of machines, such as: Cyclopie Tury Loaders Plows Forklifts and many more Three-stage slider (1 – 0 – 2) with lock with lock, i.e. h. it holds the position in the working position independently Position 0 Neutral (joystick is vertical - the cable is loose) the piston rod of the actuator is stationary - the oil flows to the overflow. Working position 1 (joystick diagonally forward) The piston rod of the cylinder extends. Working position 2 (joystick tilted backwards) The cylinder piston rod retracts. Three-position slider (1 - 0 - 2) jumps back to position 0 by itself. Neutral (joystick is vertical - the cable is loose) the piston rod of the actuator is stationary - the oil flows to the overflow. Working position 1 (joystick diagonally forward) The piston rod of the cylinder extends. Working position 2 (joystick tilted backwards) The cylinder piston rod retracts. Connection: Power (P) BSP 1/2'' Return (T) BSP 1/2'' Output for 3/8'' BSP sections Connection 1/2" BSP Technical specifications: Oil flow: 0 - 40 l/min Maximum working pressure: 250 bar Permissible ambient temperature: -40 ℃ to +60 ℃ Permissible oil temperature: -15 ℃ to +80 ℃ Equipped with a safety valve. This solenoid valve is an ideal solution when the hydraulic distributor used (to control the actuator) does not have an additional section to control another actuator. Used for hydraulic control, most commonly with a 2-piece distributor, such as grab, crocodile, etc. Series connection is possible Operation and high versatility Application: The distributor is perfect for hydraulically driven machines and equipment. It can be used in agriculture, horticulture, forestry and construction. Example application of the solenoid valve, controlled by a section in the distributor. Thanks to this (by means of an electrical pulse caused by the “P” key) we can control two independent double-acting actuators. This button is usually located on the control element, i.e. a lever or joystick. It should be noted that it is not possible to control two actuators at the same time. Technical data: Gwinty (BSP): 1/2" Maximum oil flow: 50 l/min Voltage: 12V Maximum working pressure: 315 bar Permissible ambient temperature: -40 ℃ to +60 ℃ Permissible oil temperature: -15 ℃ to +80 ℃
Login
Kunden kauften auch
Often ordered together - matching this article
Polish double-acting hydraulic cylinder with a stroke of 300 mm + assembly [8807] Producer: Skraw-Met Used in agriculture and special equipment...
Polish double-acting hydraulic cylinder with a stroke of 250 mm + assembly [8806] Producer: Skraw-Met Used in agriculture and special equipment...

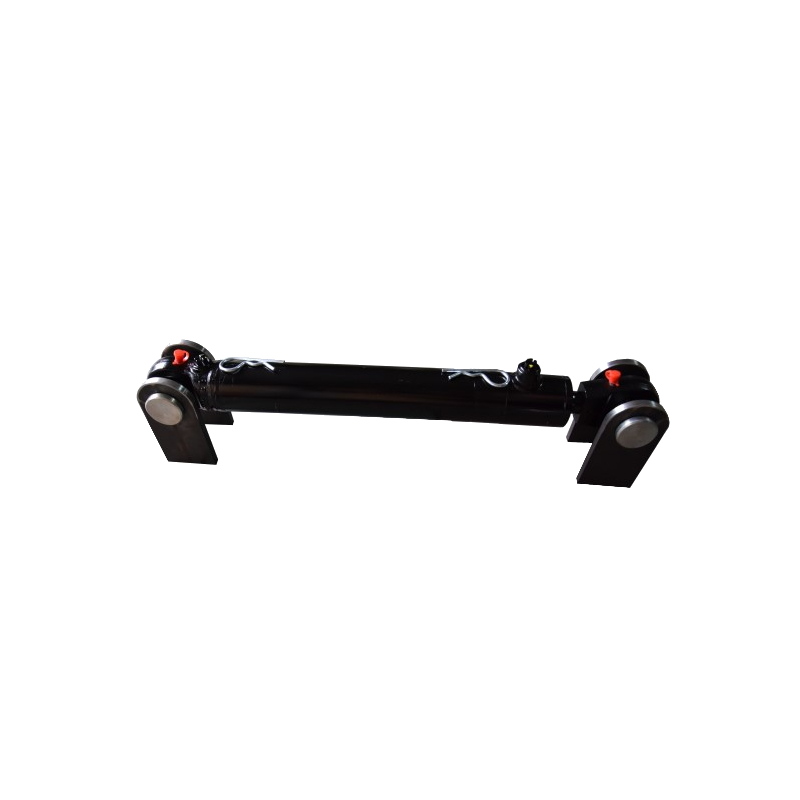

Polish double-acting hydraulic cylinder with a stroke of 200 mm + assembly [8805] Producer: Skraw-Met Used in agriculture and special equipment...

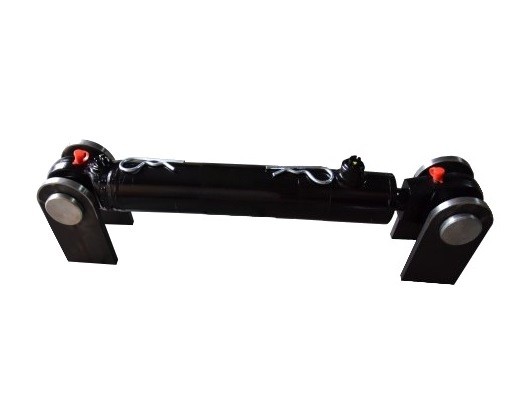

Polish double-acting hydraulic cylinder with a stroke of 600 mm + assembly [8804] Producer: Skraw-Met Used in agriculture and special equipment...
